bus of ram

[maz1141]

Hello , Bus 667 represents the amount of RAM on my Tablet Meyer in 1033 if it is the actual value of real despair how to mount Tablet



[waterhead]

I'm not exactly sure what you are asking, but the reference to 'Tablet Meyer' is sure to throw everyone off. Is this translated into English from Arabic? What is 'Tablet Meyer"?

I believe that you are asking how to mount the tablet on a PC. With a typical Android tablet, you would mount its internal ROM memory (not RAM) using a USB cable hooked to the PC. This tablet is not like that, and I don't believe you can mount it using a USB cable. If you want to share files, you may need to copy then to a microSD card or USB thumb drive.

If I am incorrect, I hope someone will correct me.



[maz1141]

hello ,



[waterhead]

I'm do not know where you get the 1033 number from. My tablet is not a Viewpad, but an Azpen X1. It uses DDR3 1333 (PC3 10600) laptop memory, like this:

Newegg.com - Rendition by Crucial 2GB 204-Pin DDR3 SO-DIMM DDR3 1333 (PC3 10600) Laptop Memory Model RM25664BC1339A

That is RAM memory that is used by programs to store temporary data. This is not accessable to the user.



[maz1141]

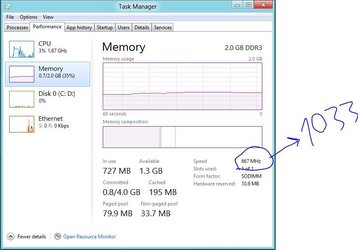

Hello,sarry,how windows detect ram ( speed= 1333 no667)



[waterhead]

It seems since the RAM is DDR (Double Data Rate), you need to multiply the speed detected by two to get the actual frequency:

667 x 2 = 1334

[Solved] DDR3 1333MHZ runs at 667mhz? - Memory - Motherboards-Memory

That was a good question. I didn't know about that, until now.



[waterhead]

I just upgraded my tablet to 2GB of RAM. I then ran the Linux comand dmidecode to output the memory data:

sudo /usr/sbin/dmidecode --type memory

# dmidecode 2.11
SMBIOS 2.6 present.

Handle 0x0007, DMI type 5, 20 bytes
Memory Controller Information
    Error Detecting Method: 64-bit ECC
    Error Correcting Capabilities:
        None
    Supported Interleave: One-way Interleave
    Current Interleave: One-way Interleave
    Maximum Memory Module Size: 4096 MB
    Maximum Total Memory Size: 8192 MB
    Supported Speeds:
        Other
    Supported Memory Types:
        DIMM
        SDRAM
    Memory Module Voltage: 3.3 V
    Associated Memory Slots: 2
        0x0008
        0x0009
    Enabled Error Correcting Capabilities:
        None

Handle 0x0008, DMI type 6, 12 bytes
Memory Module Information
    Socket Designation: DIMM0
    Bank Connections: 0 1
    Current Speed: Unknown
    Type: DIMM SDRAM
    Installed Size: 2048 MB (Single-bank Connection)
    Enabled Size: 2048 MB (Single-bank Connection)
    Error Status: OK

Handle 0x0009, DMI type 6, 12 bytes
Memory Module Information
    Socket Designation: DIMM1
    Bank Connections: 2 3
    Current Speed: Unknown
    Type: DIMM SDRAM
    Installed Size: Not Installed
    Enabled Size: Not Installed
    Error Status: OK

Handle 0x000D, DMI type 16, 15 bytes
Physical Memory Array
    Location: System Board Or Motherboard
    Use: System Memory
    Error Correction Type: None
    Maximum Capacity: 2 GB
    Error Information Handle: Not Provided
    Number Of Devices: 2

Handle 0x000F, DMI type 17, 28 bytes
Memory Device
    Array Handle: 0x000D
    Error Information Handle: Not Provided
    Total Width: 64 bits
    Data Width: 64 bits
    Size: 2048 MB
    Form Factor: SODIMM
    Set: None
    Locator: DIMM0
    Bank Locator: BANK0
    Type: DDR3
    Type Detail: Synchronous
    Speed: 667 MHz
    Manufacturer: Manufacturer00
    Serial Number: SerNum00
    Asset Tag: AssetTagNum0
    Part Number: ModulePartNumber00
    Rank: Unknown

Handle 0x0011, DMI type 17, 28 bytes
Memory Device
    Array Handle: 0x000D
    Error Information Handle: Not Provided
    Total Width: Unknown
    Data Width: Unknown
    Size: No Module Installed
    Form Factor: DIMM
    Set: None
    Locator: DIMM1
    Bank Locator: BANK1
    Type: Unknown
    Type Detail: Unknown
    Speed: Unknown
    Manufacturer: Manufacturer01
    Serial Number: SerNum01
    Asset Tag: AssetTagNum1
    Part Number: ModulePartNumber01
    Rank: Unknown

What I found interesting is that it reports 2 memory banks available, each with a memory capacity of 4096 MB (4 GB). Of course there is only 1 memory slot (bank) available. But it was always reported that these tablets could only take 2 GB of RAM, max.

EDIT: It does say the 'memory array' has a max capacity of 2GB RAM.
