Disgo 6000 2.2 Android Debricking Collaberation

Discussion in 'Sylvania Tablets' started by Elitism, Jul 25, 2011.

  1. Elitism

    Elitism Member

    Joined:
    Jul 24, 2011
    Messages:
    7
    Likes Received:
    1
    Trophy Points:
    62
    Tablet / Device:
    Disgo 6000 2.2
    I have recently bricked my disgo 6000 2.2 Android tablet and i'm willing to sacrafice the board in effort of debricking it.

    During this post it would be wise to collaberate on a method for ressurecting this device from brick back to its normal state..

    I've took apart the device and i've stripped the battery and i've taken some pictures of the main board so this is our starting point.

    The first thing which needs to be addressed is the chip we need to desodder to manually reburn the bootloader using a serial or paralell port.

    Here are some images of the board:
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    Once we have identified the chip which needs to be desodders i will get onto it immediately, and if anyone has any information for what i would need to reflash the chip please post it here.

    I will be awaiting further information, if we can do this then i will build a tutorial for unfortunate disgo 6000 owners who have bricked their tablet.

    • Like Like x 2
  2. Rrok007

    Rrok007 Member

    Joined:
    Nov 21, 2010
    Messages:
    182
    Likes Received:
    11
    Trophy Points:
    87
    Location:
    NULL
    I could have sworn other pictures in a different thread show a InfoTMIC chip somewhere near the bottom of the board. between the output/usb jacks and the connector for the touch screen

  3. cfrockit

    cfrockit Senior Member

    Joined:
    Dec 26, 2010
    Messages:
    627
    Likes Received:
    190
    Trophy Points:
    132
    Tablet / Device:
    Sylvania SYNET7LP
    There are more general internal pictures and information posted in the Sticky thread - http://www.androidtablets.net/forum...resources-synet7lp-sytabex7-disgo-6000-a.html

    Additionally, there are detailed reference documents, for the Sylvania tablet, posted at the FCC site. Both the Disgo and Sylvania share many of the same characteristics so these documents should shed some light on the inter workings.

    Code:
    [B]OET Exhibits List[/B]

                                                16 Matches found for FCC ID 'XJN-SYPID7901'
        View Attachment     Exhibit Type             Date Submitted to FCC     Display Type     Date Available
        Block Diagram
        Letter of agency - Cover Letter(s)
        External Photos
        Label Artwork and Location - ID Label/Location Info
        Internal Photos
        Technical Description - Operational Description
        RF Safety - RF Exposure Info
        Circuit Diagram - Schematics
        Test Report
        6 dB Bandwidth Plot - Test Report
        Maximum Power Density Plot - Test Report
        Out Band Antenna Conducted Emission Plot - Test Report
        Bandedge Plot - Test Report
        Radiated Emission - Test Setup Photos
        Conducted Emission - Test Setup Photos
        User Manual

    Looking for Serial Flash Memory 8 pin connector

    What are the 8 pin connector chip's labeled? Can you identify the one's closest to the speaker connection?

    The clearly identified they all power related.

    APM4953 - Power Management
    RT### are Richtek Synchronous Step-Down Regulator

    Samsung Nand Flash K9G8G08UOM-PCBO 1GB - datasheet view, download pdf

    Last edited: Jul 26, 2011
  4. Elitism

    Elitism Member

    Joined:
    Jul 24, 2011
    Messages:
    7
    Likes Received:
    1
    Trophy Points:
    62
    Tablet / Device:
    Disgo 6000 2.2

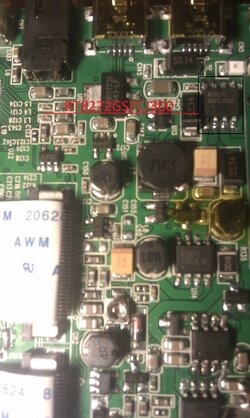

    $DISGO  2.jpg

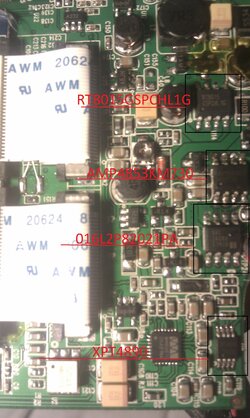

    $DISGO CHIPS.jpg

    There are no other 8 pin connected chips.

  5. cfrockit

    cfrockit Senior Member

    Joined:
    Dec 26, 2010
    Messages:
    627
    Likes Received:
    190
    Trophy Points:
    132
    Tablet / Device:
    Sylvania SYNET7LP
    Last edited: Jul 27, 2011
  6. Elitism

    Elitism Member

    Joined:
    Jul 24, 2011
    Messages:
    7
    Likes Received:
    1
    Trophy Points:
    62
    Tablet / Device:
    Disgo 6000 2.2
    016l2
    p8202
    1pa

  7. cfrockit

    cfrockit Senior Member

    Joined:
    Dec 26, 2010
    Messages:
    627
    Likes Received:
    190
    Trophy Points:
    132
    Tablet / Device:
    Sylvania SYNET7LP
  8. fan80

    fan80 Member

    Joined:
    Sep 8, 2011
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    60
    Location:
    europe
    Tablet / Device:
    SYNET7LP
    i looked at my bricked sylvania synet7lp it looks the same board and chips. So now i have to found manual on 016l2 p8202 1pa? Or can help me somebody to identity chips legs by the photos of board?
