File system structure - Info for investigation of Recovery - Bootable SD Card

Discussion in 'Sylvania Tablets' started by cfrockit, Mar 15, 2011.

  1. cfrockit
    Offline

    cfrockit Member

    Joined:
    Dec 26, 2010
    Messages:
    627
    Likes Received:
    189
    Trophy Points:
    43
    Tablet / Device:
    Sylvania SYNET7LP
    Work in progress to find a Recovery image to install with a Bootable SD Card

    Update -
    See How to manually update SYNET7LP/SYTABEX7 to Android 2.2 "Froyo"

    If this seems simplistic it probably is because of my limited knowledge. I am learning as I go and any assistance is appreciated. There are other forums devoted to development but this site has the most participation related to this specific device. In reviewing many many sources I have made some discoveries regarding this tablet since it has a InfoTM CPU as does the Flytouch II, WOWpad, SuperPAD, Mid Tablet PC, ZT-180, and the disgo Tablet 6000.

    The tablet has several devices which hold different parts of the file system. These can be identified using these commands.

    Code:
    C:\adb shell
    # cat proc/mtd

    dev:    size   erasesize  name
     mtd0: 00200000 00080000 "ramdisk"
     mtd1: 00600000 00080000 "kernel"
     mtd2: 08000000 00080000 "resv"
     mtd3: 0c000000 00080000 "system"
     mtd4: 3d800000 00080000 "userdata"
     mtd5: 04000000 00080000 "cache"
     mtd6: 1ff00000 00080000 "Local-disk"
     mtd7: 00100000 00080000 "panic"
    In reviewing a firmware update for another InfoTM device I found this description of the file system.

    Code:
    #[alias]     [device]              [device2]           [partition_name]  [mount_point] [file_system]
     BOOT:       NULL                  NULL                boot              NULL          raw
     KERNEL:     /dev/block/mtdblock0  NULL                kernel            NULL          raw
     RAMDISK:    /dev/block/mtdblock1  NULL                ramdisk           NULL          raw
     RECOVERY:   /dev/block/mtdblock2  NULL                recovery          NULL          raw
     SYSTEM:     /dev/block/mtdblock3  NULL                system            /system       yaffs2
     DATA:       /dev/block/mtdblock4  NULL                userdata          /data         yaffs2
     CACHE:      /dev/block/mtdblock5  NULL                cache             /cache        yaffs2
     LOCAL:      /dev/block/mtdblock6  NULL                local             /local        yaffs2
     SDCARD:     /dev/block/mmcblk0p1  /dev/block/mmcblk0  NULL              /sdcard       vfat
     TMP:        NULL                  NULL                NULL              /tmp          tmpfs
     PACKAGE:    NULL                  NULL                NULL              NULL          package
    This now explains why attempts using unyaff to open the image file created by dumping mtd2 have failed.

    Using this HOWTO: Unpack, Edit, and Re-Pack Boot Images

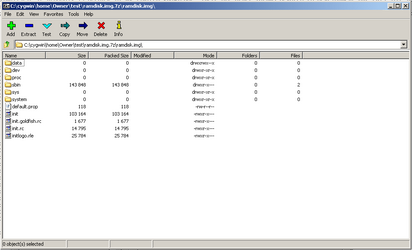

    The extracted ramdisk image from the Sylvania reveals the following file structure which will look familiar to anyone who's examined their device layout (image below). So we know that device mtd0 is in fact ramdisk.



    In this post Firmware update 1480, instructions and download link, from a developers forum, they provide a link to a firmware of a similar device which includes instructions and utilities to create a bootable SD.

    Using the provided instructions and utilities from the downloaded file, I was able to create a SD card that boots!

    A 2 GB microSD was re-sized to 705 MB and the included "aben.start sector.001" file was incorporated into the "Clone Disk". It was then formatted FAT 32 with Format options - Quick Format checked. I copied only the uImage and userdata.img files to the card and inserted in tablet. Powering on the following was displayed.
    Booting from SD ...

    Burn file system finished

    Take off SD and reboot
    .

    Nothing was changed or burned in the process above. This was only a test for creating a bootable SD card that will work in this device once we have the correct image files. The test process DID NOT affect the original ability to do a complete factory reset.

    This as far as I have been able to take this effort. Any further insight to which of the images pulled from the Sylvania, if any, can be used in place of the images provided by in the example from the other device would allow creation of a working SD recovery for the Sylvania. A complete victory would be to find the magic combination which will all those missing an Recovery to successfully recover from SD.

    Where do we go from here to find/create the correct files for the Sylvania?
    Last edited: Apr 25, 2011
    • Like Like x 2
  2. ImagineThat
    Offline

    ImagineThat Junior Member

    Joined:
    Dec 2, 2010
    Messages:
    85
    Likes Received:
    16
    Trophy Points:
    8
    Location:
    Michigan
    Tablet / Device:
    Sylvania SYNET7LP
    cfrockit - right on! I just installed ubuntu linux on a spare PC and have made it to the point of unpacking the mtd0 image, which is in fact the ramdisk. I'm curious if anyone heavy into development would be able to pick apart the init files to tell us anything useful about this Sylvania tab.

    I followed the instructions at HOWTO: Unpack, Edit, and Re-Pack Boot Images - Android Wiki also, but ended up figuring out that the mtd0 image was a uImage so you need to use a hex editor to strip off the u-boot header (the 64 bytes before 1F 8B). The remaining file can be extracted with
    Code:
    gunzip -c ../mtd0a.img | cpio -i
    That's slightly different than the earlier versions of Android boot images that had a 2k header, kernal, and then compressed ramdisk, which it appears the howto was written for.

    I found http://buffalo.nas-central.org/wiki/How_to_Extract_an_uImage useful, but I didn't use their script.
    Last edited: Mar 15, 2011
  3. ImagineThat
    Offline

    ImagineThat Junior Member

    Joined:
    Dec 2, 2010
    Messages:
    85
    Likes Received:
    16
    Trophy Points:
    8
    Location:
    Michigan
    Tablet / Device:
    Sylvania SYNET7LP
    I've dumped all 8 partition images and cannot unpack any of the ones that appear to be yaffs2 (like system or userdata). I tried unyaffs on all 8 for the heck of it, with no results.

    that's where I'm stuck.

    Nice work with the SD!
  4. st0ne
    Offline

    st0ne Junior Member

    Joined:
    Mar 1, 2011
    Messages:
    209
    Likes Received:
    10
    Trophy Points:
    18
    Location:
    Las Vegas, NV
    Tablet / Device:
    Sylvania 7" Mini Tablet Express

    Nice.... My question is this: Using just those 2 files... what DID it do to your system? Did it wipe out your apps and boot to the screen calibrate tool? I wonder if using just those 2 files will reset my internal memory?... hummm.... i might have to try...
    The files you used were extracted from a SYNET7LP right? Or was it a SYTABEX7? And where did you put them on the SD? in the android folder like the insts in the link say? Or in the root?
    Can you post those files? I would like to use files I know came from the ex7 or the LP7 rather than the ones floating around from others...
    Nice work! Thanks again!
    Last edited: Mar 16, 2011
  5. giveen
    Offline

    giveen Junior Member

    Joined:
    Jan 11, 2011
    Messages:
    174
    Likes Received:
    19
    Trophy Points:
    18
    Location:
    Caldwell, ID
    Tablet / Device:
    Dell Streak 7, Google Nexus 7 ,Sylvania SYNET7LP
    Great job, cfrockit!
  6. st0ne
    Offline

    st0ne Junior Member

    Joined:
    Mar 1, 2011
    Messages:
    209
    Likes Received:
    10
    Trophy Points:
    18
    Location:
    Las Vegas, NV
    Tablet / Device:
    Sylvania 7" Mini Tablet Express
    OK! After giving up and using a different SD card, the old I had was 2 gig and was used in an old phone and was throwing me errors.
    I now have a 4 gig SD and it cloned and formatted with out error. I followed the dirs you posted. with the "android" folder, and it worked the first time out of the gate!
    So when I put in the new SD and boot it goes through the burning images.
    When it's done it tells me to pop out the SD and reboot. I do, and first get a planet/space logo, then goes to a white screen. And Stays there.

    I am at the point were I need someone with a SYTABEX7 to ADB the files off of it and put together a folder like the "android" one!


    I am now going to try every combo of IMG file I have here and see what I can get.
  7. cfrockit
    Offline

    cfrockit Member

    Joined:
    Dec 26, 2010
    Messages:
    627
    Likes Received:
    189
    Trophy Points:
    43
    Tablet / Device:
    Sylvania SYNET7LP
    This must be the Flytouch firmware boot splash image where our is the Sylvania animation so you've proved something burned. Is the any different reaction when applying the three finger factory reset?

    As you are aware the images for the SYNET7LP are here http://www.androidtablets.net/forum...g-clockwork-recovery-tablets-2.html#post31981 no one has offered up the EX7 dumps yet.


    One thought - the file names might need to match what was in the example folder.

    Good luck
  8. st0ne
    Offline

    st0ne Junior Member

    Joined:
    Mar 1, 2011
    Messages:
    209
    Likes Received:
    10
    Trophy Points:
    18
    Location:
    Las Vegas, NV
    Tablet / Device:
    Sylvania 7" Mini Tablet Express
    All of the links in that post lead to Dropbox 404 error file not found. So I don't have access to them. if you have them can you post them? Or anyone who got them before they got "lost"?

    I am seeing around the net different file names for things. I have seen uImage zImage ramdisk.img recovery.img recovery_rd.img (that one looks like it's the ramdisk renamed or it's the RD AND the recovery data) I don't know what files the SY tabs need to flash.
    The files that bricked my tab were Ramdisk.img/recovery.img/system.img/userdata.img and uImage with no file extension.
    From the prompts on the flash screen the things that were updated were the file system and the system. I didn't see any reference to userdata or recovery.
    I can not get either of my SYTABEX7's to connect to my PC with ADB. I can't seem to find the right drivers for WIN7 I think. I have tried all 3 of the ADB drivers: theAdb the bootloader and the composite drivers all fail to allow ADB to see my devices.
  9. ImagineThat
    Offline

    ImagineThat Junior Member

    Joined:
    Dec 2, 2010
    Messages:
    85
    Likes Received:
    16
    Trophy Points:
    8
    Location:
    Michigan
    Tablet / Device:
    Sylvania SYNET7LP
    I have all my images saved, I can work on posting them to some file sharing website, any ideas on a good FREE one?

    I understand your confusion. The images for the Sylvania are named as show up with you run "cat /proc/mtd", as cfrockit has shown in the first post here. Every device seems to name thinsg a little different. Here are some pointers to relate all these names to the Sylvania (anybody corret me if I'm wrong):

    mtd0 is named "ramdisk" and is the boot image/partition. It is a uImage file.

    mtd2 is most likely the recovery, but is named "resv" on this device for some reason. I haven't figured out what file type it is, I assumed yaffs2 but possibly it's some raw format??

    kernal, system, userdata are all what they say, and are similair names as other devices. Kernal is a uImage I believe; system and userdata appear to be yaffs2 but I cannot seem to unpack them.


    The only way that we've been able to get the SYNET7LP's to connect to ADB is through wifi, not through a direct USB connection. The instructions are floating around, I'll look for them and edit my post. Although, you need a working tablet with a wifi conenction for this to work, which is the big disadvantage of this over a direct USB connection.
  10. st0ne
    Offline

    st0ne Junior Member

    Joined:
    Mar 1, 2011
    Messages:
    209
    Likes Received:
    10
    Trophy Points:
    18
    Location:
    Las Vegas, NV
    Tablet / Device:
    Sylvania 7" Mini Tablet Express
    Yes the one EX7 is bricked right now from me flashing an android system that wasn't compatible. I have another one that I might have to set up with ADB WiFi... I ran into my 0.00b free mem on my bricked tab BEFORE I got to trying it WiFi.
    My goal here is to get all the stock system files off the working one and flashing it to the bricked one with the SD....
    Am I wishing on a star here?
  11. ImagineThat
    Offline

    ImagineThat Junior Member

    Joined:
    Dec 2, 2010
    Messages:
    85
    Likes Received:
    16
    Trophy Points:
    8
    Location:
    Michigan
    Tablet / Device:
    Sylvania SYNET7LP
    That sounds pretty logical to me. You can get all the partition images off your working tablet without using adb, if you wish:
    1) using a terminal emulator (there are some in the slideme market, or search online) type "cat /proc/mtd". This will list all the partitions. They may be different on yours.
    2) type "cat /dev/mtd/mtd# > /sdcard/NAME.img" replace # with the number of the partition, and NAME with whatever you want to call your file. This will place an image onto the root of your sd card. Note that you will need about 2 GB free on the card to copy all the partition images.

    Now you'll have each one backed up. As far as getting them onto your broken unit, you'll have to experiment with loading from the sd card as discussed above. If you're able to get to a command prompt or terminal emulator you can try the command "flash_image boot /sdcard/NAME.img" where boot is the name of the partition you're flashing (get from the cat /proc/mtd command) and NAME.img is your image file on the sd card.
  12. cfrockit
    Offline

    cfrockit Member

    Joined:
    Dec 26, 2010
    Messages:
    627
    Likes Received:
    189
    Trophy Points:
    43
    Tablet / Device:
    Sylvania SYNET7LP
    The most recent update file that was downloaded but never updated anything has been successfully Burned by SD to a SYNET7LP hwver=11.2.0.6.

    Here is the new Home screen!


    As suspected the SD card needs a specific format to be recognized upon boot. Here is view of the card partition.


    Details on how to create the bootable SD card so the update can be burned will follow once the excitement subsides!!!!
  13. st0ne
    Offline

    st0ne Junior Member

    Joined:
    Mar 1, 2011
    Messages:
    209
    Likes Received:
    10
    Trophy Points:
    18
    Location:
    Las Vegas, NV
    Tablet / Device:
    Sylvania 7" Mini Tablet Express
    I got the tool. and it want's an IUW file (*.ius) I don't have this...
    and there was no link to the update file the the threads you linked.
  14. st0ne
    Offline

    st0ne Junior Member

    Joined:
    Mar 1, 2011
    Messages:
    209
    Likes Received:
    10
    Trophy Points:
    18
    Location:
    Las Vegas, NV
    Tablet / Device:
    Sylvania 7" Mini Tablet Express
  15. st0ne
    Offline

    st0ne Junior Member

    Joined:
    Mar 1, 2011
    Messages:
    209
    Likes Received:
    10
    Trophy Points:
    18
    Location:
    Las Vegas, NV
    Tablet / Device:
    Sylvania 7" Mini Tablet Express
    I can't get the burn tool to SEE the SD card... the dropdown list is empty....
  16. cfrockit
    Offline

    cfrockit Member

    Joined:
    Dec 26, 2010
    Messages:
    627
    Likes Received:
    189
    Trophy Points:
    43
    Tablet / Device:
    Sylvania SYNET7LP
    The card must be clear of all existing Partitions.

    The old partition needs to be deleted.

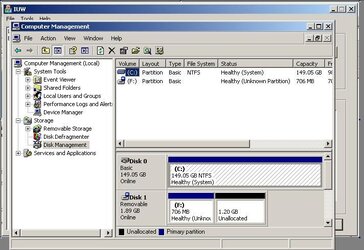

    Using XP, click Start > right click My Computer > left click Manage

    Under Storage click on Disk Management

    In the displayed window, Click on the SD card first partition (down in the bottom right section of the window) and you should get an X on the tool bar (Under the word Help on the menu bar) which is Delete. Delete the partition so the card is blank, also no need to format either. Try again.

    If you are unable to delete the Partition on the microSD card, search the Web there are many instructions describing tools/utilities on how to modify/delete/create partitions on Removable Media (USB, SD, external Hard Drives).

    Thanks for the assistance, this will all go in the post for the rest of the EX users if you get this to work. If you do, can you also try the three finger reset to see if that gets fixed as well.
  17. bigwooly
    Offline

    bigwooly Junior Member

    Joined:
    Nov 24, 2010
    Messages:
    124
    Likes Received:
    8
    Trophy Points:
    18
    Location:
    NULL
    i deleted them off my dropbox cause i needed the space..... doh lemme see if i can find the harddrive they were stored on lol
  18. st0ne
    Offline

    st0ne Junior Member

    Joined:
    Mar 1, 2011
    Messages:
    209
    Likes Received:
    10
    Trophy Points:
    18
    Location:
    Las Vegas, NV
    Tablet / Device:
    Sylvania 7" Mini Tablet Express
    Thanx you! cfrockit has found a way, and I have confirmed it works, to get a bootable SD card! so I now want all kinds of files to rip apart so I can put my Frankenstein Tablet together! Muahahahaha! :)
  19. pdkimball
    Offline

    pdkimball Junior Member

    Joined:
    Oct 30, 2011
    Messages:
    14
    Likes Received:
    2
    Trophy Points:
    3
    Tablet / Device:
    Sylvania SYTABBL7-5775
    Hello all, new to the forum and the sylvania tablet. I have spent a few weeks reading through the forums and instructions. Have returned to exchange twice and finally just purchased another one. So, now I have two SYTABEX7-2 "hwver" 11.2.3.1 purchased at Biglots, searched around for a couple that hadn't been tampered with already, not easy lol. As of right now, I have burned fresh images of all partitions out of the box named appropriately, as well as images after an update. Out of box is running DG2.2.1-7a3.b5 and update is running DG2.2.1-7a3.b5 - V2 for update-test. Both of these seem to be running pretty smooth. Flash player seems to be installed and netflix will open and play, but with extreme video lag. DG has confimed that the second version listed above is the most recen version running and another update fixing flash player support is to be released by end of this year! I will post a link a little later to download the images I burned with dd in emulator for anyone interested. A couple things I noticed while playing around and wonder if anyone has some insight?
    First- when I hooked my keyboard up and started pressing buttons to find out what they did, pressing F11 brings up ethernet settings? I had an ethernet to usb that I plugged into the adapter and the tab immediately shut off with no response to anything untill unplugged and was able to boot right back up unharmed. Tried hooking into router and pc direct with same result. Wonder if this could be used somehow to connect to pc? If it wouldn't shut down completely anyway, lol. Just a thought?
    Second - Now that I have all these images, I was thinking of trying to create a full .ius file with nthe editor. Anyone have an idea of what each partition should be added as? Editor gives choices of U0, UBOOT, RD, RD_, LK, NK, ADR_SYS, ADR_USER, ADR_NDISK, and ADR_AS. DG has different than usual names for their partitions making things a bit difficult to sort out. Anyone figure out what mtd7 "panic" is? Thinking this may be where to burn Tech's custom recovery? Or maybe it's just the logo and/or boot screen? I haven't pulled any of the files apart yet as I'm still learning as I go.

    Thanks for any help the forum can provide and I will upload the disk images to be of further assistance to the cause! :)

    PS- Tech's instructions said to do a custom burn to RECVRD, I haven't set up adb via wifi yet, can I or is this the only way I will be able to use custom burn with the inability to use usb connection? I assume that this would burn to either mtd7: "panic" or mtd2: "resv? OR flash_image? I know that I have succesfully burned one of the older beta's AND_AS file to "resv" with emulator and fixed the three finger reset, unfortunately I had not made an image of that partition to reflash rendering me with an older version and no file to fall back on. Hence the second return to the store, lol. Oops, lesson learned. This is why I burned all images before messing around this time and bought a second tablet! Thanks again for all who contribute. Once I get things sorted out I will post some instructions on flashing with the emulator as I had to go through quite a few different forums to get things rolling, would be nice to compile in one area.
  20. cfrockit
    Offline

    cfrockit Member

    Joined:
    Dec 26, 2010
    Messages:
    627
    Likes Received:
    189
    Trophy Points:
    43
    Tablet / Device:
    Sylvania SYNET7LP
    Welcome!
    You are extremely patient and persistent. Many of us who purchased the earlier versions of this tablet almost a year ago have had to learn patience the hard way while waiting for an "official" update to fix several ongoing issues.

    Looking forward to your image dumps.
    It's just sloppy coding. If you use the Search Forum feature you'll find a few posts where we identified a standalone application or shortcut to the Ethernet settings from another InfoTMIC device. There is NO ethernet hardware in this tablet but there is in other variations so they just left the code there but hid the menu entry.
    Take a look at vio's IusEditor posted in the Custom Rom thread. Also you'll find the partition layout from our attempt to port a recovery application. "Panic" is just a dump after crash.

    Code:
    cat /proc/mtd
    Great questions! adb won't allow you to burn it's either done with IUW.exe in expert mode or by creating a bootable SD card.

    Enjoy the learning process, this was my first tablet and having no Android experience just with the assistance of folks here, xda and Let me google that for you to search and research we gained a lot on insight that should get you well on your way to having a fun toy.
    Last edited: Nov 9, 2011
