Help Me to Find My Tablet

Discussion in 'Android Tablet Q&A' started by guru2006, Nov 14, 2012.

  1. guru2006
    Offline

    guru2006 Junior Member

    Joined:
    Oct 29, 2012
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    0
    Hello Everyone,

    I want someone to help me to find hardware configuration such as processor, memory, speed etc., of my tablet.

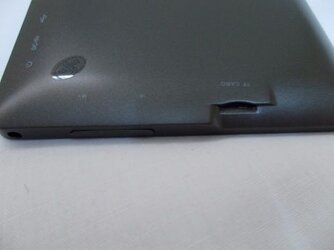

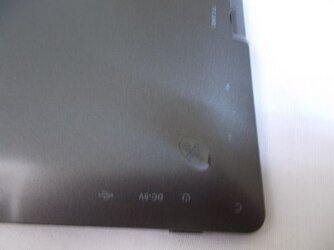

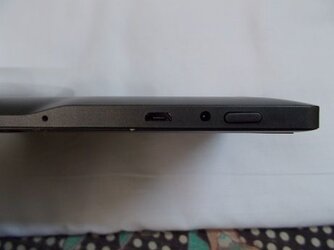

    Please refer to photos I attached for your kind refrence. And I noticed some specs (settings) on my tablet as below:

    7" screen SoftwinerEvb MID
    Front camera (only one front side)
    Android Version 4.04
    Baseband Version 1.5
    Kernel Version 3.0.8+ android3@Linux#27
    Build number
    nuclear_evb-eng 4.04 IMM76D 20120910 test-keys

    INTERNAL STORAGE (shown two different)
    total space 0.98GB and
    total space 1.72GB

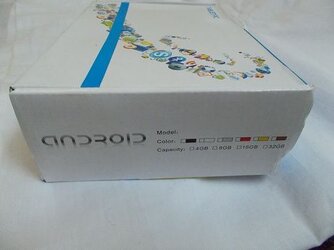

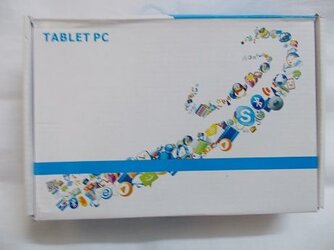

    But on box it is printed as 4GB (please see photo), may be packed in wrong box?

    Thank you

    Attached Files:

  2. Spider
    Online

    Spider Administrator Staff Member

    Joined:
    Mar 24, 2011
    Messages:
    13,652
    Likes Received:
    1,627
    Trophy Points:
    113
    Location:
    Chicago, IL
    Hi Guru, congratulations on your new tablet and welcome to the forum. I'm moving your thread to the Q&A section for you, where more people are likely to join the discussion and try to help you figure out what you have there. The storage figures are probably correct for a 4GB system, that includes the space taken up by the Android OS. Good luck!
  3. wsw243
    Offline

    wsw243 Junior Member

    Joined:
    Nov 22, 2012
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Pakistan
    Here is detailed spec of this tablet

    [TABLE]
    [TR]
    [TD]Mark[/TD]
    [TD]UBOX[/TD]
    [/TR]
    [TR]
    [TD]Model[/TD]
    [TD]A7[/TD]
    [/TR]
    [TR]
    [TD]Housing Material[/TD]
    [TD]Plastic[/TD]
    [/TR]
    [TR]
    [TD]Operating system[/TD]
    [TD]Android 4.0.4[/TD]
    [/TR]
    [TR]
    [TD]Processor type[/TD]
    [TD]Single Core[/TD]
    [/TR]
    [TR]
    [TD]Processor Model[/TD]
    [TD]BOXCHIP A13, Cortex A8[/TD]
    [/TR]
    [TR]
    [TD]Processor Speed[/TD]
    [TD]1.0GHz[/TD]
    [/TR]
    [TR]
    [TD]Random access memory[/TD]
    [TD]512MB[/TD]
    [/TR]
    [TR]
    [TD]Type of RAM[/TD]
    [TD]DDR2 SDRAM[/TD]
    [/TR]
    [TR]
    [TD]Capacity[/TD]
    [TD]4GB[/TD]
    [/TR]
    [TR]
    [TD]Memory Card Support[/TD]
    [TD]TF / Micro SD[/TD]
    [/TR]
    [TR]
    [TD]Max. memory cards[/TD]
    [TD]32 GB[/TD]
    [/TR]
    [TR]
    [TD]Additional features[/TD]
    [TD]G-Sensor, Camera[/TD]
    [/TR]
    [TR]
    [TD]Screen Size[/TD]
    [TD]7 Inch[/TD]
    [/TR]
    [TR]
    [TD]Resolution[/TD]
    [TD]800 x 480[/TD]
    [/TR]
    [TR]
    [TD]Screen capabilities[/TD]
    [TD]2-point touch screen[/TD]
    [/TR]
    [TR]
    [TD]Touch control[/TD]
    [TD]Capacitive screen[/TD]
    [/TR]
    [TR]
    [TD]Internet access[/TD]
    [TD]Wi-Fi, External 3G[/TD]
    [/TR]
    [TR]
    [TD]WiFi[/TD]
    [TD]802.11 b / g[/TD]
    [/TR]
    [TR]
    [TD]3G[/TD]
    [TD]Supports external 3G, WCDMA[/TD]
    [/TR]
    [TR]
    [TD]Bluetooth[/TD]
    [TD]No[/TD]
    [/TR]
    [TR]
    [TD]Audio Playback[/TD]
    [TD]MP3, WMA, MP2, OGG, AAC, M4A, MA4, FLAC, APE, 3GP, WAV[/TD]
    [/TR]
    [TR]
    [TD]Video Playback[/TD]
    [TD]AVI (H.264/DIVX/XVID), rm, rmvb, MKV (H.264/DIVX/XVID), WMV, MOV, MP4 (H.264/MPEG/DIVX/XVID), DAT (VCD format), VOB (DVD format), PMP, MPEG, MPG, FLV (H.263/H.264), ASF, TS, TP, 3GP, MPG[/TD]
    [/TR]
    [TR]
    [TD]Support for e-books[/TD]
    [TD]WORD, EXCEL, POWERPOINT, PDF, TXT[/TD]
    [/TR]
    [TR]
    [TD]View images[/TD]
    [TD]JPG, BMP, PNG, GIF[/TD]
    [/TR]
    [TR]
    [TD]Interface Languages[/TD]
    [TD]Afrikaans, Amharic, Indonesian, Catalan, Czech, Danish, German, English, Spanish, French, Croatian, Italian, Lithuanian, Latvian, Hungarian, Malay, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Slovenian, Finnish, Swedish, Swahili, Tagalog, Vietnamese, Turkish, Zulu, Greek, Bulgarian, Russian, Serbian, Ukrainian, Hebrew, Persian, Hindi, Arabic, Bengali, Thai, Korean, Japanese, Traditional Chinese, Simplified Chinese[/TD]
    [/TR]
    [TR]
    [TD]Front camera[/TD]
    [TD]300KP[/TD]
    [/TR]
    [TR]
    [TD]Posterior chamber[/TD]
    [TD]No[/TD]
    [/TR]
    [TR]
    [TD]Battery Type[/TD]
    [TD]Li-ion[/TD]
    [/TR]
    [TR]
    [TD]Battery voltage[/TD]
    [TD]3.7 V[/TD]
    [/TR]
    [TR]
    [TD]Battery capacity[/TD]
    [TD]1800 mAh[/TD]
    [/TR]
    [TR]
    [TD]Charging time[/TD]
    [TD]4 Hours[/TD]
    [/TR]
    [TR]
    [TD]In standby mode[/TD]
    [TD]10 Hours[/TD]
    [/TR]
    [TR]
    [TD]Operation time[/TD]
    [TD]6 Hours[/TD]
    [/TR]
    [TR]
    [TD]Input voltage[/TD]
    [TD]100 ~ 240V[/TD]
    [/TR]
    [TR]
    [TD]Dynamic[/TD]
    [TD]Built-in[/TD]
    [/TR]
    [TR]
    [TD]Microphone[/TD]
    [TD]Built-in[/TD]
    [/TR]
    [TR]
    [TD]Interface / connection ports[/TD]
    [TD]1 x DC jack, 1 x TF card slot, 1 x 3.5mm earphone jack, 1 x Micro USB port[/TD]
    [/TR]
    [TR]
    [TD]The manufacturer's warranty[/TD]
    [TD]12 Months excluding physical damages (see details in the characteristics of the goods)[/TD]
    [/TR]
    [TR]
    [TD]Trim[/TD]
    [TD]1 x Tablet PC[/TD]
    [/TR]
    [TR]
    [TD][/TD]
    [TD]1 x Power adapter (US plug/110cm-cable)[/TD]
    [/TR]
    [TR]
    [TD][/TD]
    [TD]1 x USB cable (72cm)[/TD]
    [/TR]
    [TR]
    [TD][/TD]
    [TD]1 x OTG cable (5cm)[/TD]
    [/TR]
    [TR]
    [TD][/TD]
    [TD]1 x English user manual[/TD]
    [/TR]
    [/TABLE]
  4. Boaty
    Offline

    Boaty Junior Member

    Joined:
    Dec 27, 2012
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    tn
    I have this same tablet. I have a problem though. My problem is that when I plug it into my computer it tells me to insert the disc that came with it. There was no disk. I have not had this problem with any of my families other tablets. Can someone tell me what to do do that I can upload stuff from my laptop to this device. Please help.
  5. anialater
    Offline

    anialater Junior Member

    Joined:
    Dec 29, 2012
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    aukland
    I have this exact tablet but it came in a white box, the charger doesn't fit properly luckiIy it still charges, the battery only lasts about 2hours,It is old by five days
  6. Boaty
    Offline

    Boaty Junior Member

    Joined:
    Dec 27, 2012
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    tn
    Did yours come with a disc to install it on your comp? Ive never known tablets to have to have these. Most you just plug in with USB and it auto installs.
  7. anialater
    Offline

    anialater Junior Member

    Joined:
    Dec 29, 2012
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    aukland
    nope sorry
  8. anialater
    Offline

    anialater Junior Member

    Joined:
    Dec 29, 2012
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    aukland
    Did you have it rooted? , if so please shows me where, thanks. ^_^
  9. Boaty
    Offline

    Boaty Junior Member

    Joined:
    Dec 27, 2012
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    tn
    No I dont have it rooted. Never had to do anything special to any of the other tablets we have so I had to look up what that even meant
  10. Boaty
    Offline

    Boaty Junior Member

    Joined:
    Dec 27, 2012
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    tn
    Any help with this would be HUGELY appreciated
  11. ron_b
    Offline

    ron_b Junior Member

    Joined:
    Feb 1, 2013
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    USA
    Looks just like mine, box and all, received last month. Build number is 20121211, though. Mine came rooted.
    As for specs, here is what is said about mine:
    http://www.focalprice.com/CE0127X/M...t_TFT_Touch_Screen_Android_403_Tablet_PC.html

    As for memory reported, the 4GB is split into system-used memory, "Internal storage" (0.98GB), and a psuedo-SD card (1.71GB), unfortunately labeled on this device also as "Internal Storage". Your real SD card ("TF card") is called "EXTSD".

    I can confirm about power plug and two hours operation. (It supposedly only has a 2000mAhr battery, smaller than many smartphones.)

    As for "upload stuff from my laptop to this device", try "wifi file transfer". I plugged in my first Android devices, but Wifi is so handy I never bother now.
    Last edited: Feb 4, 2013
  12. Boaty
    Offline

    Boaty Junior Member

    Joined:
    Dec 27, 2012
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    tn
    I give up on this thing. Im just gonna re-sell it on Ebay. I tried to download several e-readers and it keep giving me an error saying "Error retrieving information from the server" This this is horrible.
  13. Greasy
    Offline

    Greasy Junior Member

    Joined:
    Jan 11, 2013
    Messages:
    18
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Doncaster, England
    Never had a problem with mine when connecting to laptop (running Windows 8) .. have you tried a backup and restore on the tablet? System settings, Backup and reset, factory data reset ...
  14. AnthonyJ
    Offline

    AnthonyJ Junior Member

    Joined:
    Mar 2, 2013
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    lynnwood wa
    I have almost the same one min is a 7" touch srceen five point touch but i have no idea who made it or if i can up date the system and the model says softwinerevb ver is 4.1.1 and i was wondering if you know anything about mine and if i can update to jellybean or something other then what i am running
