Help with Android Powered CarPC

MrMEEE

Member
Sep 15, 2011
1
0
I have purchased a CarPC much like this one from China:

http://www.parkly.com.cn/Simplified/ProductView.asp?ID=148&SortID=146

All the "normal" functions (radio, calling, bluetooth, tv) are not android, but the GPS has been replaced with a Android 2.3 installation..

The problem here is that the Android installation is very minimal and does not include android market...

I would try to fix it myself, but i'm missing adb access.. Also, I can get into an update mode (recovery mode) but there are no physical buttons connected to the android system.. so I can't select anything, just getting the android icon with the triangle because no update exist..

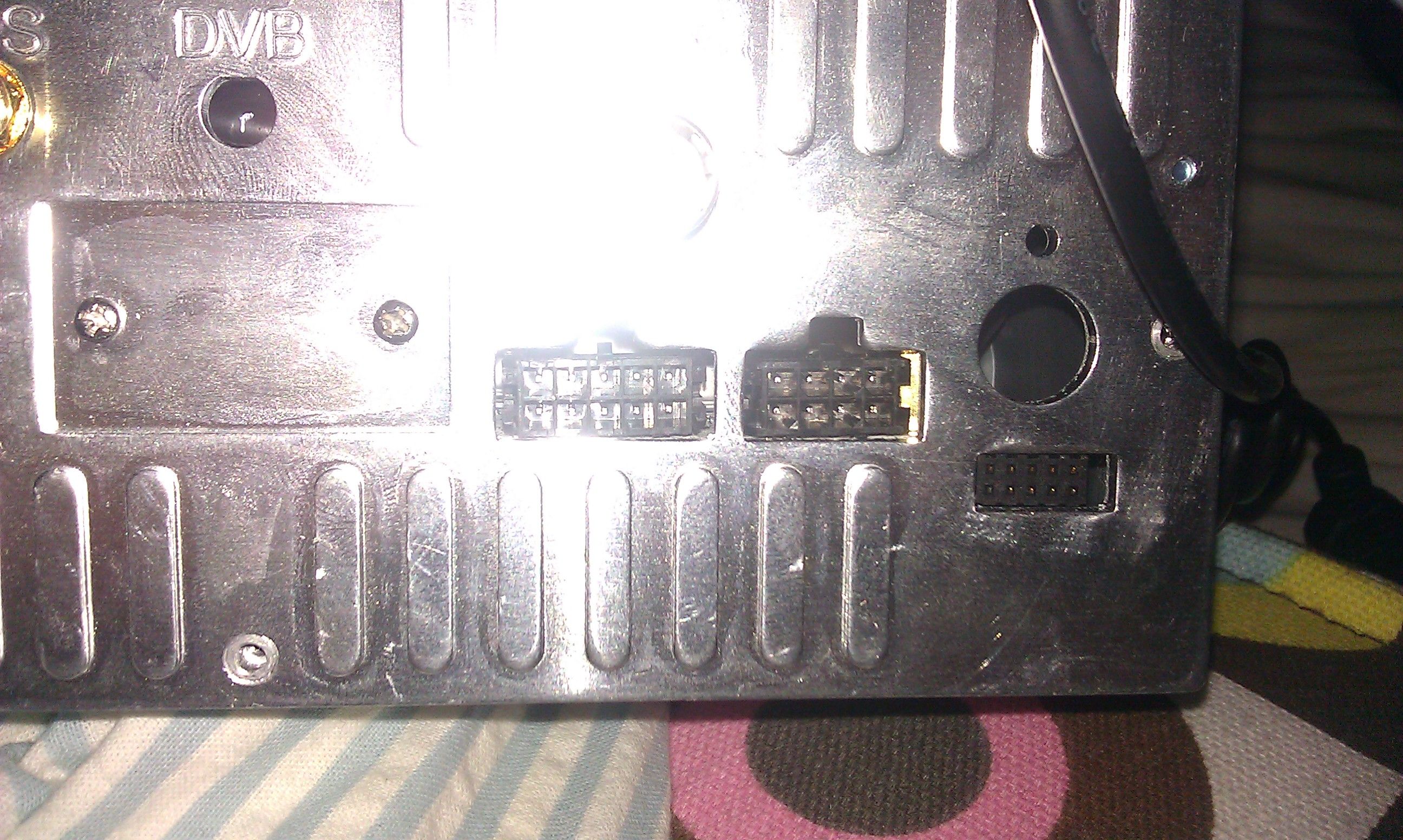

There is a usb plug on the back of the radio, which is normally use for a WIFI stick.. I have tried to connect a usb keyboard, which works fine in normal mode, but no effect in recovery mode..

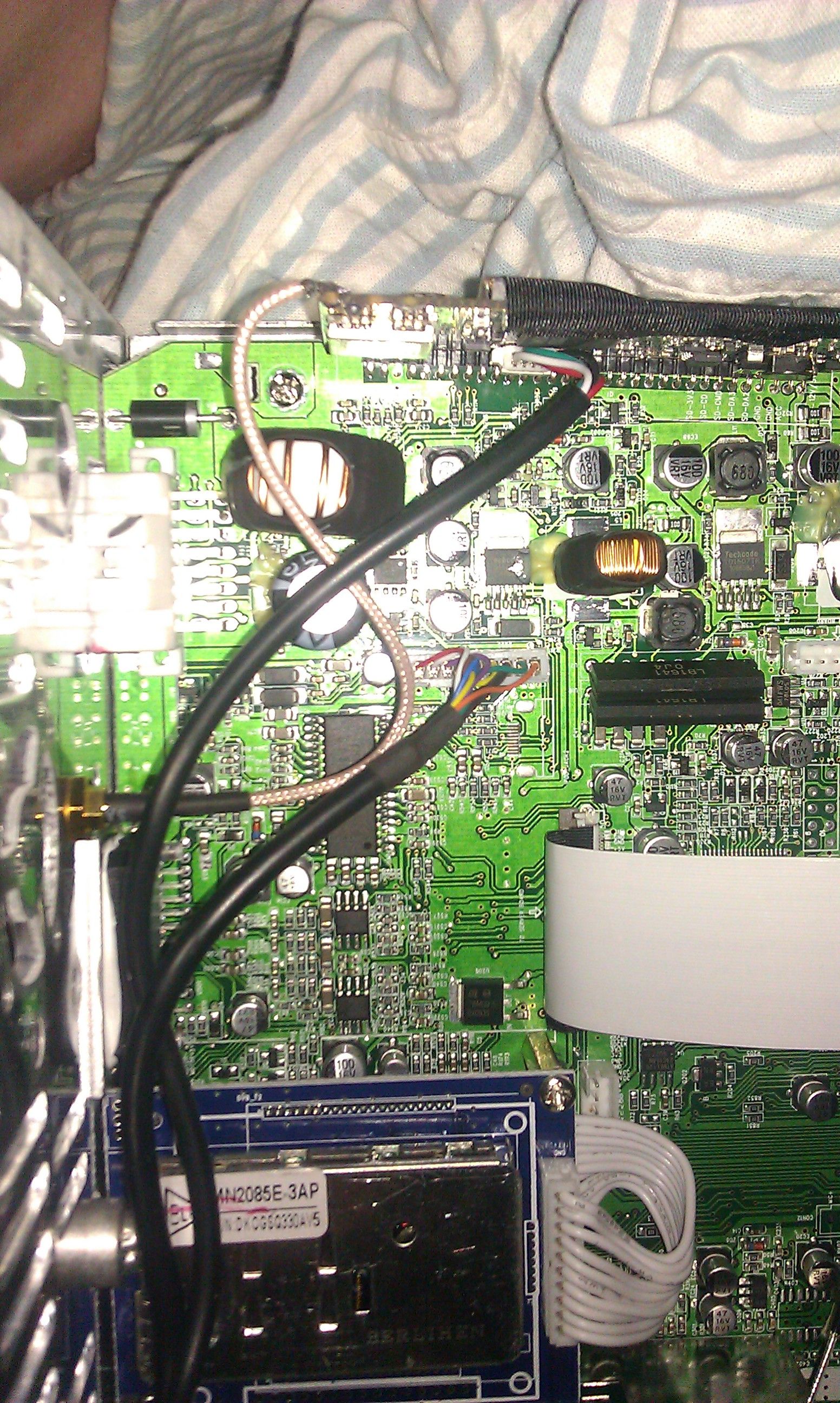

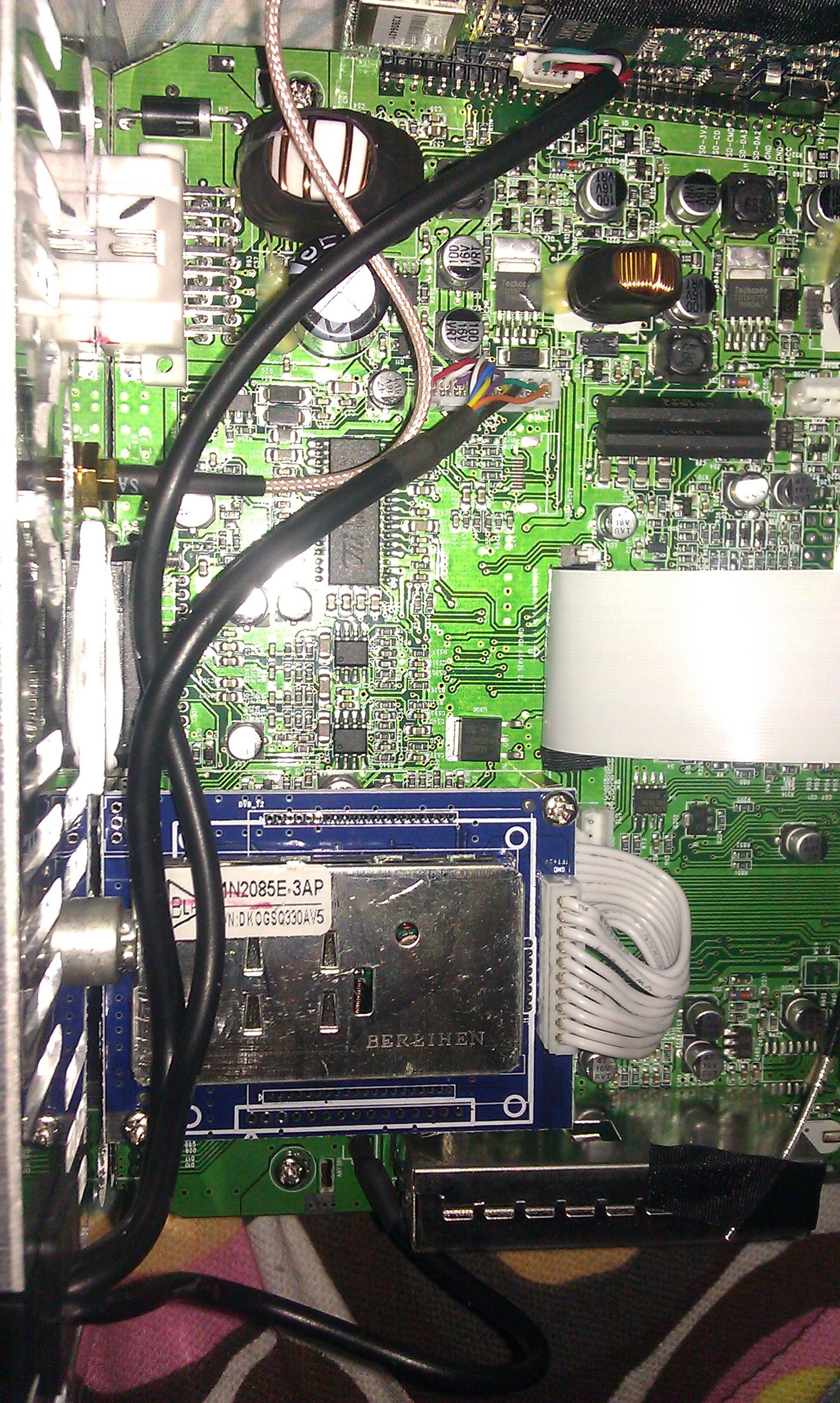

There is a small 10-pin plug in the lower right corner of the unit (see pictures), I suspect this to be a adb connection, but have no idea on howto create a cable for it...

The unit is based on the TCC8900-series.. So maybe someone out there has some ideas???

Hope someone can help me get ADB connection to this carpc...
