[HowTo] A2109 Fastboot

Discussion in 'Lenovo IdeaTab A2109 Technical' started by anika200, Dec 5, 2012.

  1. anika200

    anika200 Member

    Joined:
    Dec 2, 2012
    Messages:
    54
    Likes Received:
    30
    Trophy Points:
    87
    Location:
    Maryland, US
    Tablet / Device:
    Lenovo A2109
    This thread will drag out over 5 posts, sorry.

    This post is for people how want to root or flash a rom onto your device and you need to be in fastboot.

    This is how I got fastboot driver installed in Windows 7 Home Premium.

    1) You must have adb installed and working. There are threads around that will get you going on that.
    2) First you need LeTools as linked to Here. Install that file and make sure you know where it is.
    3) Then you have to Power On you device and plug in your A2109 via usb to your pc.
    4) Now from cmd prompt issue the command adb reboot bootloader this will put your device into fastboot mode and windows will not be able to find a driver for it.
    5) Open Device Manager and follow the steps below.

    Now follow the screen shots.

    Here is the device listed in windows


    Right Click on Fastboot and select Update Driver

    Select the next dialogs as shown



    Then this one and click next


    Brings you to the Next Screen where you want to have "Select All Devices" and then next







    Next post

    • Like Like x 11
  2. anika200

    anika200 Member

    Joined:
    Dec 2, 2012
    Messages:
    54
    Likes Received:
    30
    Trophy Points:
    87
    Location:
    Maryland, US
    Tablet / Device:
    Lenovo A2109

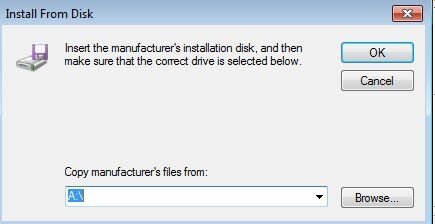

    Now click Have Disk



    Click Browse

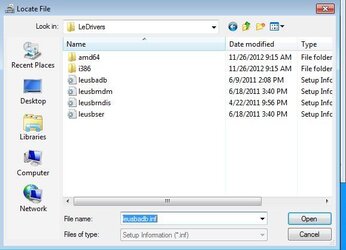

    Find the files from LeTools you installed and Select LeDrivers and click Open


    Windows should now have this next box filled in as below Click open


    Windows brings you back to this window Click OK


    Next post

    Last edited: Dec 5, 2012
    • Like Like x 5
  3. anika200

    anika200 Member

    Joined:
    Dec 2, 2012
    Messages:
    54
    Likes Received:
    30
    Trophy Points:
    87
    Location:
    Maryland, US
    Tablet / Device:
    Lenovo A2109
    We finally get to this window where we can select Lenovo Fastboot Device and click Next

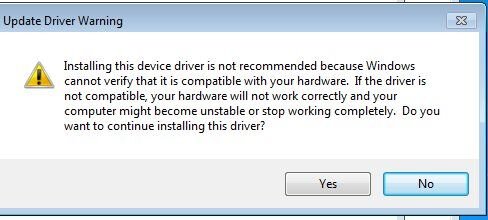

    You will get this error click Yes

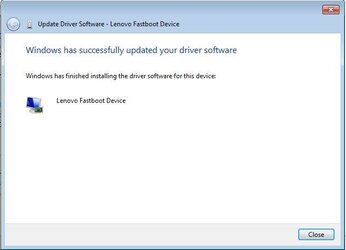

    Holy crap we are finally done 100 mouse clicks later




    That is finally over and we can now access fastboot.

    Last edited: Dec 5, 2012
    • Like Like x 7
  4. Ravak

    Ravak Member

    Joined:
    Dec 5, 2012
    Messages:
    37
    Likes Received:
    8
    Trophy Points:
    72
    Location:
    UK
    Tablet / Device:
    IdeaTab A2109
    Is there a Lenovo's fastboot for Linux? I can adb from Linux (generic adb from android development kit), but fastboot doesn't work at all :(

    Tried Lenovo's fastboot for Windows (from the link provided) under wine but with no success.

  5. anika200

    anika200 Member

    Joined:
    Dec 2, 2012
    Messages:
    54
    Likes Received:
    30
    Trophy Points:
    87
    Location:
    Maryland, US
    Tablet / Device:
    Lenovo A2109
    Update:

    gmarkall just pm me a good tip for linux he said.

    Code:
    fastboot -i 0x17ef boot boot.img
    Yaaay!!!

    Unfortunately I do not have a fastboot that works in linux (my preferred OS). I never thought of trying to use wine, currently when I need to I run fastboot I use windows running in VirtualBox.

    Last edited: Dec 5, 2012
    • Like Like x 2
  6. Ravak

    Ravak Member

    Joined:
    Dec 5, 2012
    Messages:
    37
    Likes Received:
    8
    Trophy Points:
    72
    Location:
    UK
    Tablet / Device:
    IdeaTab A2109
    Cheers, will try VirtualBox then :)

    Edit: Just saw gmarkall's post in another forum about adding vendor ID; tested flashing a new recovery and it works!

    Code:
    # ~/Downloads $ fastboot -i 0x17ef flash recovery A2109_CWMrecovery-6.0.1.9c.img sending 'recovery' (6340 KB)...
    OKAY [  1.182s]
    writing 'recovery'...
    OKAY [  0.447s]
    finished. total time: 1.629s

    Last edited: Dec 5, 2012
  7. vampirefo.

    vampirefo. Senior Member Developer

    Joined:
    Nov 8, 2011
    Messages:
    3,828
    Likes Received:
    1,389
    Trophy Points:
    655
    Location:
    Huntington WV
    Tablet / Device:
    Leagoo Lead 1 ZTE OPEN C, Coby 7065, Coby 8042, Coby 9740
    Fastboot works just fine in Linux, probably better than windows version,Just use the fastboot binary that came with your adb binary must be root to use it.

  8. vampirefo.

    vampirefo. Senior Member Developer

    Joined:
    Nov 8, 2011
    Messages:
    3,828
    Likes Received:
    1,389
    Trophy Points:
    655
    Location:
    Huntington WV
    Tablet / Device:
    Leagoo Lead 1 ZTE OPEN C, Coby 7065, Coby 8042, Coby 9740
    Nice guide, I will be sending windows users here to read it.

  9. fryd

    fryd Member

    Joined:
    Dec 14, 2012
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    60
    Location:
    Boulder, CO
    Tablet / Device:
    Lenovo IdeaPad A2109a
    Do you know for fact that 17ef is the vendor code for the A2109a?
    I've been looking everywhere!
    It should be sticky'd cuz... damn long night! hehehehe

  10. Ravak

    Ravak Member

    Joined:
    Dec 5, 2012
    Messages:
    37
    Likes Received:
    8
    Trophy Points:
    72
    Location:
    UK
    Tablet / Device:
    IdeaTab A2109
    Connect pad to Linux box, type "dmesg":
    or type "lsusb":

    • Like Like x 2
  11. colour97

    colour97 Member

    Joined:
    Dec 15, 2012
    Messages:
    9
    Likes Received:
    0
    Trophy Points:
    60

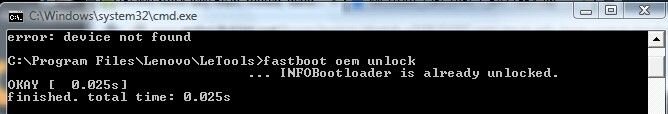

    $ScreenHunter_10 Dec. 16 01.57.jpg

    need help. does it mean unlock successfully? thank you.

  12. FloRider

    FloRider Senior Member

    Joined:
    Dec 2, 2012
    Messages:
    358
    Likes Received:
    111
    Trophy Points:
    240
    Location:
    Florida
    Tablet / Device:
    Lenovo A2109
    Yes, your bootloader is now unlocked :).

  13. a2109a

    a2109a Member

    Joined:
    Dec 20, 2012
    Messages:
    90
    Likes Received:
    4
    Trophy Points:
    72
    Tablet / Device:
    Lenovo IdeaTab A2109A
    You can try "udevadm monitor --environment --udev" too, it says:

    ID_BUS=usb
    ID_MEDIA_PLAYER=1
    ID_MODEL=IdeaTabA2109A
    ID_MODEL_ENC=IdeaTabA2109A
    ID_MODEL_ID=74e6
    ID_MTP_DEVICE=1
    ID_REVISION=0232
    ID_SERIAL=LENOVO_IdeaTabA2109A_FD60******
    ID_SERIAL_SHORT=FD60******
    ID_USB_INTERFACES=:ffff00:ff4201:
    ID_VENDOR=LENOVO
    ID_VENDOR_ENC=LENOVO
    ID_VENDOR_ID=17ef

  14. a2109a

    a2109a Member

    Joined:
    Dec 20, 2012
    Messages:
    90
    Likes Received:
    4
    Trophy Points:
    72
    Tablet / Device:
    Lenovo IdeaTab A2109A
    Last edited: Dec 20, 2012
