Huawei S7 - connecting USB external hard disc or flash memory

Discussion in 'Huawei Ideos S7 Accessories' started by Justas, Dec 12, 2010.

  1. Justas
    Offline

    Justas Junior Member

    Joined:
    Dec 12, 2010
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    NULL
    Hi,

    Is it possible to connect to Huawei S7 external USB memory (expl. WD passport 320GB)? Should I look for some adapter for USB port?

    Thank you!
    Justas
  2. Koets
    Offline

    Koets Junior Member

    Joined:
    Dec 12, 2010
    Messages:
    4
    Likes Received:
    1
    Trophy Points:
    0
    Location:
    NULL
    Wired i am not sure as i dont own one, but through wifi it should be possible, connect to yr pc, (wired or wireless) or to yr router (or nas directly) through wifi, and look up yr hdd.

    alternativlely, mostly you can buy usb connectors for ext HDD's (but as i said.. not sure)
  3. Justas
    Offline

    Justas Junior Member

    Joined:
    Dec 12, 2010
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    NULL
    Thanks Koets. The thing is that I want to have this memory connected to HS7 withought PC. I am planning to travell and I would like to take my films and other stuff with this WD passport 320GB.
    I think it should be possible. I saw in one of the videos that Huawei had a stand for HS7 with USB connections for storage. I do not know if it is commercially available, but that shows possibility. Anyway USB port is in place. the question is only if some adapter is available in shops and if SW can support this.
  4. KE4NYV
    Offline

    KE4NYV Junior Member

    Joined:
    Dec 5, 2010
    Messages:
    26
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Greenbackville, Virginia, USA
    Tablet / Device:
    Acer A500
    I read a rumor somewhere that the mini USB port on the S7 MIGHT serve as a host port, with some kind of dongle adapter, breaking out to a USB A female socket. I would love to get some kind of confirmation on this and if so, if the adapters are in the works. That would really make what you want to do easy. Plus, you (and the rest of us) could avoid having to haul a dock with us everywhere we go, just to have the USB host connection.

    I would like to do something similar to what you described, only I would probaly use hi-capacity USB thumb drives in lieu of a full USB backup drive.
  5. Justas
    Offline

    Justas Junior Member

    Joined:
    Dec 12, 2010
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    NULL
    so nobody tried that or it is not possible?
  6. pa49
    Offline

    pa49 Junior Member

    Joined:
    Nov 29, 2010
    Messages:
    365
    Likes Received:
    38
    Trophy Points:
    0
    Location:
    UK
    Tablet / Device:
    Huawei S7, Nokia X3-02, Nokia E71
    The sometimes seen docking station shows external USB ports so should support external mass storage, but don't ask me where you get one. The dock is connected via the bottom expansion port.

    Sent from my Ideos S7 using Android Tablet Forum App
  7. Joshua
    Offline

    Joshua Junior Member

    Joined:
    Nov 28, 2010
    Messages:
    47
    Likes Received:
    16
    Trophy Points:
    0
    Location:
    Lousiana
    Tablet / Device:
    Too Many
    No go on USB host. I had an adapter (micro USB to USB host) I used with my Archos 7HT.
  8. micaradu
    Offline

    micaradu Junior Member

    Joined:
    Jan 12, 2011
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Bucharest Romania
    Tablet / Device:
    Gome Flytouch (camera version)
    I think what you need is this:
    Cabluri tip IPAD to USB - PC-Tablet
    It's used by lots of the chinese tablets. It has a 30 pin connector on one side that goes into the dock connector on the tablet and a USB Female on the other end.
  9. pa49
    Offline

    pa49 Junior Member

    Joined:
    Nov 29, 2010
    Messages:
    365
    Likes Received:
    38
    Trophy Points:
    0
    Location:
    UK
    Tablet / Device:
    Huawei S7, Nokia X3-02, Nokia E71
    I have a new Nokia phone which supports USB OTG (On The Go) and allows the phone to be used as a host to enable reading of attached mass storage devices. This includes thumb drives and hard drives (when eternaly powered).
    Unfortunately the S7 does not support this feature and the USB OTG adapter cable will not fit into the micro USB port as the plug configuration is non standard micro USB.
    The bus on the bottom of the S7 does allow this with the correct connector, but, as I said, they are like hen's teeth!
  10. Music
    Offline

    Music Junior Member

    Joined:
    Feb 5, 2011
    Messages:
    471
    Likes Received:
    7
    Trophy Points:
    18
    Location:
    Northcoast, OH
    Tablet / Device:
    Google Nexus 7-13, 32 Gb
    I would love that too, even if I had to connect an adapter to the dock port. That's because the biggest reason I got a tablet is to capture video or photos while driving in the car, and I don't really like having a laptop with a spinning HDD while bumping down rural roads.
  11. pa49
    Offline

    pa49 Junior Member

    Joined:
    Nov 29, 2010
    Messages:
    365
    Likes Received:
    38
    Trophy Points:
    0
    Location:
    UK
    Tablet / Device:
    Huawei S7, Nokia X3-02, Nokia E71
    OK some more info on this.
    The S7 may be able to do this through the USB port!
    It seems that it could be OS dependant and just require 2.2 and and a correctly wired cable. Manufacturers use their own cables for this purpose. I just found out that my 6 year old iRiver H340 hard drive MP3 player supports this!??????
  12. xaueious
    Offline

    xaueious Administrator Staff Member

    Joined:
    Jul 9, 2010
    Messages:
    3,486
    Likes Received:
    433
    Trophy Points:
    0
    Location:
    Canada
    Tablet / Device:
    Asus Transformer TF300, Huwaei Ideos S7-104, HSG X5A, (Past APAD IMX515, APAD RK2808, RK2818 RT7)
    Depends on whether or not the port is powered. We should be able to enable support through a custom kernel...
  13. rictec
    Offline

    rictec Junior Member

    Joined:
    Jan 30, 2011
    Messages:
    127
    Likes Received:
    24
    Trophy Points:
    0
    hi
    i can recomend two programs
    mount manager and/or cifs manager
  14. heyuuuu
    Offline

    heyuuuu Junior Member

    Joined:
    Jan 30, 2011
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    0

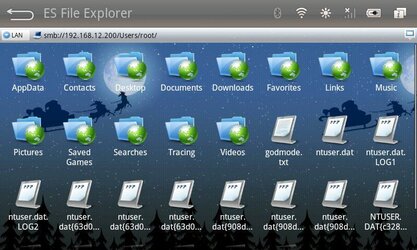

    You can use ES File Explorer from market (it's free)
    menu > New > LAN > Server

    Attached Files:

    Last edited: Feb 10, 2011
  15. Music
    Offline

    Music Junior Member

    Joined:
    Feb 5, 2011
    Messages:
    471
    Likes Received:
    7
    Trophy Points:
    18
    Location:
    Northcoast, OH
    Tablet / Device:
    Google Nexus 7-13, 32 Gb
    Well... Considering that the S7 "doesn't have GPS reception" I'd believe that somehow you might be able to charge (at a low rate) through the USB port, like someof the other undocumented stuff we are finding. Someone will figure it out soon, probably. I just wish they put in the mini-USB plug instead, because I'm sure I'll try to fore mine in the wrong way one day.
    Last edited: Feb 12, 2011
  16. pedro_
    Offline

    pedro_ Junior Member

    Joined:
    Jan 8, 2011
    Messages:
    114
    Likes Received:
    4
    Trophy Points:
    0
    Location:
    St Albans, UK
    Tablet / Device:
    HTC Hero
    What you want is an edimax ns 1500n
    Which is a £50 device you can plug your USB ext into

    Of course that's useless without power

    Pete, on the move...
  17. Music
    Offline

    Music Junior Member

    Joined:
    Feb 5, 2011
    Messages:
    471
    Likes Received:
    7
    Trophy Points:
    18
    Location:
    Northcoast, OH
    Tablet / Device:
    Google Nexus 7-13, 32 Gb
    Is there anything useful that you CAN plug into the USB port? webcam maybe? Projector? printer?
  18. vferrari
    Offline

    vferrari Junior Member

    Joined:
    Dec 4, 2010
    Messages:
    359
    Likes Received:
    25
    Trophy Points:
    0
    Location:
    NULL
    As previously stated, its not a host port so it cannot "host" any of those peripherals.

    Sent from my Ideos S7
  19. miker49er
    Offline

    miker49er Junior Member

    Joined:
    Feb 23, 2011
    Messages:
    36
    Likes Received:
    4
    Trophy Points:
    0
    Tablet / Device:
    S7
    Has anybody seen the thread on the Belarus forum (Подключение внешних устройств к планшету (USB flash и т.д.)) and tried what they describe? Look at the page with Chrome and it will offer to translate it for you (after a fashion). These guys show how to modify a cable and hook up external storage devices to the S7. As best as I can figure out you have to have root and do a little hacking to make the files accessible.
  20. miker49er
    Offline

    miker49er Junior Member

    Joined:
    Feb 23, 2011
    Messages:
    36
    Likes Received:
    4
    Trophy Points:
    0
    Tablet / Device:
    S7
    Yes, you can attach USB storage to your S7! It does have OTG host capabilities. Hope I didn't scare anyone with that nasty-looking link in my last post--it works even though it got all scrambled. Or you can copy/paste this into your browser (again, with Chrome you can get it translated): huawei.belarusforum.net/t166-topic

    Anyway, here's my version of what you need to do:

    1. Get root if you don't already have it. I used z4root (just temporary root so far, I'm being cautious).
    2. Get or make the right adapter cable. The Belarus post has modding instructions but I bought this: Micro male to USB female cable adaptor converter plug a | eBay
    3. Connect the adapter to the S7 and plug in the flash drive.
    4. Open a terminal session:
    $ su
    # ls /data/disk/media
    5. The folder you see there is your flash drive. The folder name will depend on your drive. For a couple of mine it is "disk" so in this case I type this to see the files:
    # ls /data/disk/media/disk
    6. To make the files accessible via your file manager do this (just the first time--it will stick):
    mount -t yaffs2 -o remount,rw /dev/block/mtdblock1 /system
    cd /system
    ln -s /data/disk/media mnt
    mount -t yaffs2 -o remount,r /dev/block/mtdblock1 /system
    7. From now on you can browse to /system/mnt/ to see your files in your file manager or from a program.

    I'm not sure if it's OK to just unplug the flash drive when done. I'm using umount as root before removing the drive just to be sure.

    I haven't done too much with this yet but so far so good!
