infoTMIC Hardware ID's "hwver" and updates (*.ius)

cfrockit · May 13, 2011

Overview - There are various models of infoTMIC devices supported by different manufacturers/distributors however, they all seem to utilize the same automatic update process.

Updated information is maintained on xda - http://forum.xda-developers.com/showthread.php?t=1113121

Hardware ID "hwver"

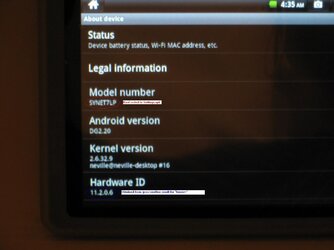

On the "About device" screen in the "Settings" application, on many infoTMIC tablet's the "Model number" is hard coded into the application or pulled from the build.prop thus, it is not a reliable identification of the device. However on some tablet's, once the device has been updated to 2.2 the initial boot screen lower right corner or the "About device" screen displays the "Hardware ID" which is obtained by running /proc/cmdline and extracting the digits returned for "hwver=". Using this information the latest infoTMIC updates can be manually downloaded.

Brand - - hwver
AV-P8088A 32.9.0.1 4 GB NAND
AV-P8088 32.8.0.1 RAM 256 MB NAND 2 GB

Curtis International KLU LT8025 0.7.1.5
Curtis International KLU LT8025 0.7.3.1

Disgo 6000 12.2.0.5

Flytouch/SuperPad/WOWPad
Fly/Super/WOW 0.6.1.2
Fly/Super/WOW 0.6.1.5
Fly/Super/WOW 0.6.3.1
Fly/Super/WOW 0.6.3.2

I7Y 13.4.0.1 Model: s01
I10Y 13.5.0.1 Model: wwe10
(Note these Hardware Id's "hwver" seem to be confused based on the update files identified.)

MOBILE-BARN
MB-HWF808 ?.?.?.?

SYNET7LP/SYTABEX7
Sylvania 7" 11.2.0.5
Sylvania 7" 11.2.0.6
Sylvania 7" 11.2.0.7 (No device every identified however, partial update file located.)
Sylvania 7" 11.2.1.5
Sylvania 7" 11.2.1.8
Sylvania 7" 11.2.3.1

SYTAB10MT/SYNET10LP
Sylvania 10" 11.6.1.5
Sylvania 10" 11.6.3.1

See this thread specific to 7" infoTM powered tablets - http://www.androidtablets.net/forum/sylvania-tablets/12785-infotm-update-wrap-files-bin-ius.html

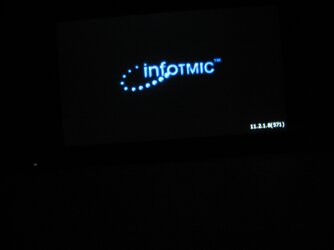

Notes: Some firmwares identify the Hardware ID "hwver" on the initial boot screen. Example: 0.7.3.1(658). The three digit number between the parentheses (###) is suspected to be the version of U0 - u-boot-nand.bin as it corresponds to the U-Boot file located within the InfoTM Update Wrap *.ius file.

Note: If the device has not been updated the "hwver" can be obtained manually by entering the string "cat /proc/cmdline" using either adb shell or in a Terminal Emulator application. More information regarding these methods can be found in Step 1: Hardware version identification either using adb or a Terminal Emulator application or Alternate Step 1) Terminal Emualtor method to determine "hwver".
Code:
C:\>adb shell cat /proc/cmdline
console=ttySAC3,115200 androidboot.mode=normal bmagic=0xeef07901 hwver=11.2.0.6
Please post any other know infoTMIC Hardware ID's "hwver".

System Update

It seems that most of the infoTMIC devices utilize the same "UpdateCheck" and "UpdateSystem" processes.

To check for an update click Settings > Update System > Check for Update or on some devices there is a "System Update" application.

The programmatic process follows these steps:

The Settings application queries DNS for the infoTMIC ip address and then requests a text file containing the location of the update server.
Code:
Source                Destination           Protocol Info
192.168.0.174         192.168.0.1           DNS      Standard query A [B]www.infotmic.com.cn[/B]
192.168.0.1           192.168.0.174         DNS      Standard query response A [B]58.23.131.11[/B]

192.168.0.174         58.23.131.11          HTTP     GET [B]/updateserver/server.txt[/B] HTTP/1.1
Hypertext Transfer Protocol
    GET /updateserver/server.txt HTTP/1.1\r\n
    Host: www.infotmic.com.cn\r\n

192.168.0.174         HTTP     HTTP/1.1 200 OK  (text/plain)
Line-based text data: text/plain
    [B]222.73.93.45[/B]\r\n
    211.147.200.147:2021
The "UpdateCheck" process then uses the digits returned for the "hwver=" from /proc/cmdline and uses the devices MAC address to send a registration request and awaits the response of a 64bit key which is saved to the device.
Code:
192.168.0.174         222.73.93.45          HTTP     GET [B]/reg.php?action=reg&data=11.2.0.6|00MAC_ADDRESS[/B] HTTP/1.1
222.73.93.45          192.168.0.174         HTTP     HTTP/1.1 200 OK  (text/html)
Line-based text data: text/html
    "A 64bit random alpha-numeric string in returned"
The UpdateCheck" process again then uses the digits returned for the "hwver=" from /proc/cmdline and the Version returned from property "ro.versioncode" to send a request and awaits a response if an update file is available given the HardwareID and Version.
Code:
Source                Destination           Protocol Info
192.168.0.174         222.73.93.45          HTTP     GET [B]/sysup.php?data=11.2.0.6&vcode=10[/B] HTTP/1.1
222.73.93.45          192.168.0.174         HTTP     HTTP/1.1 200 OK  (text/html)
Line-based text data: text/html
    [B]12|http://222.73.93.45/update/11.2.0.6/11.2.0.6.2.0_beta3.ius[/B]
Note: In the text string returned above, the digit(s) preceding the pipe "|" symbol is/are assumed to be the most current version. By substituting anything less in the GET command above will return the update.

If an update is available, the file is download to /local/system.ius.
Code:
192.168.0.174         222.73.93.45          HTTP     GET [B]/update/11.2.0.6/11.2.0.6.2.0_beta3.ius[/B] HTTP/1.1
Upon completion of the download, the file is automatically processed which includes unpacking the multi-part update file and burning the images.

On many devices, the automatic process downloads the update but fails to burn and update the device therefore, if you manually want to check for an update insert the identified "hwver" after "data=" and Version after "vcode=" in this string and paste in a new browser session to see if an update is available.
Code:
http:// 222.73.93.45/sysup.php?data=[B]##.#.#.#[/B]&vcode=[B]##[/B]
If an update file is identified it can be downloaded and then using the InfoTM Update Wrap Tool the device can be manually updated.

IUW Version 1.2 posted with additional information in http://www.androidtablets.net/forum/infotmic-based/17274-introduction-iuw-burning-tools.html

These are the update files identified to date -

Wrap Information:
Code:
[FONT=Courier New]Hardware ID InfoTM update wrap(*.ius)                 FileNum:         U0                                      U0        UBOOT     RD        LK        ADD_USER  ADD_AS
"hwver"                                               Firmware Version u-boot-nand.bin                                             RAMDISK   KERNEL    USER      SYSTEM
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
[/FONT][FONT=courier new][B]Infotmic AV-P8088A[/B]
32.9.0.1    P8088A_Android_v11_2.2.ius                32.9.0.1.1.11    2009.08-svn619 (Mar 11 2011 - 17:09:24) 258 KB    NA        165KB     2658 KB   NA        144860.5 KB[/FONT]
[FONT=Courier New][B]Zenithink 10" ZT-180/Infotmic AV-P8088[/B]
32.8.0.1    P8088_Android_10.ius                      32.8.0.1.0.10    NA                                      NA        NA        159.5 KB  NA        4.5 KB    75766.5 KB
32.8.0.1    P8088_Android_9.ius                       32.8.0.1.0.9     NA                                      NA        NA        159.5 KB  NA        8.5 KB    68640.5 KB
32.8.0.1    P8088_Android_8.ius                       32.8.0.1.0.8     NA                                      NA        NA        159.5 KB  NA        8.5 KB    68629.5 KB

[B]Disgo 6000[/B]
12.2.0.5    disgo_12.2.0.5.1.4.ius                    12.2.0.5.1.4     2009.08-svn483 (Nov 23 2010 - 08:42:32) 247 KB    231 KB    178.5 KB  2370.5 KB 4.5 KB    49677.5 KB

[B]Sylvania 10" SYTAB10MT(SYNET10LP)[/B]
11.6.3.1    0106rd_11.6.3.1.2.0_beta3.ius             11.6.3.1.2.0     2009.08-svn678 (Mar 14 2015 - 09:59:41) 270.5 KB  NA        195.5 KB  2617.5 KB 8.5 KB    55639.5 KB
11.6.3.1    wwe10_11.6.1.5.2.0_beta3.ius              11.6.3.1.2.0     2009.08-svn678 (Mar 14 2015 - 09:55:48) 270.5 KB  NA        195.5 KB  2617.5 KB 4.5 KB    55699 KB
[/FONT][FONT=courier new]11.6.3.1    11.6.3.1.2.0_beta4_0523.ius               11.6.3.1.2.0     2009.08-svn678 (Mar 14 2015 - 09:59:41) 270.5 KB  NA        195.5 KB  2617.5 KB 8.5 KB    56392.5 KB
11.6.1.5    11.6.1.5.2.0_beta4_0523.ius               11.6.1.5.2.0     2009.08-svn678 (Mar 14 2015 - 09:55:48) 270.5 KB  NA        195.5 KB  2617.5 KB 4.5 KB    56456.5 KB [/FONT]
[FONT=Courier New]
[B]Sylvania 7" SYNET7LP[/B]
11.2.1.8    11.2.1.8.2.0_beta3.ius                    11.2.1.8.2.1     2009.08-svn627 (Jan 22 2013 - 09:19:18) 248.5 KB  NA        173 KB    2370 KB   4.5 KB    63294 KB
[/FONT][FONT=courier new]11.2.1.8    11.2.1.8.2.0_beta4.ius                    11.2.1.8.2.1     2009.08-svn627 (Jan 22 2013 - 09:19:18) 248.5 KB  NA        173 KB    2370.5 KB 8.5 KB    62934.5 KB[/FONT]
[FONT=Courier New]11.2.1.8    11.2.1.8.2.0.ius                          11.2.1.8.2.0     2009.08-svn627 (Jan 22 2013 - 09:19:18) 248.5 KB  233 KB    173 KB    2369.5 KB 4.5 KB    64243.5 KB
11.2.1.8    11.2.1.8.2.1.ius                          11.2.1.8.2.1     2009.08-svn627 (Jan 21 2013 - 23:02:21) 248.5 KB  NA        173 KB    2369.5 KB 4.5 KB    63294 KB
11.2.1.8    11.2.1.8.2.2.ius                          11.2.1.8.2.1     2009.08-svn627 (Jan 22 2013 - 09:19:18) 248.5 KB  NA        173 KB    2369.5 KB 4.5 KB    63294 KB

[B]Sylvania 7" SYTABEX7[/B]
11.2.1.5    11.2.1.5.2.0_beta3_1.ius                  11.2.1.5.2.1     2009.08-svn660 (Feb 25 2015 - 05:50:18) 246.5 KB  NA        173 KB    2354.5 KB 4.5 KB    62933 KB
11.2.1.5    11.2.1.5_beta3_fina2.ius                  11.2.1.5.2.0     2009.08-svn660 (Feb 25 2015 - 05:50:18) 246.5 KB  230.5 KB  173 KB    NA        4.5 KB    62933 KB
11.2.1.5    11.2.1.5_beta3_final.ius                  11.2.1.5.2.0     2009.08-svn660 (Feb 25 2015 - 05:50:18) 246.5 KB  230.5 KB  173 KB    2354.5 KB 4.5 KB    62933 KB
11.2.1.5    11.2.1.5.2.0_beta4.ius                    11.2.1.5.2.0     2009.08-svn660 (Feb 25 2015 - 05:50:18) 246.5 KB  230.5 KB  173 KB    2354.5 KB 4.5 KB    54901.5 KB

[B]Sylvania 7" SYNET7LP[/B]
11.2.0.5    system.bin                                11.2.0.5.1.3     2009.08-svn466 (Nov 18 2010 - 13:17:30) 246.4 KB  2210 KB   166 KB    2393 KB   4.5 KB    51229.5 KB
11.2.0.6    11.2.0.6.2.0_beta3.ius                    11.2.0.6.2.0     2009.08-svn660 (Feb 25 2015 - 05:47:47) 246 KB     NA        173 KB    2376 KB   4.5 KB    62934.5 KB
11.2.0.7    11.2.0.7.2.0_beta3.ius                    11.2.0.7.2.0     2009.08-svn661 (Mar 06 2015 - 05:33:51) 246 KB     NA        173 KB    2375 KB   4.5 KB    62933 KB

[/FONT][FONT=Courier New][B]WowPad 8"[/B]
1.7.1.5     WWE08B_Android_2.1-0128.ius               1.7.1.5.1.1      2009.08-svn587 (Jan 05 2011 - 07:22:27) 253.5 KB  237.5 KB  159.5 KB   2613 KB   4.5 KB    72783.5 KB[/FONT]
[FONT=Courier New]
[B]SuperPAD I 10" (WowPad, Gome Flytouch II), SuperPAD II[/B]
1.6.1.5     WWE10B_Android_2_2_V1_8_U0M_GT2005.ius      1.6.1.5.1.1    2009.08-svn672 (Mar 11 2011 - 06:40:06) 271 KB    239 KB    165 KB      2623 KB   4.5 KB    72338.5 KB
1.6.1.5    WWE10B_Android_2_2_V2_1_U0M_GT2005_flash.ius 1.6.1.5.1.1    2009.08-svn672 (Mar 11 2011 - 06:40:06) 271 KB    239 KB    165 KB      2623 KB   4.5 KB    77366 KB
1.6.3.2    P011CZ_Android_2_2_V2_1_U0E_GT2005_flash.ius 1.6.3.2.1.1    2009.08-svn676 (Mar 14 2011 - 09:26:47) 271 KB    239 KB    165 KB      2623 KB   4.5 KB    72263.5 KB
[B]
Klu by Curtis International LT8025 8"[/B]
[/FONT][FONT=Courier New]0.7.1.5     WWE08B_Android-2.1_0.7.1.5_v5full.ius     0.7.1.5.1.5       2009.08-svn587 (Jan 05 2011 - 07:22:27) 253.5 KB  237.5 KB  159.5 KB  0  KB      4.5 KB    71690 KB[/FONT]
[FONT=Courier New]0.7.3.1    -None identified

[B]SuperPAD I 10" (WowPad, Gome Flytouch II), SuperPAD II[/B]
0.6.1.5     WWE10B_Android_393477-v9full.ius          0.6.1.5.1.9      2009.08-svn587 (Jan 05 2011 - 07:20:58) 253.5 KB  237.5 KB  159.5 KB  2618 KB   4.5 KB    72143 KB
0.6.1.5     WWE10B_Android_2.1-HappyNewYear.ius       0.6.1.5.1.8      2009.08-svn559 (Dec 16 2010 - 11:31:51) 253.5 KB  237.5 KB  159.5 KB  2618.5 KB 4.5 KB    71285.5 KB
0.6.1.2    -None identified
[/FONT]
NA - Not Applicable, not included in update file

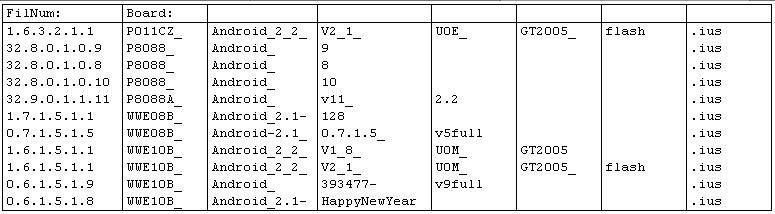

Unfortunately, the file naming does not seem to conform to a standard therefore making it difficult to determine new updates.

For additional information on how to utilize the update files see - http://www.androidtablets.net/forum/infotmic-based/17274-introduction-iuw-burning-tools.html

Please post any other known information regarding Hardware ID's and System Updates as it would seem collaboration across devices could yield benefits for all.

innovativeint · May 23, 2011

hi cfrockit, thanks for the great info.

it is very helpful..

gadgetman404 · Jun 7, 2011

you seem to know what you on about im new to this forum lark can you help want to update.the icon manual update dont work any help please link how to update etc how todo night where to get update from etc cheers

Sent from my deb using Android Tablet Forum

nedstar · Aug 31, 2011

Great info, thank's.

My question : Is it possible to make an image of my SAWEE Pad firmware.

Android0x7 · Sep 29, 2011

Thank you so much Cfrockit
It worked for my device.

Grateful to you !!!
THANKS

cfrockit · Sep 29, 2011

Android0x7 said: ↑

Thank you so much Cfrockit
It worked for my device.

Grateful to you !!!
THANKS
Click to expand...

http://222.73.93.45/sysup.php?data=13.4.0.1&vcode=0
Code:
16|[URL]http://222.73.93.45/update/13.4.0.1/I10Y_Android_17.ius[/URL]
Working folder information for InfoTMIC Update Wrap (.ius) - I10Y_Android_17.ius
Code:
 Android OS version             : 2.1-update1
 Device                         : s01
 Model                          : s01
 ROM Name                       : s01-eng 2.1-update1 ERE27 eng.liuqi.20101224.110921 test-keys
 Rooted (Superuser.apk + su)    : NO
 Rooted (unsecured boot.img)    : UNKNOWN
 BusyBox installed              : YES
 BusyBox run-parts support      : NO
 Apps2SD (Apps to EXT) enabled  : NO
 Wireless tethering installed   : NO
 /data/app enabled              : NO
 Custom boot animation allowed  : NO
 Nano text editor installed     : NO
 Bash shell support             : NO
 /system/framework is deodexed  : YES
 /system/app is deodexed        : YES
 radio.img found                : NO
 ROM will wipe all data         : NO
Hardware ID's "hwver" different from update (*.ius) FileNum
Originally Posted by Android0x7

Hello folks,

Pls let me know if anybody owns an Infotmic I10Y hwver(13.4.0.1).
Came with custom Android 2.1 update 1 ROM with chinese apps and other stuff which i flashed to a different ROM using the update file (.ius) from Infotmic with the wrap tool.
However, the updated ROM still says version Android 2.1.

Any ideas how can it be upgraded to 2.2 or 2.3 ...???
The device is pretty neat and works well ... just the update which is required.
Click to expand...

It is interesting to note that the Hardware ID's "hwver" is different from update (*.ius) FileNum thus leading to the same conclusion that many of these update files (except for the U0 image) are interchangeable.

Wrap Information:
Code:
Company: None
Board: I10Y
FileNum: 0.5.0.1.0.3
Size: 72MB

Image List:
U0 (232 KB)
UBOOT (216 KB)
RD (159 KB)
LK (2394 KB)
ADD_USER (4.5 KB)
ADD_AS (70731.5 KB)
Using the information above with the Hardware ID "hwver" 0.5.0.1 nothing is found however, substituting 13 as the Company identifier making it 13.5.0.1 in the string below - http://222.73.93.45/sysup.php?data=13.5.0.1&vcode=0 returns
Code:
10|[URL]http://222.73.93.45/update/13.5.0.1/I7Y_Android_10.ius[/URL]
This InfoTMIC Update Wrap (.ius) while it includes the I7Y in the file name it is Android 2.1 for a 10" tablet.

Working folder information for InfoTMIC Update Wrap (.ius) - I7Y_Android_10.ius
Code:
 Android OS version             : 2.1-update1
 Device                         : wwe10
 Model                          : wwe10
 ROM Name                       : wwe10-eng 2.1-update1 ERE27 eng.qiangcheng.20101222.174425 test-keys
 Rooted (Superuser.apk + su)    : NO
 Rooted (unsecured boot.img)    : UNKNOWN
 BusyBox installed              : YES
 BusyBox run-parts support      : NO
 Apps2SD (Apps to EXT) enabled  : NO
 Wireless tethering installed   : NO
 /data/app enabled              : NO
 Custom boot animation allowed  : NO
 Nano text editor installed     : NO
 Bash shell support             : NO
 /system/framework is deodexed  : YES
 /system/app is deodexed        : YES
 radio.img found                : NO
 ROM will wipe all data         : NO
Caution! Burning the incorrect update file containing an incompatible U0 image may cause irreparable damage (brick) the tablet.

ah.nabil · Dec 27, 2011

very helpful cfrockit, but from where can you get the Company Identifier?

Using the information above with the Hardware ID "hwver" 0.5.0.1 nothing is found however, substituting 13 as the Company identifier making it 13.5.0.1 in the string below -http://222.73.93.45/sysup.php?data=13.5.0.1&vcode=0 returns")
Click to expand...

lucini · Feb 1, 2012

i obtain hwver 0.6.1.3 can i think is a Superpad I (flytouch 2)? my have 512MB RAM and 2 TF slot and GPS

littlehunnybee · Aug 2, 2012

1) Terminal Emualtor method to determine "hwver".
Code:
C:\>adb shell cat /proc/cmdline
console=ttySAC3,115200 androidboot.mode=normal bmagic=0xeef07901 hwver=11.2.0.6
Please post any other know infoTMIC Hardware ID's "hwver".

Mine came back with the hwver: 12.7.0.12 and I haven't seen ANYTHING about that hwver anywhere here....any ideas?

leeb · Aug 11, 2012

I have some additional hwvers for you! The 2nd group were 'software challenged' and have been made operable with compatible versions...
INCLUDING but not limited to having the U0 changed...

Device known as
m799ca 10" (board label DK1031 MAIN 0210 2012-2-25) currently 2.3.3 hwver 0.6.3.5 bmagic db6db610
** NEW as of 8-8-12 **
eMatic eGlide4 7" (EGL25BL, a.k.a m1099RA) currently 4.0.3 hwver 11.2.7.6 bmagic eeaa0702 (board label SHOUYING m799rb-128x8-MAINB=V2.0 (2011.12.01))

--------------------
YOSPAD 10" (board label YONESTOPTECH-101 2011.08.11) currently 2.2.x -will update- hwver 0.6.1.3 bmagic unk
P001 10" (board label WWE10-6-2 v2.0 DK1031L-2011.11.02) was 2.3.3 hwver 0.21.8.1 bmagic db6db610

Should I manage to find ORIGINALs for the corrupted versions I will update.

isamar · Aug 23, 2012

Getting 503(Not Found) to http://222.73.93.45/sysup.php and to http://222.73.93.45/reg.php

I need the new image for 0.6.1.5(559). Any tip ?

Freetown · Aug 26, 2012

I happened to have recently got an Andriod Tablet 7" with 2.2 OS (TPC7901, SVP). It has the all familiar and often encountered"boot loop" problem and I have come accross so many discussions on Forums with issues challenging an end-users' like me ability to enjoy my device (Tablet-Andriod). And I seem to wonder why Users of Tablets devices in particular with Andriod software who just happened to have paid their money for the comfort of using and enjoying all the benefits a paid for device should offer rather have to go through all these expensive time consuming researching exercise on Furums and the like to solve some kind of problem which otherwise Developers of the software or device should be responsible to solve and provide support of their customers?

TheSoundUnion · Sep 12, 2012

Has anyone found a download that will work for the synet7lp-ds 12.7.0.12 been looking everywhere cant find anything

mordok19 · Sep 12, 2012

Hi all, I have used the Terminal Emulator Method to determine HWVER.

Mine came back with bmagic=0xdb6db610 hwver=0.21.8.1

does anyone know how I can get an update for this.

Many Thanks

lalebarde · Apr 26, 2013

Hi,
I have also an Infotmic tablet SAWEE10 hwver=0.21.8.1. I couldn't manage to access root. I don't have update functions in my settings. Could you manage to update it ? If yes, how please ?

Log in or Sign up

infoTMIC Hardware ID's "hwver" and updates (*.ius)

cfrockit Member

innovativeint Junior Member

gadgetman404 Junior Member

nedstar Junior Member

Android0x7 Junior Member

cfrockit Member

ah.nabil Junior Member

lucini Junior Member

littlehunnybee Junior Member

leeb Junior Member

isamar Junior Member

Freetown Junior Member

TheSoundUnion Junior Member

mordok19 Junior Member

lalebarde Junior Member

Hardware Version 11.2.#.# updates

Hardware ID "hwver=11.2.3.1"

11.2.1.5.2.0_beta5.ius - SYTABEX7 update Hardware ID "hwver" 11.2.1.5

11.2.1.8.2.0_beta5.ius - SYNET7LP update Hardware ID "hwver" 11.2.1.8

SYTAB7MX Hardware Id "hwver" 11.2.7.4 InfoTMIC Update Wrap (.ius)

Share This Page

yonestoptech 101 yonestoptech 101

android emulator infotm

dk1031-main-0210 v3

identify infotm tablet

image file for infotmic

info tmic hard ware

INFOTMIC

infotmic firmware

infotmic model wwe10

infotmic tablet

iuw descargar

m799rb

m799rb ius

software dk1031-main-0210 v3

sylvania infotmic tablet firmware

sylvania synetlp-d5 firmware

synet7lp-d5

update hwver rca android tablet

wow tablet infotmic

yonestoptech 101 custom firmware

Useful Searches
