:: Inside of my SuperPad ::

Discussion in 'Gome Flytouch II' started by SmaRkieS, May 6, 2011.

  1. SmaRkieS

    SmaRkieS Member

    Joined:
    Apr 15, 2011
    Messages:
    92
    Likes Received:
    10
    Trophy Points:
    72
    Location:
    Cebu City Philippines
    Tablet / Device:
    SuperPad 10.2
    SuperPad (screwless casing)

    My SuperPad is not charging anymore, I suspect that the charging port is loosen because the charger is wobbling. So I decide to open it.

    Tools:

    1. Prying tool (or any blunt flat object)
    2. Small Philips screw driver
    3. Thin plastic Card (don't use cutter/blade/knife because it will damage/slice your touch screen)
    4. Tweezers (use to unlock the touch screen ribbon, and used for placing the ribbon back)

    NOTE: I'm only using my webcam for the picture, sorry for the crap quality. I use this because it's fast and easy to focus.

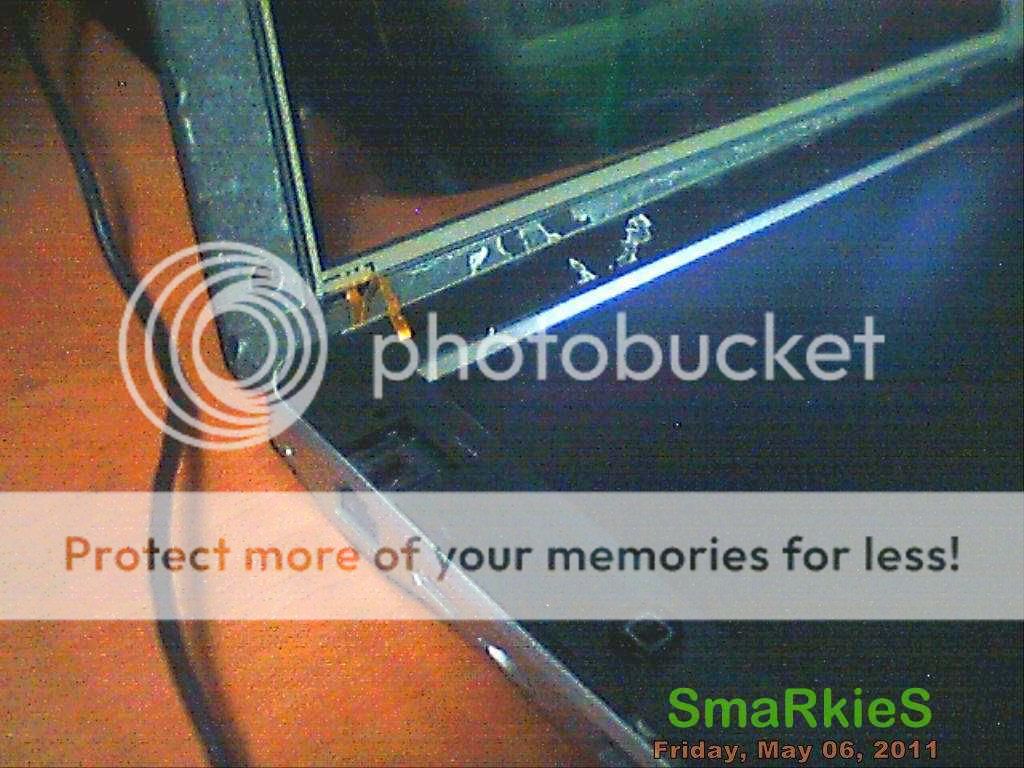

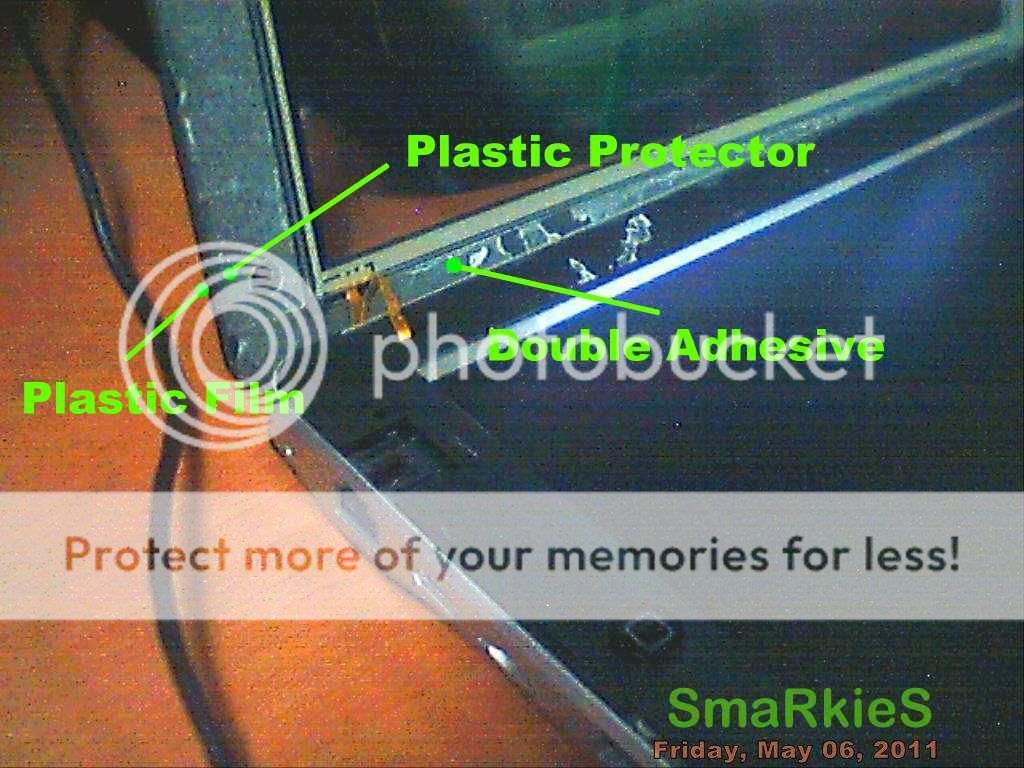

    I start using the thin plastic card on the side, slide the card on the 2nd layer of the plastic, just be careful with the plastic layer, make sure it's not the thin plastic film you peal off (see picture)

    The screen is using double sided tape adhesive (see picture)

    [​IMG]



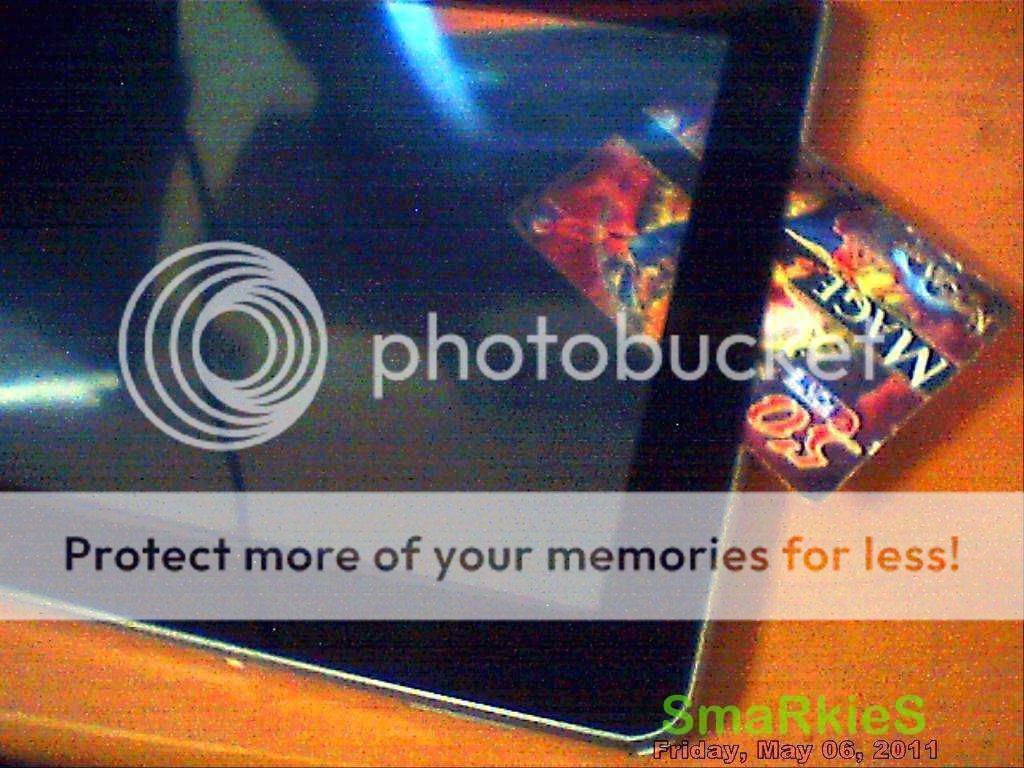

    Slide the card, just follow the red line on the picture, stop on blue line where the flex cable is, or else you will cut off the flex.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]



    The start prying next plastic layer, just pry it towards you it will unlock the plastic tabs, if you don't have any prying tools, just use any plastic tools, don't use metal tools because it will damage the casing.

    [​IMG]

    [​IMG]


    - After prying it off, gently lift the screen together with the touch screen away from you where the flex ribbon of the touch screen is on the upper left, Don't fully lift the screen, because the LCD ribbon is still there.

    - Unlock the Touchscreen Flex Ribbon holder, and slowly remove the flex of the touchscreen. (see picture)

    - If your fingers are small you can remove the battery connector from the board, or use tweezers to remove. (see picture)

    - Remove the Vibrator Motor. (see picture)

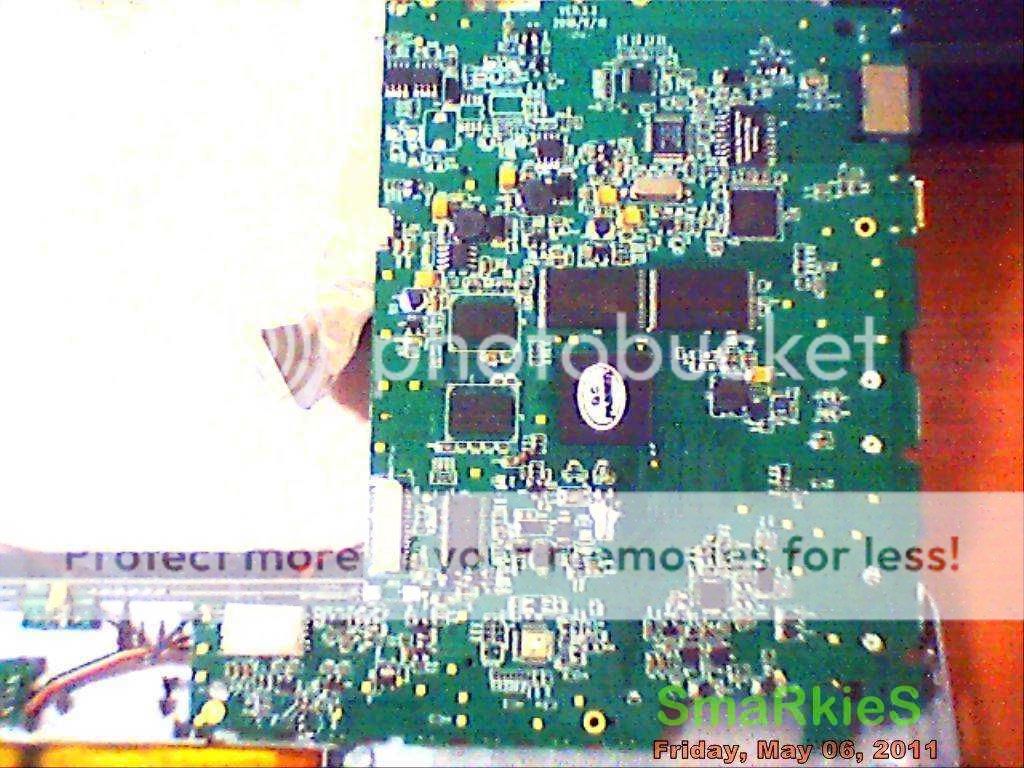

    - On the main board there is a thin plastic protector, you can remove it, and remove the 4 screws on the board.

    - Lift gently the board and move the board to the left, where the battery is on the left side.

    - Now you can remove the LCD Connector from the board, just remove it slowly.

    [​IMG]







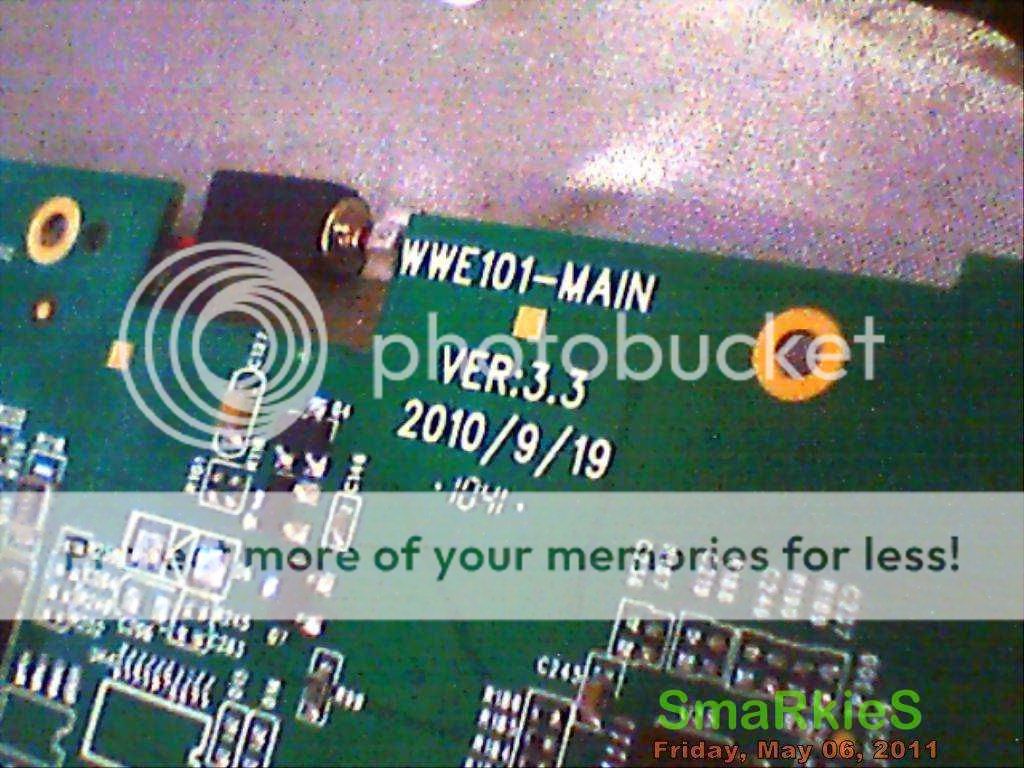

    Main board Version.

    [​IMG]

    [​IMG]

    [​IMG]



    The battery, 3800mAh x2.

    [​IMG]

    [​IMG]

    Last edited: May 6, 2011
    • Like Like x 2
  2. SmaRkieS

    SmaRkieS Member

    Joined:
    Apr 15, 2011
    Messages:
    92
    Likes Received:
    10
    Trophy Points:
    72
    Location:
    Cebu City Philippines
    Tablet / Device:
    SuperPad 10.2
    Wifi module and antena

    [​IMG]

    [​IMG]



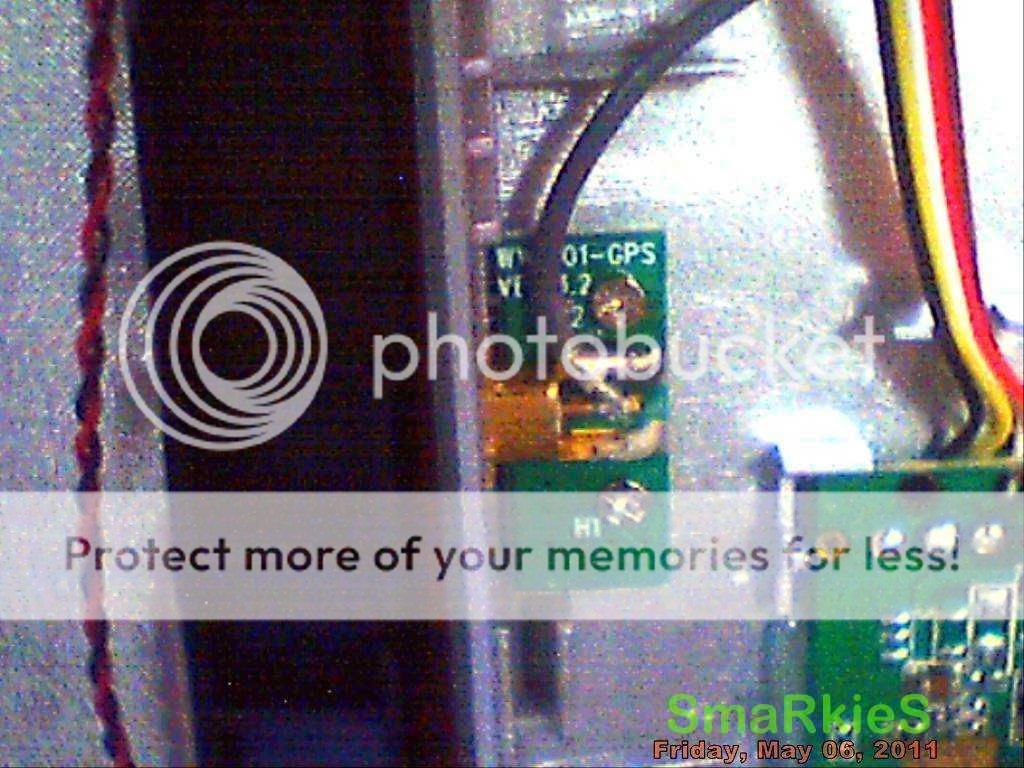

    GPS Port, and GPS Module on main board.

    [​IMG]

    [​IMG]

    Realtek Lan

    [​IMG]



    Samsung ROM i think.

    [​IMG]



    Hynix RAMS 256MB, no way to upgrade it.

    [​IMG]

    [​IMG]



    Processor/Chipset/GPU infotMIC IMAPx210

    [​IMG]



    HDMI Chipset.

    [​IMG]


    Thank you for viewing my thread.

    PS: I found out that the problem is the Charger Jack not the charging port, I wasted some time opening the Tablet, already fixed the charger jack and replace it with new jack.

    Last edited: May 6, 2011
    • Like Like x 4
  3. uplade3

    uplade3 Super Moderator Staff Member

    Joined:
    Apr 29, 2011
    Messages:
    746
    Likes Received:
    62
    Trophy Points:
    210
    Location:
    Asheville N.C.
    Tablet / Device:
    Flytouch II/SuperPAD Droid Charge/Razr, Galaxy S4
    This needs to be a sticky. These are some really good instructions.

  4. AndreM

    AndreM Member

    Joined:
    May 14, 2011
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    60
    Location:
    Netherlands
    Tablet / Device:
    ZT-180, aPAD, WoWpad
    Hi Smarkies,

    Great post! Can you confirm where the 2Gb memory is located? As mentioned in other post, it would be an option to replace it if it was MicroSD.

    R.
    André

  5. SmaRkieS

    SmaRkieS Member

    Joined:
    Apr 15, 2011
    Messages:
    92
    Likes Received:
    10
    Trophy Points:
    72
    Location:
    Cebu City Philippines
    Tablet / Device:
    SuperPad 10.2
    Nop, no microSD on the board, the NAND and RAM is soldered on the board. Flytouch2/Superpad, only the Flytouch3/Superpad2.

  6. igallomail

    igallomail Member

    Joined:
    Jun 30, 2011
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    60
    Location:
    Mexico
    Tablet / Device:
    Fly Touch 3
    Great contribution congrats

  7. hotelsinus

    hotelsinus Member

    Joined:
    May 17, 2011
    Messages:
    9
    Likes Received:
    0
    Trophy Points:
    60
    Location:
    BUdapest
    Tablet / Device:
    superpad III
    hello, is there a way to fix the, buzzing superpad 3? or it is trash,
    if trash is there a way to use the lcd for secundary vga to my desktop pc?
    thank you.

  8. nedstar

    nedstar Member

    Joined:
    Aug 29, 2011
    Messages:
    28
    Likes Received:
    4
    Trophy Points:
    62
    Location:
    Europe
    Tablet / Device:
    Sawee InfoTM
    Excellent work and very very usefull, thank's many times SmaRkieS

  9. drwale2000

    drwale2000 Member

    Joined:
    Mar 6, 2012
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    60
    Location:
    Nigeria
    Tablet / Device:
    Infotmic Wowpad
    Hi, please i need help ASAP. I think i have briked my pad. Whenever i power it, it loads normally bt after all the preboot, it get stuck on a blank page where am suppose to have my desktop.I tried to flash by pressing home+vol up+power but once its powered, it just get stucked on the infotmic page and stays there forever.I also tried home+back+power button but when i press the buttom before the 5minutes timeout, its says no recovry image and that i should recover from sd.what do i do?I have also tried flashin the rom by hexing my sdcard, formatted it, then copied the files listed in android folder into it and inserted it back into my pad but when i turned it on, instead of loading the files on the card, it just load like everythin is normal. What do i do?

  10. alfred09

    alfred09 Member

    Joined:
    Mar 27, 2012
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    60
    Location:
    Netherlands
    Tablet / Device:
    superpad II
    Is there a way to repair the charger Jack without opening the superpad, i have the same problem, it won't charge anymore.

  11. ankannaik

    ankannaik Member

    Joined:
    Jun 18, 2012
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    60
    Location:
    London
    Tablet / Device:
    10.2" Flytouch 3 SUPERPAD 2
    at post....i m going to try this and see if works...thanks a million!
