Introduction of IUW Burning Tools

Discussion in 'Infotmic Based' started by cfrockit, Jun 15, 2011.

  1. cfrockit
    Offline

    cfrockit Member

    Joined:
    Dec 26, 2010
    Messages:
    627
    Likes Received:
    189
    Trophy Points:
    43
    Tablet / Device:
    Sylvania SYNET7LP
    (InfoTM Update Wrap tools)

    IUW Version 1.2 attached at the bottom of this post and posted with additional information at xdadevelopers.

    Copied directly from "Introduction of IUW burning-20110118.docx" which was included in several update file (*.ius) archives.

    Introduction of IUW Burning Tools


    Connecting devices: Connect the tablet and computer with a USB cable(male to male), one end to the USB OTG interface(close to the Audio output) of the tablet and one end toPC. Get ready for boot the tablet. Press Power+Menu to boot the 10 inch tablet and Power+Vol+ for 8 inch one. Then the PC shows new hard drive detected. After the drive is installed according to the drive program in the OTG Driver file, you can begin burning.

    File list:


    • U0: u-boot-nand.bin

    • KERNEL: uImage (or uimg.xxxx)

    • SYSTEM: system.img

    • USER: userdata.img

    • RAMDISK: ramdisk.img

    • RECVRD: recovery_rd.img (It can be ignored if there is no RECVRD)

    You can find the above files in the Android folder in the img card we offered.

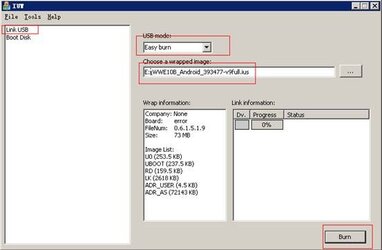

    1. Burning by OTG


    1). Open the IUW burning tools and select Link USB
    2). select Easy burn
    3). Select the ius .iso file
    4). Connect the the tablet to computer
    5). Press Power+Menu to boot the 10 inch tablet and Power+Voice+ for 8 inch. When the small box in Tool turns green, press Burn.
    6). After burning finishes, plug out the cable and press Reset, then restart the device.

    2. Buring by SD card


    1). Open the IUW burning tools and select Boot Disk
    2). Select the IUS .iso file
    3). Connect the SD card to PC via card-reader;
    4). Select the SD drive, for example Removeable media1;
    5). Click the Burn button in tool;
    6). After burning finishes, plug the SD card into the T-flash 1 (MicroSD) slot;
    7). Press Power button to begin the burning;
    8). After burning finishes, plug out the SD card, and press Reset, then restart the device.

    3. Img buring system file list:

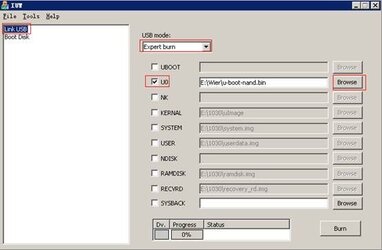

    4. Buring of Uboot

    Get the OTG tools ready, u-boot-nand.bin files for 10- or 8-inch tablets; connect the devices and open the IUW software as follows:


    When the box below DV turns green, click Burn. The burning doesn’t finish until the progress reaches 100%.

    Warning: Keep the tablet is charging because the whole burning progress needs definitely enough power, otherwise the system will break up and booting fails. After burning finishes, the system will starts self-checking. It is normal when the flash- or blurred screen appears.
    Last edited: Jun 19, 2011
    • Like Like x 16
  2. marikafaye
    Offline

    marikafaye Junior Member

    Joined:
    Jun 10, 2011
    Messages:
    1
    Likes Received:
    1
    Trophy Points:
    3
    Location:
    Georgia USA
    Tablet / Device:
    SuperPad Tablet PC and Droid X
    I have tried this many times and it will not see my SD Card . . .Computer sees it just fine, but IUW does not.

    Thank you in advance for any help you can provide!
    • Like Like x 2
  3. cfrockit
    Offline

    cfrockit Member

    Joined:
    Dec 26, 2010
    Messages:
    627
    Likes Received:
    189
    Trophy Points:
    43
    Tablet / Device:
    Sylvania SYNET7LP
    Win 32bit systems seem to have better success rate with both the SD card method and are the only ones that work with the OTG method as the drivers are 32 bit. Users encountering continued issues with the SD card method have either used another card or switched to the OTG method. No definitive solution has been found.
    • Like Like x 2
  4. pinoyconsole
    Offline

    pinoyconsole Junior Member

    Joined:
    May 15, 2011
    Messages:
    1
    Likes Received:
    1
    Trophy Points:
    3
    Location:
    Canada
    Tablet / Device:
    epad unknown type
    Same problem as mine, OTG also not working for me. any way to just copy /paste files to sd card?
    • Like Like x 2
  5. cfrockit
    Offline

    cfrockit Member

    Joined:
    Dec 26, 2010
    Messages:
    627
    Likes Received:
    189
    Trophy Points:
    43
    Tablet / Device:
    Sylvania SYNET7LP
    The InfoTM Update Wrap tools Buring by SD card creates a disk image so copy/paste is not a valid approach.

    Users with continued issues with "Burning by SD card" have resorted to using the OTG method with success.

    Other potential solutions to address the SD card not being recognized by the utility are:

    • Replace and use another card, some users reported "no name" 2 GB microSD cards worked where some 16 GB SDHC brand name cards failed

    • Use another card reader or microSD card adapter

    • Use another computer, operating system, virtual machine configuration

    • Delete the partition off the SD card (pictured in this post #82), no need to reformat as the IUW utility will create the image needed to update and try to burn the image again to the SD card.
    There are multiple methods presented in the instructions, if one doesn't work investigate the use of the other approaches to manually updating the tablet.
    Last edited: Jun 24, 2011
    • Like Like x 2
  6. nedstar
    Offline

    nedstar Junior Member

    Joined:
    Aug 29, 2011
    Messages:
    28
    Likes Received:
    4
    Trophy Points:
    3
    Location:
    Europe
    Tablet / Device:
    Sawee InfoTM
    Great info, thank's.
    My question: Is it possible to make a complete image of my SAWEE Pad firmware.
    • Like Like x 2
  7. cfrockit
    Offline

    cfrockit Member

    Joined:
    Dec 26, 2010
    Messages:
    627
    Likes Received:
    189
    Trophy Points:
    43
    Tablet / Device:
    Sylvania SYNET7LP
    My understanding is that there is NO way to dump the /system partition as it does not back up the oob (out of band) area and can't deal with bad blocks. The nanddump utilities don't seem to function either. For a complete back you really need all of the components of a firmware - U0 "u-boot-nand.bin", Ramdisk, Kernel, Userdata, and system.img and those a best obtained from a known supplier/manufacturer update specific for the tablet. Many a tablet has been bricked by applying the wrong update files but mostly it's been the incorrect U0 for the board.
    • Like Like x 4
  8. nedstar
    Offline

    nedstar Junior Member

    Joined:
    Aug 29, 2011
    Messages:
    28
    Likes Received:
    4
    Trophy Points:
    3
    Location:
    Europe
    Tablet / Device:
    Sawee InfoTM
    Thank's cfrockit for your good explanation.
    • Like Like x 2
  9. sputnick
    Offline

    sputnick Junior Member

    Joined:
    Oct 11, 2011
    Messages:
    1
    Likes Received:
    1
    Trophy Points:
    3
    Location:
    scotland
    Tablet / Device:
    disgo 6000
    disgo 6000 locked followed sd card instructions tablet up and running a thousand thanks
    • Like Like x 2
  10. inbred
    Offline

    inbred Junior Member

    Joined:
    Nov 20, 2011
    Messages:
    1
    Likes Received:
    2
    Trophy Points:
    3
    Tablet / Device:
    GS2
    Try:

    Right click IUW.exe and choose Properties.
    Go to the Compatibility tab.
    Select either:
    • Run this program in compatibility mode for: Windows XP (Service Pack 3)
    • Run this program as an administrator
    Both (not at the same time) worked for me.

    Good luck!
    • Like Like x 4
  11. SEJ016
    Offline

    SEJ016 Junior Member

    Joined:
    Dec 10, 2011
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    1
    Location:
    GB
    Tablet / Device:
    Infotmic based - a clone!
    What is not clear is what is supposed to happen, or what do I have to do at the end of Section 3. I just seem to end up with a device that is doing nothing and won't switch on.

    Please advise.
  12. valkrior
    Offline

    valkrior Junior Member

    Joined:
    Mar 6, 2011
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    1
    Location:
    USA
    Tablet / Device:
    Infotm X220 1Ghz tablet PC
    Hey, Does anyone know where or how I can get the tablet system files for the IUW burning tool? The IUW zip file in this thread installs the burner tool, but where do I get the files to burn onto my tablet?
  13. cfrockit
    Offline

    cfrockit Member

    Joined:
    Dec 26, 2010
    Messages:
    627
    Likes Received:
    189
    Trophy Points:
    43
    Tablet / Device:
    Sylvania SYNET7LP
    Welcome to the forum!

    Determine the Hardware Id "hwver" using Android Terminal Emulator (no root required) then run the following command.
    Code:
    $ cat /proc/cmdline
    Once you have that information review http://www.androidtablets.net/forum...-infotmic-hardware-ids-hwver-updates-ius.html for some insight.
    • Like Like x 2
  14. srara
    Offline

    srara Junior Member

    Joined:
    Dec 21, 2011
    Messages:
    2
    Likes Received:
    2
    Trophy Points:
    3
    1- where the hell is ius file in the zip file? in is not part of it.
    2- i ran the tools as Admin as user as almost every possible user u can think but i can't get the prog 2 work.
    3- when i plug the tablet 2 the pc i get message say UNKNOWN usb device found once and that was it. never been seen again.
    is there easy way 2 update this piece of crap by easy way?
    • Like Like x 2
  15. cfrockit
    Offline

    cfrockit Member

    Joined:
    Dec 26, 2010
    Messages:
    627
    Likes Received:
    189
    Trophy Points:
    43
    Tablet / Device:
    Sylvania SYNET7LP
    Welcome to the forum!

    The InfoTMIC Update Wrap (.ius) files are Hardware Id "hwver" specific. http://www.androidtablets.net/forum...-infotmic-hardware-ids-hwver-updates-ius.html
    Most issues are related to OS (Win32 works).
    Did you install the drivers?
    Yes, use the Update System feature in Settings if an update exists. This process was for manually updating from Android 2.1 to 2.2. It is not supported my the manufacturer/supplier/distributor. There is also the option to burn the update to micro SD.

    Caution: Burning the incorrect InfoTMIC Update Wrap (.ius) file, specifically one containing the wrong U0 "u-boot-nand.bin" image will cause irreparable damage (brick) the tablet.
    • Like Like x 2
  16. srara
    Offline

    srara Junior Member

    Joined:
    Dec 21, 2011
    Messages:
    2
    Likes Received:
    2
    Trophy Points:
    3
    @ cfrockit
    first of all my tablet is SAWEE10, InfoTMIC i get in the bottom right hand side 0.6.1.5(572) i don't know where to start. first the speakers are way to soft. screen calibration it does not work, therefore i have to use a mouse all the time. i have been reading for the last week on how to fix or update the tablet i got no where. by the way the manual update in the tablet always comes with your system is up to date. my windows is xp sp3 fat32. every time i connect the tablet it keeps coming with unrecognized hardware has been detected and when i try to directed to otg folder where the inf and sys files it comes back with the (cannot continue the hardware update wizard. now i have tried 3 pc's win xp sp3, and 2 win7, as admin as user no go. is there any way i can fix this tablet. thanx in advance
    • Like Like x 2
  17. Android0x7
    Offline

    Android0x7 Junior Member

    Joined:
    Sep 29, 2011
    Messages:
    6
    Likes Received:
    1
    Trophy Points:
    3
    Location:
    Hyderabad, India
    Tablet / Device:
    Infotmic I10Y 1ghz
    :( Now that I have done it. Any possibility to bring it back to life ???

    My device is infotmic i7y imapx200 256 mb ddr2 ram 0.3 mp camera wifi
    hwver is 13.4.0.1

    on power up nothing happens :(
    nor does it recognized by the the wrap tool any more (the green color which signifies it when turned on with usb cable)

    Pls help !
    Last edited: Mar 7, 2012
    • Like Like x 2
  18. doglao
    Offline

    doglao Junior Member

    Joined:
    Apr 7, 2012
    Messages:
    17
    Likes Received:
    3
    Trophy Points:
    3
    Location:
    Brazil
    Tablet / Device:
    tablet superpad i7 flytouch III
    I received the message: "out of memory" when I start IUW 1.2
    • Like Like x 2
  19. Sheanne
    Offline

    Sheanne Junior Member

    Joined:
    Jan 22, 2013
    Messages:
    2
    Likes Received:
    2
    Trophy Points:
    3
    Location:
    England
    Tablet / Device:
    Eken M009F

    Eken M009F upgraded
    :)

    I did it differently, i selected link USB and chose Easy Burn selected android m009f ius file
    I then held down menu button and power on button on my tablet until the logo Infotmic appeared
    I attached the USB cable to tablet and my PC,
    my computer found new hardware and I installed otg driver, the DV section turned green
    I selected burn and the whole burning process took less than 4 mins to complete.
    My tablet alerted me when finished I then disconnected USB cable from PC turned tablet off (normally) with the power button then turned on again

    And hey presto I finally upgraded my tablet from a non working 2.2 to 2.3 I was so impressed,

    Just a tip for all first timers like myself this was not mentioned and believe me i did tons of research make sure sd card is inserted before starting the burning process. :)

    I used my apple ipad cable it worked first time

    A Big thank you to Cfrockit for his post below - so helpful :)


    Last edited: Jan 22, 2013
    • Like Like x 2
  20. Sheanne
    Offline

    Sheanne Junior Member

    Joined:
    Jan 22, 2013
    Messages:
    2
    Likes Received:
    2
    Trophy Points:
    3
    Location:
    England
    Tablet / Device:
    Eken M009F




    I did it differently, i selected link USB and chose Easy Burn I then held down menu button and power on button on my tablet until the logo Infotmic appeared I then attached the USB cable to tablet and my PC my computer found new hardware and I installed otg driver, the DV section turned green I selected burn and the whole burning process took less than 4 mins to complete. My tablet alerted me when finished I disconnected USB cable from PC turned tablet off normally with the power button then turned on again
    And hey presto I finally upgraded my tablet from a non working 2.2 to 2.3 I was so impressed,


    Just a tip for all first timers like myself this was not mentioned and believe me i did tons of research make sure sd card is inserted before starting the burning process. :)


    I also used my apple ipad cable worked first time.
    Last edited: Jan 22, 2013
    • Like Like x 2
