Product Specification - UG802

Discussion in '' started by W2COMP, Sep 12, 2012.

  1. W2COMP

    W2COMP Member Supporting Vendor

    Aug 20, 2012
    Likes Received:
    Trophy Points:
    Hong Kong
    Android OS version is: 4.0.4

    Dimension89 * 33 * 16mm
    Net Weight38g
    CPURockchip RK3066 Dual Core Cortex A9, 1.2Ghz (Max. 1.6GHz);
    GPU: Quad Core Mali 400
    Operation SystemAndroid 4.0.4
    MemoryDDR3 1GB
    Nand Flash4GB (2GB for OS, 2GB available space).
    Android MarketYes
    Youtube / FlashYes, Support Adobe Flash 11.3
    VideoSupport AVI, RMVB, MKV& FLV Video Format, Support 1080P HD Playback
    EbookTXT, PDF, HTML, RTF, FB2…
    SkypeYes, but this device does not built-in microphone / camera.
    HDMI InterfaceYes, support up to 1080P
    Email and BrowserYes, built in
    WIFIBuilt-in 802.11 b/g/n
    Powerpowered via USB cable / Power charger (5V 2A)
    Current of TV: should be ≥500mAh(5V), when lower than 500mAh, external power supply to the TV box is needed
    LanguageDutch, Indonesian, Catalan, Czech, Danish, German, English, Spanish, French, Croatian, Italian, Latvian, Lithuanian, Hungarian, Malay, Norwegian, Polish, Portuguese, Roman, Slovenian, Finnish, Swedish, Swahili, Vietnamese, Turkish, Zulu, Greek, Ukrainian, Russian, Serbian, Bulgarian, Hebrew, Arabic, Persian, Thai, Bengali, Korean, Japanese, Simplified Chinese, Traditional Chinese
    Other ApplicationsOffice, Browser, Gallery, Clock, Calculator, Calendar, Taskiller, Gmail…
    Extend Port1 x HDMI port
    1 x TF Card Slot
    1 x USB 2.0 micro port (OTG function: wired keyboard; 2.4G keyboard, mouse, hand grip, etc)
    1 x USB 2.0 port

    For more details: UG802 Dual Core RK3066 Mini Android 4.0 PC Android TV Box Cortex A9 1GB RAM 4G ROM HDMI TF Card

    View attachment 8074

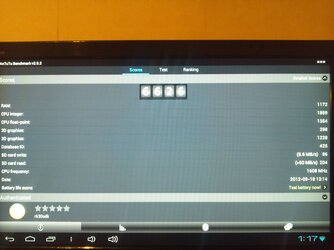

    Antutu Benchmark: 6626 (remarks:rk30sdk is the chip set name of ug802)

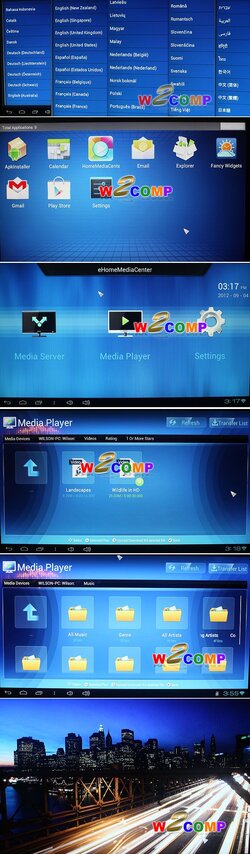

    Here are some screeshots

    Last edited: Sep 18, 2012
