[ROM] S22 (HW-702T) Restore Firmware

Discussion in 'Telechips TCC8902 Development' started by saschab, Jan 14, 2011.

  1. hystrix

    hystrix Member

    Joined:
    Jan 29, 2011
    Messages:
    22
    Likes Received:
    0
    Trophy Points:
    60
    Location:
    Italy
    I can't download the first file, i don't know why..



  2. BernHardN

    BernHardN Member

    Joined:
    Feb 17, 2011
    Messages:
    29
    Likes Received:
    1
    Trophy Points:
    62
    Location:
    Holland
    Tablet / Device:
    winbest telechips 8902 based
  3. sj3sa

    sj3sa Member

    Joined:
    Mar 4, 2011
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    60
    Location:
    mexivo
    Tablet / Device:
    HW-701T tablet
    Hello

    Do you mind sharing how exactly the steps are of fixing the tablet?
    And what files and programs to use? im totally new to the tablet world. computers not
    oh and im runnigng win 7, is that a problem?

  4. hystrix

    hystrix Member

    Joined:
    Jan 29, 2011
    Messages:
    22
    Likes Received:
    0
    Trophy Points:
    60
    Location:
    Italy
    Thank you, i'm downloading it!

  5. BernHardN

    BernHardN Member

    Joined:
    Feb 17, 2011
    Messages:
    29
    Likes Received:
    1
    Trophy Points:
    62
    Location:
    Holland
    Tablet / Device:
    winbest telechips 8902 based
    Hello,
    you need XP for this i Think. and if you downl. the PDF there is a step by step also on page 2 of this tread > http://www.androidtablets.net/forum...s22-hw-702t-restore-firmware-2.html#post40069

  6. sj3sa

    sj3sa Member

    Joined:
    Mar 4, 2011
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    60
    Location:
    mexivo
    Tablet / Device:
    HW-701T tablet

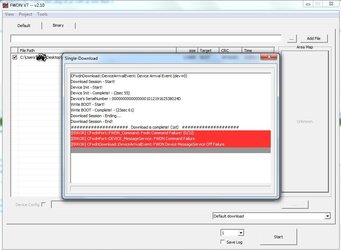

    i get the following error installing the lk.rom in my hw 701-t

  7. BernHardN

    BernHardN Member

    Joined:
    Feb 17, 2011
    Messages:
    29
    Likes Received:
    1
    Trophy Points:
    62
    Location:
    Holland
    Tablet / Device:
    winbest telechips 8902 based
    why you don't put all 3 items in the FWDN?

  8. BernHardN

    BernHardN Member

    Joined:
    Feb 17, 2011
    Messages:
    29
    Likes Received:
    1
    Trophy Points:
    62
    Location:
    Holland
    Tablet / Device:
    winbest telechips 8902 based
    How i did it:

    1* install the VTC driver (for XP)

    2* open FWDN Make it empty (if it was not)

    3* than Drag the Ik.rom, splash.rom and app.rom into FWDN

    4* Connect your Tablet with the USB, and it will be recognized and the driver install will pop up.

    5* in the FWDN the NAND data on the right is displayed and press it

    6* a new screen appears and press create image, success, ok.

    7* in the lower box select "LOW FORMAT WHOLE MEMORY BEFORE DOWNLOAD" ignore the warning.

    8* Start! ignore warnings and errors, at the end there must be "Download session complete"

    9* have fun with your android 2.2!

  9. hystrix

    hystrix Member

    Joined:
    Jan 29, 2011
    Messages:
    22
    Likes Received:
    0
    Trophy Points:
    60
    Location:
    Italy
    BernHardN can please tell me which version is it? I mean Firmware version, Version kernel and build number.
    Thanks

  10. BernHardN

    BernHardN Member

    Joined:
    Feb 17, 2011
    Messages:
    29
    Likes Received:
    1
    Trophy Points:
    62
    Location:
    Holland
    Tablet / Device:
    winbest telechips 8902 based
    Hi, I can't see it now because my tablet blu up!

  11. sj3sa

    sj3sa Member

    Joined:
    Mar 4, 2011
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    60
    Location:
    mexivo
    Tablet / Device:
    HW-701T tablet
    I cant download the app.rom


  12. hystrix

    hystrix Member

    Joined:
    Jan 29, 2011
    Messages:
    22
    Likes Received:
    0
    Trophy Points:
    60
    Location:
    Italy
    Right you wrote it, i just forgot it!

  13. sj3sa

    sj3sa Member

    Joined:
    Mar 4, 2011
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    60
    Location:
    mexivo
    Tablet / Device:
    HW-701T tablet
    Thanks to all who colaborated in this thread! The firmware links, and the instructions and all!
    I got mine working again!!

  14. greenfrogz

    greenfrogz Member

    Joined:
    Jan 15, 2011
    Messages:
    42
    Likes Received:
    2
    Trophy Points:
    72
    Firmware Version: 2.2
    Kernel version: 2.6.32.9 #380
    Build number: Ver 2.2.0128.20101215-161747
    Model Number: Android for S22E (Was Android for S22 before flashing)


    I think it's still Android 2.1. Anyway, I found that this rom is faster, and the keyboard is a lot more accurate. For the software part, the google chinese keyboard is gone.

    Leaving:
    -a note taking program-
    -a game
    -Chinese translated Launcher pro to customize desktop
    -ES File Explorer and Task Manager
    -Touchscreen calibration tools
    -Gallery 3D

    • Like Like x 2
  15. greenfrogz

    greenfrogz Member

    Joined:
    Jan 15, 2011
    Messages:
    42
    Likes Received:
    2
    Trophy Points:
    72
    I flashed my tablet using Windows Vista. If I not mistaken, the error that you are having is because FWDN does not detect the tablet. You need to run the FWDN (Without click Start) and power on the tablet. The right hand panel will change to NAND. After that, press 'Start' and start the flashing process. I do notice the same behavior as mentioned as BernHardN, which is need to repeatedly pressing the power button to keep the tablet power on throughout the flashing process.
