[ROM][WIP][AMPE][NOVA] Phoenix A31 1.00

Discussion in 'Allwinner A31 Based' started by tragidy, Jan 18, 2013.

  1. Dvalin21

    Dvalin21 Senior Member

    Joined:
    Oct 28, 2010
    Messages:
    89
    Likes Received:
    8
    Trophy Points:
    180
    Location:
    NULL
    Thanks for the link!! I stand corrected, the information I had read before was miss leading. I do appreciate the correct inform.

  2. tragidy

    tragidy Junior Member

    Joined:
    Jan 29, 2011
    Messages:
    827
    Likes Received:
    433
    Trophy Points:
    0
    Hi,

    The boot & loader, which is really one but thats a topic for another day... also sys_config.fex has values to tweak before recompile, I wish I had source code to this kernel now instead of later right now all I have is experience with allwinner from day one so lets hope I can work on fumes(tweaks/hacks) for now.

    So in essence there is no way to just provide the /system as it only has a few new apps and anything else detailed below thats just one portion of the rom when it comes to detailing the image file its alot differnt then the basis from CWM for those type roms in which most is configured by an external pre-configured .int file that the coder adds to allow quick fixes instead of recompiling the image file.

    As always just like with other MALI drivers, we can configure most params in a hex mode, or in the config at boot time or flash time.


    If people report wakelocks from the tweaks then we can try other things like disabling super sleep which is enabled by default on the A31
    Code:

    ;---------------------------------------------------------------------------------------------------------
    ; if 1 == standby_mode, then support super standby;
    ; else, support normal standby.
    ;---------------------------------------------------------------------------------------------------------
    [pm_para]
    standby_mode        = 1

    Code:
    We can also adjust voltage sent to system in the image
    ;----------------------------------------------------------------------------------
    ; dvfs voltage-frequency table configuration
    ;
    ; max_freq: cpu maximum frequency, based on Hz, can not be more than 1008MHz
    ; min_freq: cpu minimum frequency, based on Hz, can not be less than 96MHz
    ;
    ; LV_count: count of LV_freq/LV_volt, must be < 16
    ;
    ; LV1: core vdd is 1.26v if cpu frequency is (1104Mhz,  xxxxMhz]
    ; LV2: core vdd is 1.26v if cpu frequency is (1056Mhz,  1104Mhz]
    ; LV3: core vdd is 1.20v if cpu frequency is (912Mhz,   1056Mhz]
    ; LV4: core vdd is 1.10v if cpu frequency is (720Mhz,   912Mhz]
    ; LV5: core vdd is 1.00v if cpu frequency is (480Mhz,   720Mhz]
    ; LV6: core vdd is 0.90v if cpu frequency is (0Mhz,     480Mhz]
    ; LV7: core vdd is 0.90v if cpu frequency is (0Mhz,     480Mhz]
    ; LV8: core vdd is 0.90v if cpu frequency is (0Mhz,     480Mhz]
    ;
    ;----------------------------------------------------------------------------------
    [dvfs_table]
    max_freq = 1104000000
    min_freq = 384000000

    LV_count = 8

    LV1_freq = 1104000000
    LV1_volt = 1300

    LV2_freq = 1056000000
    LV2_volt = 1260

    LV3_freq = 864000000
    LV3_volt = 1200

    LV4_freq = 720000000
     LV4_volt = 1100

    LV5_freq = 480000000
    LV5_volt = 1000

    LV6_freq = 0
    LV6_volt = 1000

    LV7_freq = 0
    LV7_volt = 1000

    LV8_freq = 0
    LV8_volt = 1000

    Now if we had the source we could compile past 1200mhz safely but if we want to be crazy....

    Code:
    [pmu_para]
    pmu_used                   = 1
    pmu_twi_addr               = 0x34
    pmu_twi_id                 = 1
    pmu_irq_id                 = 0
    pmu_battery_rdc            = 100
    pmu_battery_cap            = 8000
    pmu_batdeten               = 1
    pmu_runtime_chgcur         = 900
    pmu_earlysuspend_chgcur    = 900
    pmu_suspend_chgcur         = 1500
    pmu_shutdown_chgcur        = 1500
    pmu_init_chgvol            = 4200
    pmu_init_chgend_rate       = 15
    pmu_init_chg_enabled       = 1
    pmu_init_adc_freq          = 800
    pmu_init_adcts_freq        = 800
    pmu_init_chg_pretime       = 70
    pmu_init_chg_csttime       = 720
    pmu_batt_cap_correct       = 1

    pmu_bat_para1              = 0
    pmu_bat_para2              = 0
    pmu_bat_para3              = 0
    pmu_bat_para4              = 0
    pmu_bat_para5              = 0
    pmu_bat_para6              = 0
    pmu_bat_para7              = 0
    pmu_bat_para8              = 0
    pmu_bat_para9              = 5
    pmu_bat_para10             = 8
    pmu_bat_para11             = 9
    pmu_bat_para12             = 10
    pmu_bat_para13             = 13
    pmu_bat_para14             = 16
    pmu_bat_para15             = 20
    pmu_bat_para16             = 33
    pmu_bat_para17             = 41
    pmu_bat_para18             = 46
    pmu_bat_para19             = 50
    pmu_bat_para20             = 53
    pmu_bat_para21             = 57
    pmu_bat_para22             = 61
    pmu_bat_para23             = 67
    pmu_bat_para24             = 73
    pmu_bat_para25             = 78
    pmu_bat_para26             = 84
    pmu_bat_para27             = 88
    pmu_bat_para28             = 92
    pmu_bat_para29             = 93
    pmu_bat_para30             = 94
    pmu_bat_para31             = 95
    pmu_bat_para32             = 100

    pmu_usbvol_limit           = 0
    pmu_usbcur_limit           = 0
    pmu_usbvol                 = 4000
    pmu_usbcur                 = 0
    pmu_usbvol_pc              = 4400
    pmu_usbcur_pc              = 900
    pmu_pwroff_vol             = 3300
    pmu_pwron_vol              = 2600
    pmu_pekoff_time            = 6000
    pmu_pekoff_func            = 0
    pmu_pekoff_en              = 1
    pmu_peklong_time           = 1500
    pmu_pekon_time             = 1000
    pmu_pwrok_time             = 64
    pmu_battery_warning_level1 = 15
    pmu_battery_warning_level2 = 0
    pmu_restvol_adjust_time    = 30
    pmu_ocv_cou_adjust_time    = 60
    pmu_chgled_func            = 0
    pmu_chgled_type            = 0
    pmu_vbusen_func            = 1
    pmu_reset                  = 0
    pmu_IRQ_wakeup             = 0
    [B]pmu_hot_shutdowm           = 1[/B]
    pmu_inshort                = 0
    power_start                = 0

    What really interesting here is the heatlock, Ive been able to get to 1360~ with pmu_hot_shutdowm

    Set it from
    Code:
    pmu_hot_shutdowm           = [B]1[/B]

    to
    Code:
    pmu_hot_shutdowm           = [B]0[/B]

    Now adjust the Levels and the voltage and you can get some crazy CPU and GPU going on... How safe it is I would say not very..

    To alter the GPU cores to always on its just a switch like this except in hex which yes will use more battery but will render on screen faster, if my priv test goes well we will keep this if not we will revert to automated parellell cpu/gpu

  3. tragidy

    tragidy Junior Member

    Joined:
    Jan 29, 2011
    Messages:
    827
    Likes Received:
    433
    Trophy Points:
    0
    Thank you Tonichiuan Markiasagia I also value your work on the HTC One X very much you are a legend in your own right thanks for the faith in me.

    Yes there will be a download cloud for the peoples republic of china if thats what you mean, if not then yes anyway..

  4. Dvalin21

    Dvalin21 Senior Member

    Joined:
    Oct 28, 2010
    Messages:
    89
    Likes Received:
    8
    Trophy Points:
    180
    Location:
    NULL
    Tragidy,

    Hey question and please I hope you are dont or not being offended about any of the questions or statements. Mainly trying to educate myself, but with the GPU running at max 8 cores (thanks androidjedi ;)) Wouldn't this take away from the battery life or is the a provision in place for that? For instance, say if no gpu intensive software is running at the moment, and its just regular stuff, say background, or live wallpapers etc..., will the gpu adjust to run only on say two cores or will it constantly be running on 8 cores? Thanks in advance.

  5. tragidy

    tragidy Junior Member

    Joined:
    Jan 29, 2011
    Messages:
    827
    Likes Received:
    433
    Trophy Points:
    0
    Unless there is a solder option as far as I know there is no software method to unlock any cores allwinner bought licenses for 8core to be pressed onto the SoC.

    Maybe you are a victim of nonsense being portrayed on other forums, the hardware is as is, I'm not a hardware modder well not for tablets but if there is a solder option surely inform me.

    I can understand you, no worries friend.

    Yes that is what I thought as well the SoC only has the DAiigC for 8 if my memory serves at least in my nova.

    Configured in this term means purchased from the vendor to the tablet hardware.


    Well its all cleared then its 8 cores?

    Yes 8 cores drains more battery life if asked to present otherwise no, perhaps 0.5% impact up to now for basic tasking as the gpu only renders when asked and no app ask for continued rendering except games or animated variant apps.


    I am not offended? I don't understand why you think this? Sorry if you feel this.

    • Like Like x 2
  6. Dvalin21

    Dvalin21 Senior Member

    Joined:
    Oct 28, 2010
    Messages:
    89
    Likes Received:
    8
    Trophy Points:
    180
    Location:
    NULL
    No, you don't make me feel this way, I just don't want to ask any stupid question or try and not ask questions that have already been asked.

  7. tragidy

    tragidy Junior Member

    Joined:
    Jan 29, 2011
    Messages:
    827
    Likes Received:
    433
    Trophy Points:
    0
    I'm going to upload a public test edition for this weekend hopefully NOVA users will enjoy the true power of the device!

    • Like Like x 2
  8. tragidy

    tragidy Junior Member

    Joined:
    Jan 29, 2011
    Messages:
    827
    Likes Received:
    433
    Trophy Points:
    0

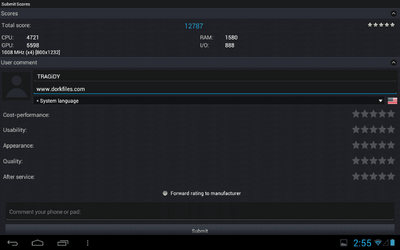

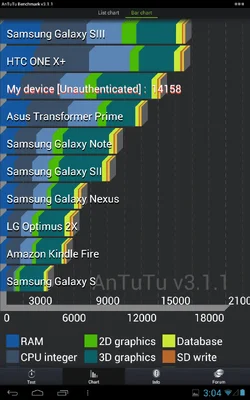

    Initial ROM 12.7k

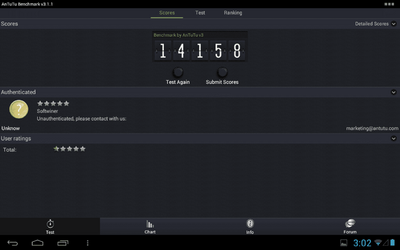

    Performance Mode

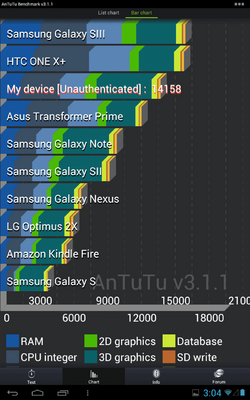

    Compare

  9. androidjedi

    androidjedi Member

    Joined:
    Jan 30, 2013
    Messages:
    81
    Likes Received:
    17
    Trophy Points:
    72
    Location:
    Australia
    Tablet / Device:
    Cubeu30gt, Nova 10 A31
    Hey did you just use an init.d script for the cpu boost, is there kernel support for init.d? I know set cpu can do it manually as well, but I dont like having to start an app just to change max cpu at start

  10. tragidy

    tragidy Junior Member

    Joined:
    Jan 29, 2011
    Messages:
    827
    Likes Received:
    433
    Trophy Points:
    0
    Most certainly not.

  11. tragidy

    tragidy Junior Member

    Joined:
    Jan 29, 2011
    Messages:
    827
    Likes Received:
    433
    Trophy Points:
    0

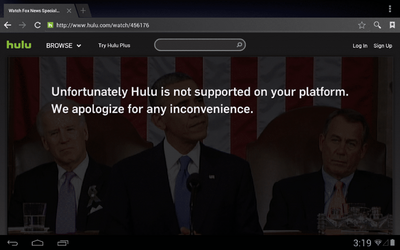

    Stock Flash & ROM with Hulu provides no hulu in browser.

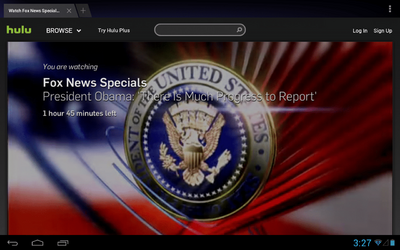

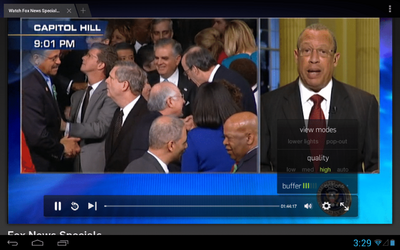

    And fixed, I'm also in Canada.

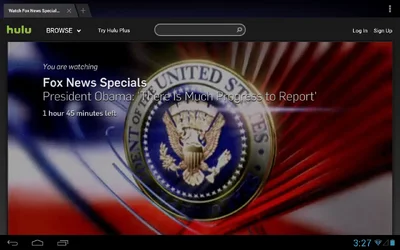

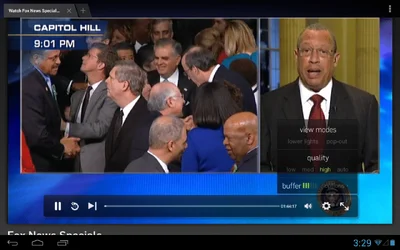

    $Screenshot_2013-02-13-15-27-42.png $Screenshot_2013-02-13-15-29-22.png

  12. androidjedi

    androidjedi Member

    Joined:
    Jan 30, 2013
    Messages:
    81
    Likes Received:
    17
    Trophy Points:
    72
    Location:
    Australia
    Tablet / Device:
    Cubeu30gt, Nova 10 A31
    Ye so what did you do to keep it at that max?

  13. tragidy

    tragidy Junior Member

    Joined:
    Jan 29, 2011
    Messages:
    827
    Likes Received:
    433
    Trophy Points:
    0
    Its not locked, nor is that stated, misread ?

  14. androidjedi

    androidjedi Member

    Joined:
    Jan 30, 2013
    Messages:
    81
    Likes Received:
    17
    Trophy Points:
    72
    Location:
    Australia
    Tablet / Device:
    Cubeu30gt, Nova 10 A31
    Ye but what did you do to make the cpu go that extra cpu step? Did you change something in the kernel?

  15. tragidy

    tragidy Junior Member

    Joined:
    Jan 29, 2011
    Messages:
    827
    Likes Received:
    433
    Trophy Points:
    0

    antutu cpu master for the clock and govener, I would not clock the unit at 1200 then gov to performance which locks it at 1200 always this would be a mistake and should only be engaged for gaming or hardcore multi tasking as the CPU will drain the battery in no time.
