[Solved] Coby Kyros 9740 Stuck on CWM

Discussion in 'Coby Generation 3' started by xanvier, Aug 1, 2013.

Thread Status:
Not open for further replies.
  1. xanvier

    xanvier Member

    Joined:
    Aug 1, 2013
    Messages:
    23
    Likes Received:
    0
    Trophy Points:
    60
    Tablet / Device:
    Coby Kyros 9740
    Last edited: Aug 1, 2013
  2. vampirefo.

    vampirefo. Senior Member Developer

    Joined:
    Nov 8, 2011
    Messages:
    3,828
    Likes Received:
    1,389
    Trophy Points:
    655
    Location:
    Huntington WV
    Tablet / Device:
    Leagoo Lead 1 ZTE OPEN C, Coby 7065, Coby 8042, Coby 9740
    I am impressed, I had talked to Coby sometime ago they told me they would be taken actions eg modifying their tablets to prevent the use of the livesuite and to protect from a certain dev. So this is it, I have looked at your dump and see what they have done, I wont post how to defeat this security.

    I will warn you not to try any roms or any livesuite images, you will regret it.

    your rom is the newest that I have seen

    ro.build.date=Wed Feb 20 18:51:54 CST 2013

  3. vampirefo.

    vampirefo. Senior Member Developer

    Joined:
    Nov 8, 2011
    Messages:
    3,828
    Likes Received:
    1,389
    Trophy Points:
    655
    Location:
    Huntington WV
    Tablet / Device:
    Leagoo Lead 1 ZTE OPEN C, Coby 7065, Coby 8042, Coby 9740
    Ok download and flash below recovery, it will allow you to do what you want, again do not install any roms or livesuite images period.

    9740_secure_recovery_signed.zip

    After you flash new recovery, power off tablet wait 1 minute then restart tablet this will reset one lock on your device, and it will be able to work correctly.

    By the way, your rom is 4.0.4 while other roms are 4.0.3 so I may try and install your rom on my tablet to see if there are any improvements beside the added security.

    Last edited: Aug 1, 2013
    • Like Like x 2
  4. xanvier

    xanvier Member

    Joined:
    Aug 1, 2013
    Messages:
    23
    Likes Received:
    0
    Trophy Points:
    60
    Tablet / Device:
    Coby Kyros 9740
    hello sir, thanks for your reply. here's what i did. i've downloaded 9740_secure_recovery_signed.zip then i "install zip from sdcard" then i select the file that you gave to me. then after i install, i turn off my device in 1 minute then i turn it on after i minute but i still back on cwm. did i do it right sir? sorry for bad english.

    ah sir, is there any software like livesuit that can flash my device even in cwm mode so i can use the file that you gave to me?

    Last edited: Aug 1, 2013
  5. vampirefo.

    vampirefo. Senior Member Developer

    Joined:
    Nov 8, 2011
    Messages:
    3,828
    Likes Received:
    1,389
    Trophy Points:
    655
    Location:
    Huntington WV
    Tablet / Device:
    Leagoo Lead 1 ZTE OPEN C, Coby 7065, Coby 8042, Coby 9740
    in cwm select wipe cache partition

    after wipe cache is done

    mount and storage

    mount /cache

    then reboot system now

  6. xanvier

    xanvier Member

    Joined:
    Aug 1, 2013
    Messages:
    23
    Likes Received:
    0
    Trophy Points:
    60
    Tablet / Device:
    Coby Kyros 9740
    after i
    mount /cache

    it say
    Error mounting /cache!

  7. vampirefo.

    vampirefo. Senior Member Developer

    Joined:
    Nov 8, 2011
    Messages:
    3,828
    Likes Received:
    1,389
    Trophy Points:
    655
    Location:
    Huntington WV
    Tablet / Device:
    Leagoo Lead 1 ZTE OPEN C, Coby 7065, Coby 8042, Coby 9740
    are you sure you flash new recovery?

    do you have adb setup?

  8. xanvier

    xanvier Member

    Joined:
    Aug 1, 2013
    Messages:
    23
    Likes Received:
    0
    Trophy Points:
    60
    Tablet / Device:
    Coby Kyros 9740
    sorry my being noob sir. i only use cwm to flash the file that you gave. i don't get what you by to flash to new recovery and about adb setup. can you guide me sir on how to do it. your the only hope i have to fix my mid9740.

    can i flash the file by using adb shell? if can, what command should i use?

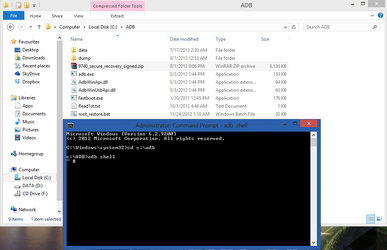

    $Screenshot (78).png

    Last edited: Aug 1, 2013
  9. vampirefo.

    vampirefo. Senior Member Developer

    Joined:
    Nov 8, 2011
    Messages:
    3,828
    Likes Received:
    1,389
    Trophy Points:
    655
    Location:
    Huntington WV
    Tablet / Device:
    Leagoo Lead 1 ZTE OPEN C, Coby 7065, Coby 8042, Coby 9740
    I am working on second hand off to by pass second lock, will be uploaded shortly.

    • Like Like x 2
  10. xanvier

    xanvier Member

    Joined:
    Aug 1, 2013
    Messages:
    23
    Likes Received:
    0
    Trophy Points:
    60
    Tablet / Device:
    Coby Kyros 9740
    thank you sir, i will wait for that.

  11. vampirefo.

    vampirefo. Senior Member Developer

    Joined:
    Nov 8, 2011
    Messages:
    3,828
    Likes Received:
    1,389
    Trophy Points:
    655
    Location:
    Huntington WV
    Tablet / Device:
    Leagoo Lead 1 ZTE OPEN C, Coby 7065, Coby 8042, Coby 9740
    Ok download 9740_update_signed.zip place on your sdcard

    install 9740_update_signed.zip

    in cwm select wipe cache partition

    after wipe cache is done

    mount and storage

    mount /cache

    now install 9740_secure_recovery_signed.zip

    then reboot system now

  12. xanvier

    xanvier Member

    Joined:
    Aug 1, 2013
    Messages:
    23
    Likes Received:
    0
    Trophy Points:
    60
    Tablet / Device:
    Coby Kyros 9740

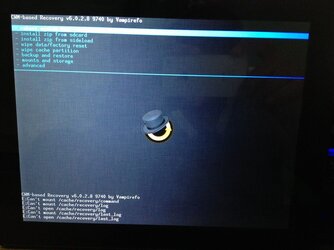

    i made video on how i use the file that you gave to me sir but im still no luck. please watch the video sir and see if im doing it right.


    Last edited by a moderator: Jul 29, 2014
  13. vampirefo.

    vampirefo. Senior Member Developer

    Joined:
    Nov 8, 2011
    Messages:
    3,828
    Likes Received:
    1,389
    Trophy Points:
    655
    Location:
    Huntington WV
    Tablet / Device:
    Leagoo Lead 1 ZTE OPEN C, Coby 7065, Coby 8042, Coby 9740
    You are doing it correct, just your cache isn't mounting so it's blocking the install.

    Ok you have adb working so lets go that route.

    download nand.ko

    place nand.ko on sdcard

    then mount sdcard in cwm

    note using adb type one line at a time press enter after each line, so the command is give to the tablet.

    open terminal

    adb shell

    busybox cp /sdcard/nand.ko /tmp/nand.ko

    chmod 644 /tmp/nand.ko

    insmod /tmp/nand.ko

    lsmod

    mount -t ext4 /dev/block/nandh /cache

    rm -r /cache/*

    now install 9740_secure_recovery_signed.zip

    Below is what the commands look like in terminal.

    Code:
    root@Vamp:/home/vampirefo/Desktop# adb shell
    ~ # busybox cp /sdcard/nand.ko /tmp/nand.ko
    ~ # chmod 644 /tmp/nand.ko
    ~ # insmod /tmp/nand.ko
    ~ # lsmod
    ~ # mount -t ext4 /dev/block/nandh /cache
    ~ # rm -r /cache/*
    ~ #


    Last edited: Aug 1, 2013
  14. xanvier

    xanvier Member

    Joined:
    Aug 1, 2013
    Messages:
    23
    Likes Received:
    0
    Trophy Points:
    60
    Tablet / Device:
    Coby Kyros 9740
    sir, it say permission denied.

    ~ # busybox cp /sdcard/nand.ko /tmp/nand.ko
    busybox cp /sdcard/nand.ko /tmp/nand.ko
    ~ # chmod 644 /tmp/nand.ko
    chmod 644 /tmp/nand.ko
    ~ # /tmp/nand.ko
    /tmp/nand.ko
    /sbin/sh: /tmp/nand.ko: Permission denied
    ~ # mount -t ext4 /dev/block/nandh /cache
    mount -t ext4 /dev/block/nandh /cache
    mount: mounting /dev/block/nandh on /cache failed: No such file or directory
    ~ # rm -r /cache/*
    rm -r /cache/*
    rm: can't remove '/cache/*': No such file or directory
    ~ #


    2nd try

    ~ # busybox cp /sdcard/nand.ko /tmp/nand.ko
    busybox cp /sdcard/nand.ko /tmp/nand.ko
    ~ # chmod 644 /tmp/nand.ko
    chmod 644 /tmp/nand.ko
    ~ # insmod /tmp/nand.ko
    insmod /tmp/nand.ko
    ~ # mount -t ext4 /dev/block/nandh /cache
    mount -t ext4 /dev/block/nandh /cache
    mount: mounting /dev/block/nandh on /cache failed: No such file or directory
    ~ # rm -r /cache/*
    rm -r /cache/*
    rm: can't remove '/cache/*': No such file or directory
    ~ #

    Last edited: Aug 1, 2013
  15. vampirefo.

    vampirefo. Senior Member Developer

    Joined:
    Nov 8, 2011
    Messages:
    3,828
    Likes Received:
    1,389
    Trophy Points:
    655
    Location:
    Huntington WV
    Tablet / Device:
    Leagoo Lead 1 ZTE OPEN C, Coby 7065, Coby 8042, Coby 9740
    look at above commands again

    insmod /tmp/nand.ko you are missing insmod from the command.

    try the commands again.
