Unknown Infotmic Imapx210-Based PCB

Discussion in 'Infotmic Based' started by bmarilli, Sep 2, 2013.

  1. bmarilli

    bmarilli Member

    Joined:
    Sep 2, 2013
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    60
    Tablet / Device:
    Unknown infotmic based board
    Hi,

    I have an InfoTMIC based pcb , driven by a 12 volt power supply that I am suspecting is a custom made infotmic tablet. It has 2 x USB ports as well as an SD card slot.
    If I plug in a pendrive or sd card with a .mov/.avi file it the board will play the file on a screen connected to the vga out. If I power up the board with nothing but the vga connected it gives me a message "Please insert USB or SD Card" and the number "1.0.5" at the top of the screen.

    The board has 1 gig of DDR2 ram, 4 gigs of nand flash, a Chrontel chip for hdmi but the hdmi connector is not soldered on but I suspect it works and has an Infotmic IMAPx210 BM1-80 chip as the cpu? as well as 64 megs of parallel flash memory. It also has a RS232 port which replies in Chines/Japanese/Korean when set to unicode but does not translate to anything meaningful.

    The numbers on the board are EX-75-545G and 20112811_V1.0 and M1301IMAPX210. There are a few more that refer to the Nand and Nor flash

    If anyone can help me identify the board and also help with finding out which software is currently running I would really appreciate it. What I would like to do is upgrade the firmware driving the board to see what else the board can do.

    Many thanks!

    P.S I have tried to upload pictures but the upload always fails. I will try again and see if i can get it to work soon.

  2. bmarilli

    bmarilli Member

    Joined:
    Sep 2, 2013
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    60
    Tablet / Device:
    Unknown infotmic based board

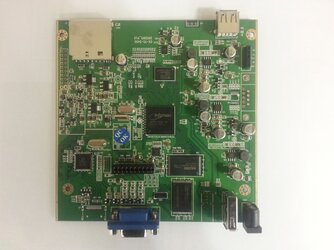

    $20130829_084930.jpg $20130829_084915.jpg

  3. bmarilli

    bmarilli Member

    Joined:
    Sep 2, 2013
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    60
    Tablet / Device:
    Unknown infotmic based board
    After a lot of scratching on the internet it seems that this board could also be a type of media board, similar to the Patriot Box Office but I cannot find any further information on it. The PBO uses a Realtek chip where this board uses an IMAPx210 by Infotm.

    The numbering on the board however is very similar to the PBO's. Any help would be appreciated :D

  4. bmarilli

    bmarilli Member

    Joined:
    Sep 2, 2013
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    60
    Tablet / Device:
    Unknown infotmic based board
    Rs232 to TTL convertor gives me this:

    SBT F01 NOT Found!


    U-Boot 2009.08 (Apr 25 2011 - 12:06:23)(SBT-LINUX)


    CPU : iMAPx200 @ 792 MHz
    FCLK: 1584 MHz, HCLK: 132 MHz, PCLK: 66 MHz
    SDRAM: 256 MB
    MMU : Enabled!!
    Flash: 8 MB
    NAND: 0 MiB
    *** Warning - bad CRC, using default environment

    In: serial
    Out: serial
    Err: serial
    MMC: IMAP_SDHCI: 0
    Net: No ethernet found.
    Try booting from SD ...

    MMC read: dev # 0, block # 1024, count 8 ...
    8 blocks read: OK
    Invalid boot SD!
    Unknown stat code.
    Hit any key to stop autoboot: 0
    ## Booting kernel from Leg
    Image Name: Linux-2.6.31.6
    Image Type: ARM Linux Kernel Image (uncompressed)
    Data Size: 2250180 Bytes = 2.1 MB
    Load Address: 40008000
    Entry Point: 40008000
    Verifying Checksum ... OK
    Loading Kernel Image ... OK
    OK

    Starting kernel ...

    Uncompressing Linux.............................................................
    .............................................................................. d
    one, booting the kernel.
    Linux version 2.6.31.6 (root@ubuntu) (gcc version 4.4.1 (GCC for Cr
    .20090722) ) #1 Mon Aug 15 15:20:23 CST 2011
    CPU: ARMv6-compatible processor [4117b365] revision 5 (ARMv6TEJ), cr=00c5387f
    CPU: VIPT nonaliasing data cache, VIPT nonaliasing instruction cache
    Machine: IMAPX200
    Ignoring unrecognised tag 0x00000000
    Ignoring unrecognised tag 0x54410008
    Memory policy: ECC disabled, Data cache writeback
    CPU IMAPX200 (id 0x13ab2000)
    IMAP Clocks, (c) 2009 Infotm Micro Electronics
    IMAPX200: PLL CLOCKS, APLL 1584.000 MHz, DPLL 480.000 MHz, EPLL 480.000 MHz
    IMAPX200: CPU_CLK 792.000 MHz, HCLK 132.000 MHz, PCLK 66.000 MHz
    iMAPx200: 83886080 bytes SDRAM reserved for memalloc at 0x40684000
    IMAP Power Management, Copyright 2010 Infotm
    Built 1 zonelists in Zone order, mobility grouping off. Total pages: 65024
    Kernel command line: root=/dev/mmcblk0p1 rootfstype=ext3 rootdelay=2 console=tty
    SAC0,115200
    PID hash table entries: 1024 (order: 10, 4096 bytes)
    Dentry cache hash table entries: 32768 (order: 5, 131072 bytes)
    Inode-cache hash table entries: 16384 (order: 4, 6553
    Memory: 256MB = 256MB total
    Memory: 173184KB available (3916K code, 396K data, 112K init, 0K highmem)
    SLUB: Genslabs=11, HWalign=32, Order=0-3, MinObjects=0, CPUs=1, Nodes=1
    NR_IRQS:56
    Console: colour dummy device 80x30
    console [ttySAC0] enabled
    Calibrating delay loop... 791.34 BogoMIPS (lpj=1978368)
    Mount-cache hash table entries: 512
    CPU: Testing write buffer coherency: ok
    NET: Registered protocol family 16
    imapx200: Initialising architecture
    imapx200_dma_init: Registering DMA channels: ok!
    bio: create slab <bi
    SCSI subsystem initialized
    <6>imapx200_iic0 imapx200_iic0: i2c-1: IMAPX200 I2C adapter
    <6>imapx200_iic1 imapx200_iic1: i2c-2: IMAPX200 I2C adapter
    cfg80211: Calling CRDA to update world regulatory domain
    NET: Registered protocol family 2
    IP route cache hash table entries: 2048 (order: 1, 8192 bytes)
    TCP established hash table entries: 8192 (order: 4, 65536 bytes)
    TCP bind hash table entries: 8192 (order: 3, 32768 bytes)
    TCP: Hash tables configured (established 8192 bind 8192)
    TCP reno registered
    NET: Registered protocol family 1
    iMAP PWM Driver Init.
    fuse init (API version 7.12)
    msgmni has been set to 338
    alg: No test for stdrng (krng)
    io scheduler noop registered
    io scheduler anticipatory registered
    io scheduler deadline registered
    io scheduler cfq registered (default)
    Imap Framebuffer Driver Initialization Start :
    Console: switching to colour frame buffer device 90x30
    fb0: imapfb-0 frame buffer device
    fb1: imapfb-1 frame buffer device
    fb2: imapfb-2 frame buffer device
    fb3: imapfb-3 frame buffer device
    Set Lcd Backlight Brightness 75
    Imap Framebuffer Driver Initialization OK!
    hdmi-i2c 1-0038: Device for HDMI TX will be Initializad
    HDMI TX Device - EP932E NOT Found!
    hdmi_i2c_probe: failed to initialize HDMI TX
    brd: module loaded
    loop: module loaded
    gmac-univ Ethernet Driver, V1.1
    eth0: gmac-univ at d0824000 IRQ 32 MAC: 00:1b:fc:eb:92:fa
    PPP generic driver version 2.4.2
    PPP Deflate Compression module registered
    PPP BSD Compression module registered
    PPP MPPE Compression module registered
    NET: Registered protocol fa
    PPPoL2TP kernel driver, V1.0
    SLIP: version 0.8.4-NET3.019-NEWTTY (dynamic channels, max=256).
    CSLIP: code copyright 1989 Regents of the University of California.
    imapx200_ssim imapx200_ssim.0: bitbang at c817fec0
    imapx200_ssim imapx200_ssim.1: bitbang at c821c0c0
    ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
    imapx200_usbhost20 imapx200_usbhost20: Infotm Ehci Controller
    imapx200_usbhost20 imapx200_usbhost20: USB 2.0 started, EHCI 1.00
    hub 1-0:1.0: USB hub found
    hub 1-0:1.0: 4 ports detected
    ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver
    imapx200_usbhost11 imapx200_usbhost11: Infotm Ohci Controller
    hub 2-0:1.0: USB hub found
    hub 2-0:1.0: 4 ports detected
    Initializing USB Mass Storage driver...
    USB Mass Storage support registered.
    mice: PS/2 mouse device common for all mice
    iMAPx200 RTC, (c) 2009, 2014 InfoTM Microelctronics Co., Ltd
    imapx200_rtc imapx200_rtc: rtc core: registered imap as rtc0
    Linux video capture interface: v2.00
    USB Video Class driver (v0.1.0)
    cpuidle: using governor ladder
    [SDHCI0]:infoTM sdhci host driver init.
    mmc0: SDHCI controller on info_sdi [imapx200_sdi.0] using ADMA
    [SDHCI1]:infoTM sdhci host driver init.
    mmc1: SDHCI controller on info_sdi [imapx200_sdi.1] using ADMA
    usbhid: v2.6:USB HID core driver
    Advanced Linux Sound Architecture Driver Version 1.0.20.
    No device for DAI imapx200-i2s
    cs42l51-codec 1-004a: failed to read I2C
    asoc: cs42l51-hifi <-> imapx200-i2s mapping ok
    ALSA device list:
    #0: imapx200 (CS42L51)
    TCP cubic registered
    NET: Registered protocol family 17
    RPC: Registered udp transport module.
    RPC: Registered tcp transport module.
    VFP support v0.3: implementor 41 architecture 1 part 20 variant b rev 5
    imapx200_rtc imapx200_rtc: hctosys: invalid date/time
    Waiting 2sec before mounting root device...
    mmc0: new high speed SD card at address 0007
    mmcblk0: mmc0:0007 SD02G 1.84 GiB
    mmcblk0: p1
    kjournald starting. Commit interval 5 seconds
    EXT3-fs warning: maximal mount count reached, running e2fsck is recommended
    EXT3 FS on mmcblk0p1, internal journal
    EXT3-fs: recovery complete.
    EXT3-fs: mounted filesystem with writeback data mode.
    VFS: Mounted root (ext3 filesystem) on device 179:1.
    Freeing init memory: 112K

  5. bmarilli

    bmarilli Member

    Joined:
    Sep 2, 2013
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    60
    Tablet / Device:
    Unknown infotmic based board
    I can cancel the boot by pressing any key but would like to know if I can make a bootable sd card and run a linux version on the board. If someone could tell me which linux version it would be great.

  6. leeb

    leeb Member

    Joined:
    Jul 16, 2011
    Messages:
    463
    Likes Received:
    21
    Trophy Points:
    87
    Well, it seems to be running Linux of some sort already...
    Have you connected a monitor to it 2c if the display has anything on it?

  7. bmarilli

    bmarilli Member

    Joined:
    Sep 2, 2013
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    60
    Tablet / Device:
    Unknown infotmic based board
    Yes I have, from the VGA output with no USB plugged in it shows the message "Please insert USB or SD Card" and the number "1.0.5" and stay there. I have been messing around and managed to get into a U-Boot running on the board and it comes up with the following from a ls command:

    / # ls
    billboard etc lost+found proc Settings usr
    bin home media root srv var
    boot lib mnt sbin sys xx
    dev linuxrc opt sbt_app tmp

    Also did a ls -R and it dumped a couple of thousand lines. I am now thinking this is a patriot PBO running on an Infotmic IMAPx200 chip that was never released. Going to continue messing with it to see what else is in there.

  8. popmbsa

    popmbsa Member

    Joined:
    Jan 10, 2014
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    35
    Have you had any luck with with this pcb

  9. bmarilli

    bmarilli Member

    Joined:
    Sep 2, 2013
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    60
    Tablet / Device:
    Unknown infotmic based board
    Nope, unfortunately not. Cannot find anyone else on the web who has one either.

  10. vtanduser

    vtanduser Member

    Joined:
    Mar 4, 2014
    Messages:
    1
    Likes Received:
    1
    Trophy Points:
    37
    Hi,
    Setup your console( Terminal) to VT100/200/220 and you will see correct info.
    Connect USB keyboard and VGA monitor and console and you will be able to see root.
    I have the same board and can do with it what I want
    Thanks

    • Like Like x 2
  11. popmbsa

    popmbsa Member

    Joined:
    Jan 10, 2014
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    35
    If you could, please reply to this with a step by step procedure. I would appreciate a little more details to help me find a use for this board. Thank you.

  12. bmarilli

    bmarilli Member

    Joined:
    Sep 2, 2013
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    60
    Tablet / Device:
    Unknown infotmic based board
    Thanks for the tips, I will give it a try this week!

  13. 5ft24

    5ft24 Junior Member

    Joined:
    Oct 16, 2016
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    22
    I know this thread is ancient, but wondering if you were ever able to make headway getting in to it. I'm a slot machine service technician, and Bally uses these in their machines to loop short videos on the "topper" monitors... The game.name/logo and whatever motions etc. We have them go bad often, and I'm looking to see if there may be a way to reflash them if there isn't a hardware failure.
    Thanks

    Sent from my SM-N920V using Tapatalk
