What's under the hood of the Acer Iconia Tab A500

Discussion in 'Acer Iconia Tab A500 Forum' started by wilson2015, Apr 24, 2011.

  1. wilson2015

    wilson2015 Member

    Joined:
    Apr 24, 2011
    Messages:
    3
    Likes Received:
    10
    Trophy Points:
    62
    Tablet / Device:
    Nexus One, T-mobile G2. Acer Iconia Tab A500
    [​IMG]

    [​IMG]

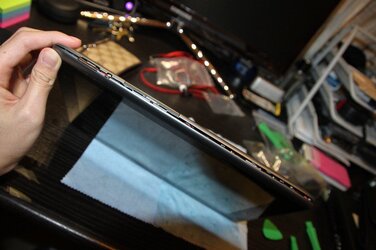

    Crack the sides to open

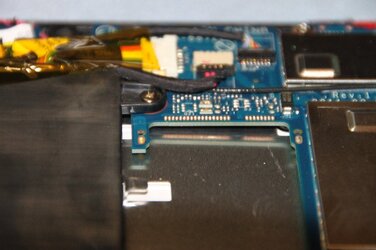

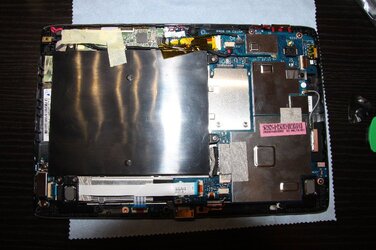

    Motherboard, Battery, etc...

    This is a Wi-Fi version, it doesn't have the cellular module for mobile data.

    The manufacture date was 2011-02-11(version 1.0)

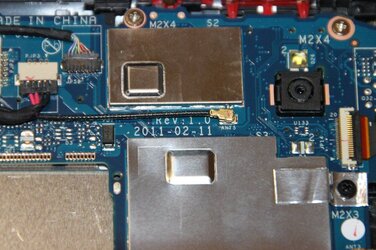

    Right side is the camera with LED flash light

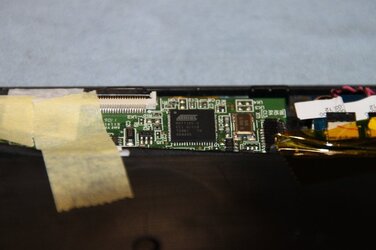

    Atmel mxt1386 chip-set for multi-touch screen solution.



    [​IMG]

    Last edited: Apr 25, 2011
    • Like Like x 20
  2. frapshake

    frapshake Senior Member

    Joined:
    Apr 22, 2011
    Messages:
    244
    Likes Received:
    35
    Trophy Points:
    102
    Location:
    Pacific Northwest
    Tablet / Device:
    Acer Iconia A500, Samsung Galaxy Tab 7.0 Plus
    Thank you, Wilson! This is very interesting. I wondered how these looked inside. Nice pictures.

  3. Royeight

    Royeight Member

    Joined:
    Apr 27, 2011
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    60
    Location:
    Singapore
    Tablet / Device:
    Acer Iconia A500
    Thanks for sharing bro! Looks intresting!

  4. Icebike

    Icebike Senior Member

    Joined:
    Apr 28, 2011
    Messages:
    1,523
    Likes Received:
    186
    Trophy Points:
    310
    Oops there goes your warranty, but thanks for these pics. Any links to high resolution images would be very welcome.

  5. AQ_OC

    AQ_OC Member

    Joined:
    May 14, 2011
    Messages:
    313
    Likes Received:
    8
    Trophy Points:
    87
    Location:
    Greenville, SC
    Tablet / Device:
    Acer A500
    Any idea where the GPS, Bluetooth, and WIFI antennas are?

  6. MrBlazito

    MrBlazito Member

    Joined:
    May 8, 2011
    Messages:
    94
    Likes Received:
    3
    Trophy Points:
    72
    I doubt this will void the warranty as he didn't break any seals.

    Thanks for sharing.

  7. Samoa Joe

    Samoa Joe Member

    Joined:
    May 16, 2011
    Messages:
    74
    Likes Received:
    0
    Trophy Points:
    70
    Location:
    Pittsburgh
    Tablet / Device:
    ROOTED Acer Iconia A500
    Great pictures!

    -Joe.

  8. robdroid

    robdroid Member

    Joined:
    May 4, 2011
    Messages:
    141
    Likes Received:
    13
    Trophy Points:
    87
    Location:
    USA
    Tablet / Device:
    Nook Color
    Wilson....
    What device/tool did you use to separate the two case half's?
    I see some plastic tools on your bench...

  9. chili_red

    chili_red Member

    Joined:
    Apr 27, 2011
    Messages:
    22
    Likes Received:
    1
    Trophy Points:
    62
    Location:
    Mississippi
    Tablet / Device:
    Acer Iconia A500, Viewsonic G-Tab
    • Like Like x 2
  10. robdroid

    robdroid Member

    Joined:
    May 4, 2011
    Messages:
    141
    Likes Received:
    13
    Trophy Points:
    87
    Location:
    USA
    Tablet / Device:
    Nook Color
  11. Bec

    Bec Member

    Joined:
    May 26, 2011
    Messages:
    10
    Likes Received:
    0
    Trophy Points:
    60
    Thanks a lot for this teardown!

    I have another question, the internal memory is said to be eMMC, is it removable/upgradeable?

  12. Sleven

    Sleven Member

    Joined:
    Jul 2, 2011
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    60
    Location:
    Kite Ky
    Tablet / Device:
    acer a500
    sorry ima noob to posting on sites but i was wondering
    if theres any details to the hardrive like size and if its replacable or not
    and also thank you very much for the teardown very nice work

  13. fusepopper

    fusepopper Member

    Joined:
    Aug 6, 2011
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    60
    Location:
    Atlanat, GA
    Tablet / Device:
    Acer Iconia A500 running Honeycomb 3.1
    Thanks for the great pics! Was the unit easy to reassemble? Mine had an unplanned descent to the floor and now one corner will not pop back together completely. With the power button at upper right the problematic corner is the upper left. Any suggestions? Once again thanks for the pics.

  14. Centurian

    Centurian Member

    Joined:
    Aug 7, 2011
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    60
    Location:
    Peterborough, Ont
    Does anyone knows were the GPS antenna it's located???????

  15. Louies

    Louies Member

    Joined:
    Aug 25, 2011
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    60
    Tablet / Device:
    Acer Iconia tab
    Hello Guys,

    I just bought an Iconia, but a bit confused as how the UBS works. It has a UBS port, and my understanding is that if I plug in a portable hard drive such as a memory stick or a storage device, I would be able to see and subsequently transfer some of the files to my tablet. However, the tablet doesn't recognize the UBS. It keeps asking for the sdcards. Does that mean if I want to move some of my files from my UBS memory stick over, I first need to move them into the sdcards, then over the tablet?


    Any suggestion is highly appreciated
