Crystalview Tablet EP-4/5522 USB adapter

Dec 1, 2014
5
0
I am looking for an Ethernet/USB adapter for a CRYSTALVIEW EP-4/5522 tablet. Any ideas?

I want to connect an USB keyboard to the tablet using the proprietary port (non standard port) located on the side of the tablet. Unfortunately my tablet is an older model which did not include a built in USB port. Newer models have the USB port installed.

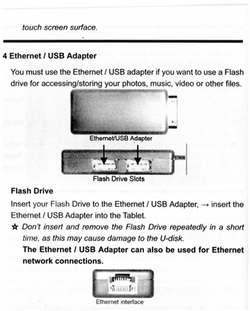

The owners manual shows an Ethernet/USB adapter but I don't have a part number. See picture below;

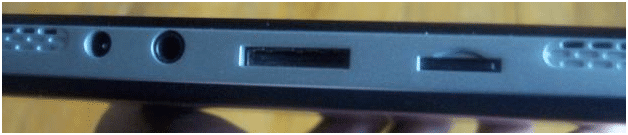

Side view of the tablet, non standard port located between the headphone jack and Mirco SD card, I don't think it is a 30 pin connection, see white arrow below.


Thanks,

Mike from Cleveland


Attachments

  • upload_2014-12-1_16-47-48.png
    55.6 KB · Views: 139
  • upload_2014-12-1_16-50-47.png
    38.5 KB · Views: 141

PitCarver

Super Moderator
Staff member
May 9, 2014
553
70
Welcome to the forum, Mike.
If your existing cable has a standard USB plug to connect to a computer, you could try a male to female adaptor.

Dec 1, 2014
5
0
Unfortunately an USB connection will not fit into the tablet's side port. The tablet's port almost looks like a 30 pin Ipad connection.


PitCarver

Super Moderator
Staff member
May 9, 2014
553
70
Did the tablet come with a connecting cable? Use the USB adaptor on the end of it, to attach the keyboard.
