semi bricked Pendo pad

Discussion in 'Rockchip RK2818 Tablets' started by Harachai, Aug 9, 2012.

  1. Harachai

    Harachai Member

    Joined:
    Aug 9, 2012
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    60
    In its current state it is , semi bricked, it was fully bricked but using the needle trick i was able to get it partially recognised
    boot code test ok
    but fails at id block writing for any image i try
    RKAndroidDM program fails to recognise it, even while using the needle trick
    what RKAndroidBatchUpgrade 1.23 looks like when i try to use it with an image from the pad site
    Pendo Industries Pty Ltd. PendoPad Firmware - Downloads - Support Pendo Industries Pty Ltd.
    $Rk2818 batch upgrade.jpg
    when i try to use RKAndroidTool_v1.23 (found one that gives english errors)
    i get this
    $RKAndroidTool v1.23.jpg
    for a brief moment it went as far as the batch tool but both get
    Start writing ID BLOCK...
    WRITING ID BLOCK fail.

    pad details :
    Here are the details for the pad

    cpu: 1ghz
    memory: 256mb
    Nandflash HDD : 2gb
    card slot: microcard sd slot
    screen: 800x480 7inch blue led, resistive
    modem : unknown
    G-sensor
    Model number : TPC7SLV

    $IMG00028-20111106-1624.jpg top view
    $IMG00030-20111106-1626.jpg Port veiw : left to right power, USB (modem?), on/off, usb (data), card, microphone

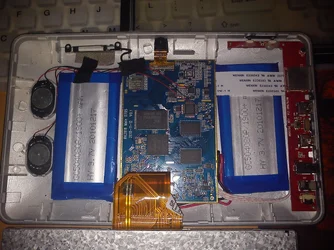

    $IMG_20120809_175629.jpg Inside view
    http://i47.tinypic.com/b695ra.jpg
    link for chip view

    when i did cat /proc/mtd on the tablet before i bricked it i got
    mtd0: 00002000 00000010 "misc"
    mtd1: 00004000 00000010 "kernel"
    mtd2: 00002000 00000010 "boot"
    mtd3: 00004000 00000010 "recovery"
    mtd4: 00030000 00000010 "system"
    mtd5: 0003a000 00000010 "backup"
    mtd6: 0003a000 00000010 "cache"
    mtd7: 00100000 00000010 "userdata"
    mtd8: 00cbc000 00000010 "user"
    mtd9: 00020000 00000010 "pagecache"
    mtd10: 00020000 00000010 "swap"

    nothing in the backup that i could get to.

    Any help on how i can unbrick it, or how to get the write ID block to not fail?

    Thanks!
