What pinouts in 10-pin connector?

Ghostik201

Member
Nov 6, 2012
4
0
Hi!

I need your help!
I want to make a docking station in the car,
to connect the tablet(Huawei IDEOS S7 Slim) as a navigator in the car and the power(and usb-host, and others) was a 10pin connector
You know the pinout in 10-pin connector?


Thanks!
P.S.Sorry for the english, I'm from Russia :) $штекер.JPG


Adagio

Member
Nov 13, 2012
1
0
Any progress?? If you find out annything, Let me know, I actually want to do the exact same thing, although I dont have a car...
Tanx!


Ghostik201

Member
Nov 6, 2012
4
0
Hi,Adagi.
Thanks to the community Russian craftsmen, progress is evident!

А special thank you NAIVniy666
All headway ..
Quote: "made ​​some progress with respect to the connector:

the remaining contacts rather strange, intermittent signal, and there is little stress on 5th contact (1.8 volts to ground). In the 6 and 8, to listen and to tx + \ - periodically.Land one at all (with yusb and audio identity through prozvanivatsya) I think somewhere in there and dug yusb ... but check for sure until I can not. "

Already obtained the power and access to portable speakers (booster) are possible!
It remains only to usb-host find almost everything.
Connectors battery from motorola l6 \ A7-perfect for the plug(in docking station)
Link.
P.S.Russia rules!!

Last edited:

Ironwave

Member
Dec 29, 2012
2
0
Hi there.

Can anyone confirm that I understand this pin out readings correctly?

1 = + right channel Speaker output.
3 = + left channel Speaker output.
2,4,6 = ground, probably ground for the right and left channel too.

Now the part I'm really unsure of and that is potentially critical.

9 = - 5v possibly I can just ground this normally and it will be good enough?
10 = + 5v

9, 10 will charge the tablet, correct?

I did have a look at the Russian link, impressive mod this person did. I can understand no more unfortunately, even with google translator.

Hope I can get help, and I will post a detailed 'how to' then.


Ghostik201

Member
Nov 6, 2012
4
0
Hi,I'am Taifunfly :) (Ghostik201=Taifunfly)
The tablet is being charged is a big plus!
Trying to find the right contacts for usb-otg, but so far all tchetno ..
BUT, what I found .. at random .. AV-out!
If it is possible to somehow get the opposite effect, I will make the camera for a video recorder .. : D

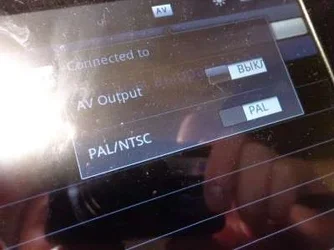

In fact, the closure of 4 and 5 contacts on the tablet icon comes in "AV" (next to the icon "WIFI") Clicking on it goes menu with this option enabled and the change PAL \ NTSC

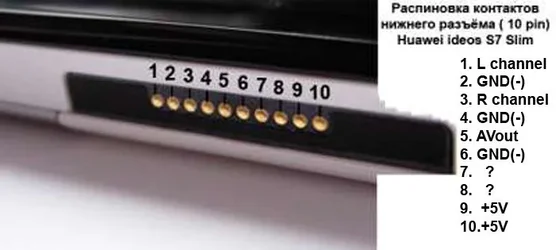

Now look pinout.$Распиновка раз&#10.jp$AV-OUT.jpg


Ghostik201

Member
Nov 6, 2012
4
0
Hi there.

Can anyone confirm that I understand this pin out readings correctly?

1 = + right channel Speaker output.
3 = + left channel Speaker output.
2,4,6 = ground, probably ground for the right and left channel too.
Yes, but the sound comes through the portable speakers, only 3,5 jack inserted in huawei ideos s7 slim ...
