ClockworkMod Recovery with Touch Support for Allwinner A10-based Tablet

[semibraniac]

Will this work on the HKC M701, another AllWinner A10 based tablet?

Here are the full specs :

System
SDK Version : 2.3.4
ID : GRJ22
OS name : Linux
OS version : 2.6.36-android
Dalvik VM version : 1.4.0

Device
Model : M701
Product : crane_evb
Board:Crane
Brand:iNet
Fingerprint: iNet/crane_evb/crane-evb:2.3.4/GRJ22/eng.inet._qgb.20111203.112042:eng/test-keys

CPU
Name : ARMv7 Processor rev 2 (v7l)
Current freq.: 1200 MHz
Max freq.: 1200 MHz
Min freq.: 60 Mhz
Cores : 1
Cores available to Java : 1
Architecture : 7
BogoMIPS : 1005.97
Hardware: sun4i
Revision : 2



[KillerKink]

Will this work on the HKC M701, another AllWinner A10 based tablet?

Here are the full specs :

System
SDK Version : 2.3.4
ID : GRJ22
OS name : Linux
OS version : 2.6.36-android
Dalvik VM version : 1.4.0

Device
Model : M701
Product : crane_evb
Board:Crane
Brand:iNet
Fingerprint: iNet/crane_evb/crane-evb:2.3.4/GRJ22/eng.inet._qgb.20111203.112042:eng/test-keys

CPU
Name : ARMv7 Processor rev 2 (v7l)
Current freq.: 1200 MHz
Max freq.: 1200 MHz
Min freq.: 60 Mhz
Cores : 1
Cores available to Java : 1
Architecture : 7
BogoMIPS : 1005.97
Hardware: sun4i
Revision : 2

looks compatible though I am a little out of time at the moment and there a two more CWM request so it might take while before I can work on yours.



[alexgrunge13]

Hi,

Can you help me, please?

I would like to have this recovery working on my tablet. It has only two physical buttons and one is not working. So I need the recovery with touch screen support.

This is the model of my tablet (link below) and it is very similar to Dropad A10 Butterfly (Dropad A10 Butterfly Android Tablet Technical Specifications | Pinoy Technologies).

EVERTEK S.A

LSMOD
$ export PATH=/data/local/bin:$PATH
$ lsmod
8192cu 453801 0 - Live 0xbf0f8000
mcs7830 5089 0 - Live 0xbf0f1000
qf9700 5234 0 - Live 0xbf0ea000
rtl8150 8232 0 - Live 0xbf0e2000
asix 15585 0 - Live 0xbf0d8000
usbnet 12630 3 mcs7830,qf9700,asix, Live 0xbf0cd000
sun4i_csi0 24387 0 - Live 0xbf0c1000
gc0308 10305 1 - Live 0xbf0b8000
gt2005 10861 1 - Live 0xbf0af000
videobuf_dma_contig 2946 1 sun4i_csi0, Live 0xbf0a9000
videobuf_core 13567 2 sun4i_csi0,videobuf_dma_contig, Live 0xbf09f000
mma7660 3860 0 - Live 0xbf099000
mali 111127 2 - Live 0xbf06f000
ump 22476 13 mali, Live 0xbf062000
sun4i_keyboard 1867 0 - Live 0xbf05c000
goodix_touch 7919 0 - Live 0xbf055000
hdmi 14243 0 - Live 0xbf04b000
lcd 2559 0 - Live 0xbf045000
disp 210830 9 hdmi,lcd, Live 0xbf000000
$
cat /system/usr/keylayout/sun4i-keyboard.kl
key 102 HOME WAKE
key 1 BACK WAKE
key 139 MENU WAKE_DROPPED
key 115 VOLUME_UP
key 114 VOLUME_DOWN
Android version is 2.3.4 and screen resolution is 800x480.
fingerprint=GENESIS/crane_genesis/crane-genesis:2.3.4/GRJ22/eng.root.20120117.140742:eng/test-keys


Thank you.



[KillerKink]

Hi,

Can you help me, please?

I would like to have this recovery working on my tablet. It has only two physical buttons and one is not working. So I need the recovery with touch screen support.

This is the model of my tablet (link below) and it is very similar to Dropad A10 Butterfly (Dropad A10 Butterfly Android Tablet Technical Specifications | Pinoy Technologies).

EVERTEK S.A

LSMOD
$ export PATH=/data/local/bin:$PATH
$ lsmod
8192cu 453801 0 - Live 0xbf0f8000
mcs7830 5089 0 - Live 0xbf0f1000
qf9700 5234 0 - Live 0xbf0ea000
rtl8150 8232 0 - Live 0xbf0e2000
asix 15585 0 - Live 0xbf0d8000
usbnet 12630 3 mcs7830,qf9700,asix, Live 0xbf0cd000
sun4i_csi0 24387 0 - Live 0xbf0c1000
gc0308 10305 1 - Live 0xbf0b8000
gt2005 10861 1 - Live 0xbf0af000
videobuf_dma_contig 2946 1 sun4i_csi0, Live 0xbf0a9000
videobuf_core 13567 2 sun4i_csi0,videobuf_dma_contig, Live 0xbf09f000
mma7660 3860 0 - Live 0xbf099000
mali 111127 2 - Live 0xbf06f000
ump 22476 13 mali, Live 0xbf062000
sun4i_keyboard 1867 0 - Live 0xbf05c000
goodix_touch 7919 0 - Live 0xbf055000
hdmi 14243 0 - Live 0xbf04b000
lcd 2559 0 - Live 0xbf045000
disp 210830 9 hdmi,lcd, Live 0xbf000000
$
cat /system/usr/keylayout/sun4i-keyboard.kl
key 102 HOME WAKE
key 1 BACK WAKE
key 139 MENU WAKE_DROPPED
key 115 VOLUME_UP
key 114 VOLUME_DOWN
Android version is 2.3.4 and screen resolution is 800x480.
fingerprint=GENESIS/crane_genesis/crane-genesis:2.3.4/GRJ22/eng.root.20120117.140742:eng/test-keys


Thank you.

pls provide the following:

adb shell ls /dev/block/nand*



[alexgrunge13]

Hello,

Would you mind to say if is this information that you want?
I don't have ADB installed on my computer at my work, so I made this with android terminal on my tablet.

$ ls /dev/block/nand*
/dev/block/nanda
/dev/block/nandb
/dev/block/nandc
/dev/block/nandd
/dev/block/nande
/dev/block/nandf
/dev/block/nandg
/dev/block/nandh
$

Thanks for your help.



[KillerKink]

Hello,

Would you mind to say if is this information that you want?
I don't have ADB installed on my computer at my work, so I made this with android terminal on my tablet.

$ ls /dev/block/nand*
/dev/block/nanda
/dev/block/nandb
/dev/block/nandc
/dev/block/nandd
/dev/block/nande
/dev/block/nandf
/dev/block/nandg
/dev/block/nandh
$

Thanks for your help.

You should be able to get the touch to work by selecting p76ti as your device. However, do you still have your original firmware? Its better that you have option to revert in case of issue which I dont expect though.



[alexgrunge13]

You should be able to get the touch to work by selecting p76ti as your device. However, do you still have your original firmware? Its better that you have option to revert in case of issue which I dont expect though.

Thank you very much. Your are making a awesome work here.
I have my original firmware, so I'll make a try.

Thanks again.



[keba]

Dear Killerkink,

Here is my KNC MD710 info:

# lsmod

lsmod
8192cu 487725 0 - Live 0xbf113000
gps 116358 0 - Live 0xbf0ee000 (F)
mcs7830 5089 0 - Live 0xbf0e7000
qf9700 5234 0 - Live 0xbf0e0000
rtl8150 8232 0 - Live 0xbf0d8000
asix 15585 0 - Live 0xbf0ce000
usbnet 12630 3 mcs7830,qf9700,asix, Live 0xbf0c3000
sun4i_csi0 24387 0 - Live 0xbf0b7000
gc0308 10297 1 - Live 0xbf0ae000
videobuf_dma_contig 2946 1 sun4i_csi0, Live 0xbf0a8000
sun4i_vibrator 1656 0 - Live 0xbf0a2000
mma7660 4755 0 - Live 0xbf09b000
mali 111351 2 - Live 0xbf071000
ump 22632 21 mali, Live 0xbf064000
sun4i_keyboard 1859 0 - Live 0xbf05e000
goodix_touch 6799 0 - Live 0xbf057000
hdmi 14243 0 - Live 0xbf04d000
lcd 2559 0 - Live 0xbf047000
disp 217725 9 hdmi,lcd, Live 0xbf000000

# cat /system/usr/keylayout/sun4i-keyboard.kl

cat /system/usr/keylayout/sun4i-keyboard.kl
key 102 HOME WAKE
key 115 BACK WAKE
key 114 MENU WAKE_DROPPED
key 1 VOLUME_UP
key 11 VOLUME_DOWN

i think sth wrong here due to my tablet only have 3 physic buttons Power - menu and back that all! The key 1 and key 11 must be invisible.

# ls /dev/block/nand*

ls /dev/block/nand*
/dev/block/nanda
/dev/block/nandb
/dev/block/nandc
/dev/block/nandd
/dev/block/nande
/dev/block/nandf
/dev/block/nandg
/dev/block/nandh

i try the apk @ first post and choose as P76Ti it install OK, reboot OK but not enter recovery console just black screen! Pls help!

Many Thanks and Best Regards



[KillerKink]

Dear Killerkink,

Here is my KNC MD710 info:

# lsmod


# cat /system/usr/keylayout/sun4i-keyboard.kl

i think sth wrong here due to my tablet only have 3 physic buttons Power - menu and back that all! The key 1 and key 11 must be invisible.

# ls /dev/block/nand*


i try the apk @ first post and choose as P76Ti it install OK, reboot OK but not enter recovery console just black screen! Pls help!

Many Thanks and Best Regards

please provide the following(rootfs.img):

adb shell busybox dd if=/dev/block/nandb of=/sdcard/knc_mdd710_rootfs.img



[keba]

please provide the following(rootfs.img):

adb shell busybox dd if=/dev/block/nandb of=/sdcard/knc_mdd710_rootfs.img

here sir: knc_md710_rootfs.img

Many Thanks.

P/S: one again, pls ignore the volume + and - button, my tab only 3 physical buttons, Power, Menu and Back!



[kriaz]

any luck on ployer momo9c ?

ClockworkMod Recovery works on this tablet through adb recovery.cpio. can your touch version run on it my device is 97f1



[CurlyCoconutTree]

- Traditional Chinese translation
- Support Devices: Teclast P76ti, Yinlips YDPG-18, Polaroid PMID701c

Current Release: v1.22

I have successful ported the CWM with Touch support for Teclast P76ti and planned to extend this to other A10-based tablets. If you have one of those and wish to run CWM on it, do let me know.

Note that this is only applicable for tablet with screen resolution of 800x480. Other resolution is possible but not at the moment.

What I need is the following:

1. your touchscreen controller

do a "lsmod" using android terminal or adb

2. your keyboard mapping file(/system/usr/keylayout/sun4i-keyboard.kl)

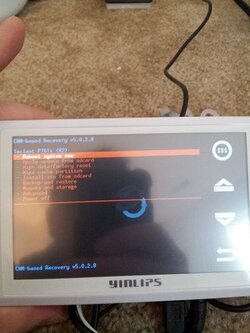

Hi! I used the apk linked above to install CWM to my YINLIPS YDPG-18 A10. When I boot into recovery through your app, recovery says my device is a Teclast. None of the inputs work (screen, buttons) with the exception of analog stick down. This seems to act as enter/accept/ok, because it reboots the system as that is the first option highlighted.



Also, prior to the 2.3.4 offical update, the YINLIPS could be booted into a recovery mode via MENU + HOME + Power (when the device was powered off). Now this causes problems and freezes some peoples consoles. I haven't bothered... and don't think I will bother trying that combo until someone can figure out why that happened.



[keba]

Hope that you guys have a nice weekend! Do we have any good news for KNC tablets? Can't wait to touch the recovery with it!



[KillerKink]

Hope that you guys have a nice weekend! Do we have any good news for KNC tablets? Can't wait to touch the recovery with it!

Very sorry. Didnt have time to look into recovery. working on my rom.



[keba]

Very sorry. Didnt have time to look into recovery. working on my rom.

Thanks anyway. Hope that you can help later when done your stuffs!!!
