galaxy note 8 stuck in system recovery mode

Discussion in 'Android Tablet Q&A' started by xuam, Nov 24, 2015.

  1. xuam

    xuam Junior Member

    Joined:
    Nov 24, 2015
    Messages:
    9
    Likes Received:
    0
    Trophy Points:
    2
    tablet doesn't turn on and when it finally does robot is on his back in background , and there is a red triangle over his chest with a black exclamation point in it

    anyhow just gives me options :

    reboot system now
    apply update from adb
    apply update from external storage
    wipe data/factory reset
    wipe cache partition
    apply update from cache

    i have literally tried them and and the thing still doesn't come on why?? what do i do ?

    oh yeah also says at the bottom of tablet

    E: failed to mount /efs (invalid argument)
    # manual mode#
    --appling multi-csc...
    applied the csc-code : unknown
    successfully applied multi-csc.

  2. Traveller

    Traveller Super Moderator Staff Member

    Joined:
    Jun 16, 2012
    Messages:
    2,275
    Likes Received:
    877
    Trophy Points:
    460
    Tablet / Device:
    Coby Kyros MID9742, Dell Streak 5, Samsung Galaxy S4, Nexus 6
    Your tablet should have a download mode separate from the recovery. Download the latest stock ROM for your tablet from sammobile.com's Firmware section and install it to your tablet using the original USB cable and the Odin software package.

  3. xuam

    xuam Junior Member

    Joined:
    Nov 24, 2015
    Messages:
    9
    Likes Received:
    0
    Trophy Points:
    2
    I don't mean to sound totally dumb but, how do I get it into download mode?

  4. Traveller

    Traveller Super Moderator Staff Member

    Joined:
    Jun 16, 2012
    Messages:
    2,275
    Likes Received:
    877
    Trophy Points:
    460
    Tablet / Device:
    Coby Kyros MID9742, Dell Streak 5, Samsung Galaxy S4, Nexus 6
    Press and hold volume down and power. If that doesn't work, then use volume down, home, and power.

    You'll see a warning screen with the option to press up to enter download mode, or press down to restart. Press volume up.

  5. xuam

    xuam Junior Member

    Joined:
    Nov 24, 2015
    Messages:
    9
    Likes Received:
    0
    Trophy Points:
    2
    • Yes I've done that , but the only thing it's says is "downloading " "do not turn off target" ..and of course has the little Android man there.
    • But it still doesn't work


  6. xuam

    xuam Junior Member

    Joined:
    Nov 24, 2015
    Messages:
    9
    Likes Received:
    0
    Trophy Points:
    2
    ive tried it but unfortunately it doesnt recognize the tablet when i plug it in so odin doesnt see it

  7. xuam

    xuam Junior Member

    Joined:
    Nov 24, 2015
    Messages:
    9
    Likes Received:
    0
    Trophy Points:
    2

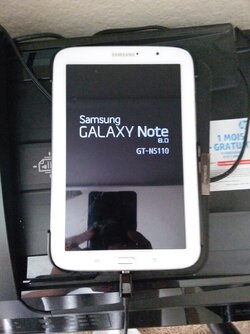

    Only thing that is happening to the tablet right now is that it's plugged in and the screen that the screen that is shown here is flashing like a darn strobe light but it never comes on and when it finally does, you have the dead robot on it's back


    Attached Files:

  8. Traveller

    Traveller Super Moderator Staff Member

    Joined:
    Jun 16, 2012
    Messages:
    2,275
    Likes Received:
    877
    Trophy Points:
    460
    Tablet / Device:
    Coby Kyros MID9742, Dell Streak 5, Samsung Galaxy S4, Nexus 6
    "Downloading. Do not turn off target." means you are in download mode. Now connect the tablet to the PC and you should be able to flash the ROM through Odin.

    If Odin doesn't see the tablet, make sure the drivers are installed, you're using the original cable, and are not using a hub. If after all that you still can't connect the tablet, then you'll have to ask Samsung for help. Since I don't have this tablet I can't go much further.

  9. xuam

    xuam Junior Member

    Joined:
    Nov 24, 2015
    Messages:
    9
    Likes Received:
    0
    Trophy Points:
    2
    yeah i tried it and it started then said "failed"


    i called samsung but they want me to pay them 200 bucks at least because its "out of warranty"

    yet ive only had tablet maybe a year and a half

  10. xuam

    xuam Junior Member

    Joined:
    Nov 24, 2015
    Messages:
    9
    Likes Received:
    0
    Trophy Points:
    2
    right underneath in odin where it says "0:[com3] " is highlighted in light blue dunno if that means anything but it doesnt see it

  11. xuam

    xuam Junior Member

    Joined:
    Nov 24, 2015
    Messages:
    9
    Likes Received:
    0
    Trophy Points:
    2
    says there is no "pit partiton" what ever that means .. but i guess thats why it fails

  12. Traveller

    Traveller Super Moderator Staff Member

    Joined:
    Jun 16, 2012
    Messages:
    2,275
    Likes Received:
    877
    Trophy Points:
    460
    Tablet / Device:
    Coby Kyros MID9742, Dell Streak 5, Samsung Galaxy S4, Nexus 6
    PIT file refers to the storage chip's partition table. With a PIT file, stock ROM, and Odin, the entire internal storage space will be completely formatted and repartitioned to the system defaults. The ROM will then be installed.

    You'll have to do a Google search for the PIT file, but someone on XDA or other enthusiast site has to have one you can download.

  13. xuam

    xuam Junior Member

    Joined:
    Nov 24, 2015
    Messages:
    9
    Likes Received:
    0
    Trophy Points:
    2
    man i called these samsung clowns and they really suck...put u on hold for extended periods of time and then want you to pay ridiculous amounts to fix the darn tablet...and the tablet doesnt even cost that much in store ...i wish i could get something done because this was an absoulte waste of money and time
