[ROM][5.1.1] AOSP-5.1.1 / CM-12.1 for Lenovo a2109 (20160901)

Discussion in 'Lenovo IdeaTab A2109 Development' started by PJBrs, Dec 19, 2015.

  1. DBlake

    DBlake Senior Member

    Joined:
    Nov 29, 2013
    Messages:
    90
    Likes Received:
    24
    Trophy Points:
    180
    Location:
    Ithaca, NY USA
    Tablet / Device:
    Lenovo A2109 (kai)
    That's way more work than you know. He has to provide a whole new kernel, not just a few patches on top of ours.

  2. PJBrs

    PJBrs Senior Member Developer

    Joined:
    Dec 29, 2014
    Messages:
    480
    Likes Received:
    405
    Trophy Points:
    340
    I have some hopes that I'm wrong about that:) But first let's finish lollipop.

    Damn I just confirmed the Skype bug...

    Last edited: Mar 22, 2016
    • Like Like x 1
    • Winner Winner x 1
  3. joebine

    joebine Senior Member

    Joined:
    Jan 14, 2015
    Messages:
    150
    Likes Received:
    32
    Trophy Points:
    210
    I install the last build, working well but I have some problem connecting to Facebook or Google Play game ... It is very long to connect or can not connect at all.

    Also, it happens sometime that apps are freezing. I have to reboot the tablet to be working again.

    I had tested bluetooth, camera, audio playback, video playback and it is all working.

    • Like Like x 1
  4. rsvtoddy

    rsvtoddy Senior Member

    Joined:
    May 21, 2013
    Messages:
    4
    Likes Received:
    3
    Trophy Points:
    170
    Location:
    United Kingdom
    Tablet / Device:
    Samsung 3110
    @joebine - issue with Facebook may well not be ROM based, as on my Nook HD+ (running lollipop) Facebook updates caused lots of problems. I just tried to load Facebook onto the A2109A and it also refused to install.

    @PJBrs - donation sent, well done on getting lollipop working so well on this tab, that I had almost given up with, and not turned on for about 12 months! I look forward to your marshmallow ROM...

    Procedure used coming from TCL ROM -

    Installed flashify from play store and flashed newer CWM recovery image
    Downloaded 20160318 ROM and Opengapps pico
    Factory reset from CWM
    Flashed ROM and Gapps
    Wiped cache and dalvic
    Rebooted

    Simple!

    Will report back if I find any issues.

    Sent from my A2109A using Tapatalk

    • Like Like x 1
  5. PJBrs

    PJBrs Senior Member Developer

    Joined:
    Dec 29, 2014
    Messages:
    480
    Likes Received:
    405
    Trophy Points:
    340
    Great, thanks for testing!

    I noticed myself that trebuchet and system-ui repeatedly froze after about 24 hours. I fixed this by deleting trebuchet application data and cache. You might also try to erase the entire cache and see what happens. But perhaps, it would have been better to just try a completely clean install. Then again, I hate reinstalling all those apps, so for now I've chosen to just face the consequences :)

    Thanks very much for the donation, much appreciated! And thanks for testing. Note that, before taking on Marshmallow, I'll first try to fix Skype video recording. I hope that switching back to the old proprietary blobs might work, or perhaps mixing in some blobs from asus transformer tf300. Furthermore, the power HAL that I adapted from grouper (Nexus 7 2012) doesn't actually work (doesn't effectively set a minimum CPU frequency when display is active). Also, I'm still not sure whether Marshmallow will work at all with kernel 3.1. If we need 3.4, well...

    Last edited: Mar 29, 2016
  6. fusm

    fusm Senior Member

    Joined:
    Jun 5, 2014
    Messages:
    58
    Likes Received:
    8
    Trophy Points:
    180

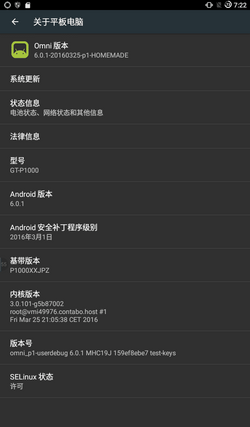

    Here is my old p1000, with Marshmallow running on 3.0.1 kernel.


    Attached Files:

    • Informative Informative x 1
  7. Hogi61

    Hogi61 Junior Member

    Joined:
    Jan 6, 2016
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    22
    Medion Lifetab S9714

    I flashed this rom on the tablet S9714 using twrp. I installed twrp with flashify from playstore.
    Tested:
    bluetooth, gps, wifi, external sd-card, auto-rotation, video player, camera, sound, everything is working.

    Not working:
    deep sleep,
    brightness control (sreen gets black, i had to flash back my nandroid backup)
    I am using now Velis autobrightness without further problems.
    Not tested:
    hdmi, usb-otg, mic, wifi-direct
    My launcher: Nova
    I will do further tests.
    Great rom, i never thought that my old S9714 will get lollipop.

  8. PJBrs

    PJBrs Senior Member Developer

    Joined:
    Dec 29, 2014
    Messages:
    480
    Likes Received:
    405
    Trophy Points:
    340
    Hmm, you're the first to report deep sleep issues. Did you do a factory reset prior to install? If not, I suggest to first boot to recovery and wipe cache and dakvik cache, to see of that fixes it.

    First can you verify that you're on the March 18 version? Because that one fixes auto brightness on a2109. If so, then I need some help to fix this. For this you need to enable root access and install adb. Let us know if you need some help with this. Connect your tablet to your computer and open a root shell:

    Code:
    adb shell
    su

    Next, try some experiments with the following file, like so:
    Code:
    echo 40 > /sys/devices/platform/pwm-backlight/backlight/pwm-backlight/brightness

    The brightness file takes values in the range 0-255. Please find the lowest value that doesn't fully turn off the screen. On a2109, this is 3, and that's also the lowest value used in the latest lollipop build.

    Thanks for testing!

    Last edited: Apr 2, 2016
  9. Hogi61

    Hogi61 Junior Member

    Joined:
    Jan 6, 2016
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    22
    Yes, I confirm that I am on 18 March version. 1 hour ago I did factory reset, wiped cache and dalvik cache. Only app installed is "cpu spy" to control deep sleep. But no success. Tomorrow i will do a complete new installation of the rom.

    I have just tested this. The lowest value is 10. With value 9 the screen turns off.
    Thanks for the support!

  10. Hogi61

    Hogi61 Junior Member

    Joined:
    Jan 6, 2016
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    22
    Today I did a complete fresh installation of the rom. Now deep sleep is working. Thank you.

  11. kin-kwok

    kin-kwok Member

    Joined:
    Feb 14, 2016
    Messages:
    12
    Likes Received:
    1
    Trophy Points:
    78
    So, the Medion Lifetab S9714 is same as Lenove a2109? Will the internal be same too? Maybe this is another source for replacement circuit broad and battery.

    KK

  12. Hogi61

    Hogi61 Junior Member

    Joined:
    Jan 6, 2016
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    22
    The S9714 is not same same as the A2109 but the hardware is very simular. The main differerences are:
    screen: 25,4 cm
    Internal sd card: 32 GB
    sim card slot
    Since nearly 2 years i'm using A2109 roms on my S9714.

    • Useful Useful x 1
  13. Kyle.a2109

    Kyle.a2109 Junior Member

    Joined:
    Mar 12, 2016
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    22
    Hi, sorry for late answer...
    No, it never happened again. I can say battery charge lasts much longer than CM11. Moreover, I left charger plugged-in over night and it was fully charged in the morning with no problem.

    Sometimes the tablet freezes for about a minute specially when I'm using a proxy server and network speed gets low, any suggestion??

  14. PJBrs

    PJBrs Senior Member Developer

    Joined:
    Dec 29, 2014
    Messages:
    480
    Likes Received:
    405
    Trophy Points:
    340
    Thanks very much for testing! One solution is to just use a higher value in the device tree, but I was just so happy that we had the lower brightness enabled on A2109. So instead I have an idea that we might be able solve it in the kernel. Please try this boot.img, as follows:

    Code:
    adb reboot bootloader
    fastboot -i 0x17ef boot boot.img

    Check your dmesg for a line saying "Detected DVT board.", as follows, right after boot:

    Code:
    adb shell 'su -c "dmesg"'

    If this line is present, then my new hack that might change your brightness issue should be there as well...

    Thanks for testing!

    I've searched for this, but I never found one. I do remember seeing a picture of one, and they seem very similar, apart from the addition of a sim-card slot.

    Good to hear!

    Sorry, no. Did you do a clean install? First try to erase cache and dalvik cache. If that doesn't work, perhaps a clean install?

    Last edited: Apr 5, 2016
  15. Kyle.a2109

    Kyle.a2109 Junior Member

    Joined:
    Mar 12, 2016
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    22
    Actually I'm eager to do the most thorough clean install that is possible. Based on my knowledge, I erased Dalvik Cashe and Cashe Partition then wiped System and then installed zip. Is it clean enough?! or should I do something deeper?:rolleyes:

    Another thing to mention is that on the first page it is written:
    But my CWM version is 6.0.5.1 and the download like either.
    It should be a typo, isn't it ?

    Last edited: Apr 6, 2016
