Superpad i7 Android 2.2 Tablet PC 7 Inch Infotmic

M

Marbieskarb

Member
Feb 2, 2011
35
4
cfrockit said:
None of the InfoTMIC powered tablets support connection to the computer except for burning firmware but that requires Win 32 and again a key press combination to interrupt the normal boot process.
Click to expand...

Actually I just tried connecting my Superpad i7 to a Windows 7 machine via the micro usb port and it does recognize that tablet and allows me to use it as a USB Mass Storage device. I'm actually glad I tried it because I have some large movies I want to transfer over. When I get time I'll search for a usb driver and see if I can get adb working.

My hardware id version is 0.5.0.2(735)

Last edited:
S

skiddo

Member
Dec 17, 2011
8
3
marbieskarb, hold esc (button infront) menu then power. after that release it. win 7 32bit will not recognized. go to devices and printers, unknown devices(most bottom) right click > properties, updates driver, choose from list list> have disk> browse to otg_driver.
this driver are only for 32bit win OS.

to nwfungi, foxnet99 and cfrockit, is there any solution to mount storage device in m701sa rom? pls help me. flash drive and sd keeps unmount. always says safe to remove.

cfrockit

cfrockit

Senior Member
Dec 26, 2010
627
191
Marbieskarb said:
Actually I just tried connecting my Superpad i7 to a Windows 7 machine via the micro usb port and it does recognize that tablet and allows me to use it as a USB Mass Storage device. I'm actually glad I tried it because I have some large movies I want to transfer over. When I get time I'll search for a usb driver and see if I can get adb working.

My hardware id version is 0.5.0.2(735)
Click to expand...
foxnet99 in Post #41 identified the firmware and posted the steps should you ever need to fully restore the tablet.

Hardware Id "hwver" 0.5.0.2

SuperPAD i7 (P745) / Mini Superpad 741 / M701SA / CEMX2102

Caution: There are multiple tablets named SuperPad 7" however they have different hardware (boards) therefore burning the incorrect InfoTMIC Update Wrap (.ius) file specifically an incompatible U0 "u-boot-nand.bin" image will cause irreparable damage (brick) the tablet.

M701SA_0722_V2.1.ius

Wrap Information:
Code:
Company: None
Board: error
FileNum: 0.5.0.2.2.1
Size 72 MB

Image List:
U0 (258.5 K) U-Boot 2009.08-svn735 (Jul 11 2015 - 05:03:28)
RD (191 KB)
RD_ (4779 KB)
LK (2346 KB)
ADR_USER (8.5 KB)
ADR_NDISK (8.5 KB)
ADR_AS (66767 KB)

Last edited:
N

nwfungi

Member
Oct 28, 2011
37
8
skiddo said:
marbieskarb, hold esc (button infront) menu then power. after that release it. win 7 32bit will not recognized. go to devices and printers, unknown devices(most bottom) right click > properties, updates driver, choose from list list> have disk> browse to otg_driver.
this driver are only for 32bit win OS.

to nwfungi, foxnet99 and cfrockit, is there any solution to mount storage device in m701sa rom? pls help me. flash drive and sd keeps unmount. always says safe to remove.
Click to expand...

I had to flash with the M701SA_0722_V2.1.ius (link in this thread) to make that go away. Wifi, camera and everything been rock solid since.

S

schine

Member
Dec 17, 2011
1
0
I too purchased the 512 D.N.G Superpad i7 7″ infortm X210 Flytouch Android 2.2 512MB 4GB WIFI HDMI CameraTablet pc ZM-PD-97 through Groupon. I am trying to return it because it appears to be defective.... the liquid crystal discolours parts of the screen that you're not even touching while pressing another area of the sreen. The screen is totally insensitive, it is only responsive when one presses so hard that one's finger becomes fatigued. When resting the tablet on one hand, that hand print then shows through on the screen through the liquid crystal. And this was all just in the first 10 minutes... we had to struggle just to unlock it because we had to press soooooo hard. Definitely not going to work for the senior citizen that it was purchased for considering all you techie people are having a difficult time. Not only disappointed in this product, now, after reading other's experiences with it, I'm wondering where this thing even came from... anyone have any manufacturing info on it? or just China?

N

NEM3SIS

Member
Dec 17, 2011
23
8
The Tablet I have (P752) is the same one from the Groupon as well as the one in the 2nd video posted... it is the most frustrating device of life.
I was tempted to make a new post, but it seem frustration is gathering here. Hopefully I can help you guys out with what I have learned... in the hopes that someone can help me out with a new rom to replace the garbage system it came with.
(p.s. this groupon tablet makes my ARC look like a joke to mod).

Groupon "information" :
Seller:
ZoomaFX (D.N.G Superpad i7 7″ infortm X210 Flytouch Android 2.2 512MB 4GB WIFI HDMI Camera Tablet pc | Zoomafx)
Dealer listed specs (Specs According to seller) :
D.N.G Superpad i7
1.Infotm IMAP X210 1.0GHZ
2.Google ANDRIOD2.3
3.512MB 4GB
4.USB 3G built in Camera with G-sensor
LCD Display:7 inch 800X480
CPU:infotmic X210,1GHz ARM11, Support hardware 2D/3D graphics acceleration
Operating System: ANDROID GOOGLE 2.3
Memory:512MB
Storage:4GB
Language:support multiple language
Touch panel:TFT Resistive Touch Screen
3G:EVDO:E1916,ZTE:AC2736,HuaweiE1750
I/O Port:USB 2.0 2, HDMI 1,
Headphone 1, MIC 1, DC JACK 1, TF card reader
Network: WIFI:IEEE802.11b/g wireless network
Camera:Built-in two million pixels camera
Audio:2.5mm headphone jackHigh-quality stereo loud speaker Built-in microphone
Media File:Audio : MP3,WMA,WAV,APE,OGG,FLAC,AACVideo :AVI,3GP/MP4,MPG,RM/RMVB,,MKV,MOV,FLV,WMV support multiple formats 1080P
Video HD Output:HDMI 1080P Output
Power adapter:Battery capacity:3000MAH
Battery:standby time: above 3 hours,Video play last :3 hours

Boot sequence:
1) Green android text.
2) Green android robot with dots in background.
3) Grey android text that almost pulses.
4)Homescreen.

Factory Resetting this tablet:
IN ORDER TO RESET:
hold down the button on the front, the Home button (H button closest to audio jack) and while holding these two down press the power button. If done correctly white text will appear on your screen. release all buttons and factory reset will begin.

Communicating with device:
ADB WILL be able to communicate with the tablet once you have all the requirements installed.
You need to install the OTG driver supplied in earlier posts ( comes with IUW burning tools)
1) Install android SDK Android SDK | Android Developers
(NOTE: YOU WILL NEED TO HAVE JAVA SDK INSTALLED)
1) Plug the tablet into the computer while ON.
2) Go to Settings> Applications > Turn on UNKNOWN SOURCES.
3) go into Development Menu. Enable USB Debugging.
4) Go to device manager.
You should see a device listed as "MID".
5)Go into the properties of this device and install new driver, select the available driver from the unzipped burning tools folder.

Removing Cell Standby ( Useless phone junk that is on there) :
You will need:
Root access
R/W filesystems
ADB + SDK installed, MID driver installed.
issue the following commands from ADB Shell:
1) SU
2) mount -o rw,remount -t yaffs2 /dev/block/mtdblock3 /system
3) rm /system/app/Phone.apk
4) rm /system/app/TelephonyProvider.apk
5) errors WILL appear on screen. Reboot tablet and you should be all good.


Rooting the Tablet:
This tablet can be rooted.
in order to do it , Follow all the instructions for installing ADB and IUW above.
1) Install the One Click Rooting Tool ( [APP]SuperOneClick v2.3.1 - Automatic Driver Installation! - xda-developers )
2) I had the best luck changing the rooting method to "ZERGRUSH"

Things I have learned:
1) The screen sucks. Using a stylus is definitely recommended. More-over, I have had the best results using the back side of a pencil with a gummy eraser (Weird, I know).
2) There is NO recovery mode on this tablet. Issuing commands to enter recovery from ADB will only results in a reboot.
3) boot time seems totally random. I have seen it take 30 seconds, I have seen it take 15 minutes.
4) For whatever reason, about every fourth boot my tablet tries to factory reset itself without any warning, loosing all settings, installed programs, etc etc.
5) Internal drive will randomly say that its full. only factory reset will help.

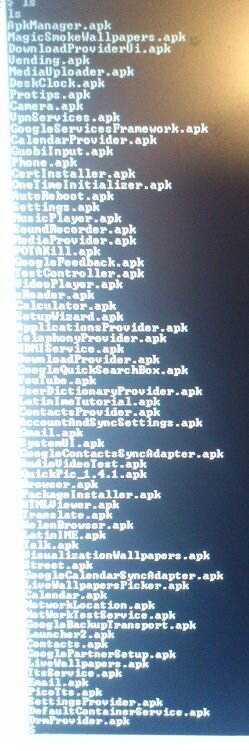

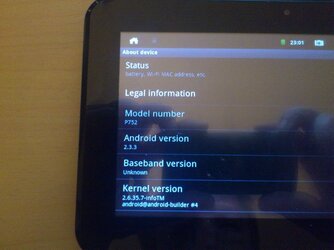

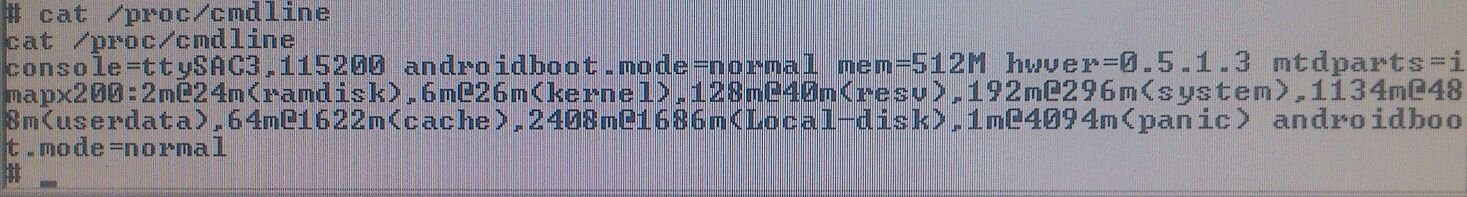

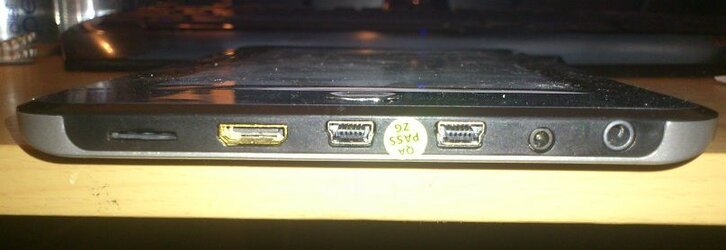

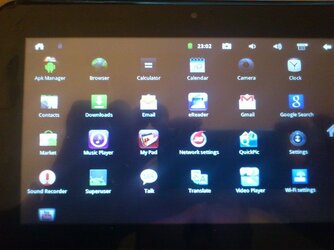

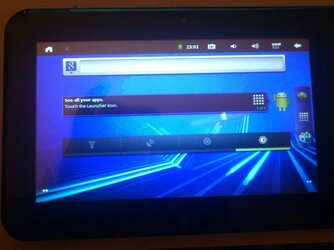

Other pictures:


HELP ME INTERNET. YOU ARE MY ONLY HOPE.

I TAKE NO RESPONSIBILITY IF YOU BRICK YOUR TABLET (HAVNT BRICKED MINE YET, HOWEVER.)

Last edited:
cfrockit

cfrockit

Senior Member
Dec 26, 2010
627
191
Summary items for investigation from NEM3SIS post. Thanks for the detailed effort which assists others and may lead to some enhancements.

ZoomaFX (D.N.G Superpad i7 7″ infortm X210 Flytouch Android 2.2 512MB 4GB WIFI HDMI Camera Tablet pc | Zoomafx)

Hardware Id "hwver" 0.5.1.3

WORK IN PROGRESS looking for firmware, tweaks, fixes.

Please post the build.prop and if possible pull a copy of the Settings.apk and post for investigation.

Update:

Hard coded in Settings.apk

Version=V2.3.1.8_U709_V2.0.0_5370,Date=2011-11-02/12:14:22

Last edited:
cfrockit

cfrockit

Senior Member
Dec 26, 2010
627
191
NEM3SIS said:
Heres the build.
Click to expand...
Thanks

Quick view -
Code:
# begin build properties
# autogenerated by buildinfo.sh
ro.build.id=GRI40
ro.build.display.id=GRI40
ro.build.version.incremental=eng.android.20111102.121428
ro.build.version.sdk=10
ro.build.version.codename=REL
ro.build.version.release=2.3.3
ro.build.date=Wed Nov  2 12:15:04 EET 2011
ro.build.date.utc=1320228904
ro.build.type=user
ro.build.user=android
ro.build.host=android-builder
ro.build.tags=test-keys
ro.product.model=P752
ro.product.brand=Infotmic
ro.product.name=P752
ro.product.device=P752
ro.product.board=
ro.product.cpu.abi=armeabi
ro.product.manufacturer=Infotmic
ro.product.locale.language=mdpi
ro.product.locale.region=
ro.wifi.channels=
ro.board.platform=imap210
# ro.build.product is obsolete; use ro.product.device
ro.build.product=P752
# Do not try to parse ro.build.description or .fingerprint
ro.build.description=P752-user 2.3.3 GRI40 eng.android.20111102.121428 test-keys
ro.build.fingerprint=Infotmic/P752/P752:2.3.3/GRI40/eng.android.20111102.121428:user/test-keys
# end build properties

#
# ADDITIONAL_BUILD_PROPERTIES
#
persist.app2sd.enabled=1
ro.suspend.unloadWifiDriver=true
ro.phone.enabled=false
persist.sys.gps.enable=0
ro.opengles.version=131972
ro.setupwizard.mode=DISABLED
ro.product.locale.language=en
ro.product.locale.region=US
ro.config.notification_sound=OnTheHunt.ogg
ro.config.alarm_alert=Alarm_Classic.ogg
net.bt.name=Android
dalvik.vm.stack-trace-file=/data/anr/traces.txt

N

NEM3SIS

Member
Dec 17, 2011
23
8
I read in another forum this might be useful infor for you to :confused::D

Code:
<5>[    0.000000] Linux version 2.6.35.7-infoTM (android@android-builder) (gcc version 4.4.0 (GCC) ) #4 Wed Nov 2 13:42:12 EET 2011

<4>[    0.000000] CPU: ARMv6-compatible processor [4117b365] revision 5 (ARMv6TEJ), cr=00c5387f

<4>[    0.000000] CPU: VIPT nonaliasing data cache, VIPT nonaliasing instruction cache

<4>[    0.000000] Machine: IMAPX200

<4>[    0.000000] Ignoring unrecognised tag 0x00000000

<4>[    0.000000] Ignoring unrecognised tag 0x54410008

<4>[    0.000000] Memory policy: ECC disabled, Data cache writeback

<7>[    0.000000] On node 0 totalpages: 131072

<7>[    0.000000] free_area_init_node: node 0, pgdat c0556560, node_mem_map c0628000

<7>[    0.000000]   Normal zone: 1024 pages used for memmap

<7>[    0.000000]   Normal zone: 0 pages reserved

<7>[    0.000000]   Normal zone: 130048 pages, LIFO batch:31

<4>[    0.000000] CPU IMAPX200 (id 0x13ab2000)

<6>[    0.000000] IMAP Clocks, (c) 2009 Infotm Micro Electronics

<4>[    0.000000] IMAPX200: PLL CLOCKS, APLL 1584.000 MHz, DPLL 480.000 MHz, EPLL 432.000 MHz

<4>[    0.000000] IMAPX200: CPU_CLK 792.000 MHz, HCLK 132.000 MHz, PCLK 66.000 MHz

<6>[    0.000000] iMAPx200: 67108864 bytes SDRAM reserved for memalloc at 0x4102c000

<4>[    0.000000] IMAP Power Management, Copyright 2010 Infotm

<4>[    0.000000] Built 1 zonelists in Zone order, mobility grouping on.  Total pages: 130048

<5>[    0.000000] Kernel command line: console=ttySAC3,115200 androidboot.mode=normal mem=512M hwver=0.5.1.3 mtdparts=imapx200:2m@24m(ramdisk),6m@26m(kernel),128m@40m(resv),192m@296m(system),1134m@488m(userdata),64m@1622m(cache),2408m@1686m(Local-disk),1m@4094m(panic) androidboot.mode=normal

<6>[    0.000000] PID hash table entries: 2048 (order: 1, 8192 bytes)

<6>[    0.000000] Dentry cache hash table entries: 65536 (order: 6, 262144 bytes)

<6>[    0.000000] Inode-cache hash table entries: 32768 (order: 5, 131072 bytes)

<6>[    0.000000] Memory: 512MB = 512MB total

<5>[    0.000000] Memory: 447768k/447768k available, 76520k reserved, 0K highmem

<5>[    0.000000] Virtual kernel memory layout:

<5>[    0.000000]     vector  : 0xffff0000 - 0xffff1000   (   4 kB)

<5>[    0.000000]     fixmap  : 0xfff00000 - 0xfffe0000   ( 896 kB)

<5>[    0.000000]     DMA     : 0xfde00000 - 0xffe00000   (  32 MB)

<5>[    0.000000]     vmalloc : 0xe0800000 - 0xefe00000   ( 246 MB)

<5>[    0.000000]     lowmem  : 0xc0000000 - 0xe0000000   ( 512 MB)

<5>[    0.000000]     pkmap   : 0xbfe00000 - 0xc0000000   (   2 MB)

<5>[    0.000000]     modules : 0xbf000000 - 0xbfe00000   (  14 MB)

<5>[    0.000000]       .init : 0xc0008000 - 0xc0088000   ( 512 kB)

<5>[    0.000000]       .text : 0xc0088000 - 0xc04f8000   (4544 kB)

<5>[    0.000000]       .data : 0xc051a000 - 0xc0557160   ( 245 kB)

<6>[    0.000000] SLUB: Genslabs=11, HWalign=32, Order=0-3, MinObjects=0, CPUs=1, Nodes=1

<6>[    0.000000] Hierarchical RCU implementation.

<6>[    0.000000]     RCU-based detection of stalled CPUs is disabled.

<6>[    0.000000]     Verbose stalled-CPUs detection is disabled.

<6>[    0.000000] NR_IRQS:128

<4>[    0.000000] Console: colour dummy device 80x30

<7>[    0.000000] FOUND calc 114583, divisor 36

<6>[    0.000000] console [ttySAC3] enabled

<6>[    0.010000] Calibrating delay loop... 791.34 BogoMIPS (lpj=1978368)

<6>[    0.120000] pid_max: default: 32768 minimum: 301

<4>[    0.125000] Mount-cache hash table entries: 512

<6>[    0.130000] CPU: Testing write buffer coherency: ok

<6>[    0.135000] devtmpfs: initialized

<6>[    0.140000] NET: Registered protocol family 16

<4>[    0.170000] imapx200: Initialising architecture

<6>[    0.175000] leaving imap_arch_init

<6>[    0.180000] imapx200_dma_init: Registering DMA channels: ok!

<4>[    0.235000] bio: create slab <bio-0> at 0

<5>[    0.240000] SCSI subsystem initialized

<6>[    0.245000] usbcore: registered new interface driver usbfs

<6>[    0.250000] usbcore: registered new interface driver hub

<6>[    0.255000] usbcore: registered new device driver usb

<6>[    0.265000] <6>imapx200_iic0 imapx200_iic0: i2c-1: IMAPX200 I2C adapter

<6>[    0.270000] <6>imapx200_iic1 imapx200_iic1: i2c-2: IMAPX200 I2C adapter

<6>[    0.275000] Advanced Linux Sound Architecture Driver Version 1.0.23.

<6>[    0.285000] cfg80211: Calling CRDA to update world regulatory domain

<6>[    0.335000] NET: Registered protocol family 2

<6>[    0.340000] IP route cache hash table entries: 4096 (order: 2, 16384 bytes)

<6>[    0.345000] TCP established hash table entries: 16384 (order: 5, 131072 bytes)

<6>[    0.350000] TCP bind hash table entries: 16384 (order: 4, 65536 bytes)

<6>[    0.355000] TCP: Hash tables configured (established 16384 bind 16384)

<6>[    0.360000] TCP reno registered

<6>[    0.365000] UDP hash table entries: 256 (order: 0, 4096 bytes)

<6>[    0.370000] UDP-Lite hash table entries: 256 (order: 0, 4096 bytes)

<6>[    0.375000] NET: Registered protocol family 1

<6>[    0.380000] RPC: Registered udp transport module.

<6>[    0.385000] RPC: Registered tcp transport module.

<6>[    0.390000] RPC: Registered tcp NFSv4.1 backchannel transport module.

<6>[    0.395000] Trying to unpack rootfs image as initramfs...

<6>[    0.420000] Freeing initrd memory: 172K

<3>[    0.425000] iMAP PWM Driver Init.

<6>[    0.435000] ashmem: initialized

<6>[    0.465000] ROMFS MTD (C) 2007 Red Hat, Inc.

<7>[    0.470000] yaffs built Aug 17 2011 21:23:40 Installing.

<7>[    0.470000]

<7>[    0.470000]

<7>[    0.470000]

<7>[    0.470000]

<7>[    0.470000] YAFFS-WARNING CONFIG_YAFFS_ALWAYS_CHECK_CHUNK_ERASED selected.

<7>[    0.470000]

<7>[    0.470000]

<7>[    0.470000]

<6>[    0.475000] alg: No test for stdrng (krng)

<6>[    0.480000] io scheduler noop registered

<6>[    0.485000] io scheduler deadline registered

<6>[    0.490000] io scheduler cfq registered (default)

<7>[    0.495000] Registered led device: lcd-backlight

<6>[    0.495000] Imap Framebuffer Driver Initialization Start!

<4>[    0.515000] Console: switching to colour frame buffer device 100x30

<6>[    0.535000] fb0: imapfb frame buffer device

<6>[    0.545000] fb1: imapfb frame buffer device

<1>[    0.550000] imap-fb, 0x0, 0x0, 0x3e

<6>[    0.550000] Imap Framebuffer Driver Initialization OK!

<6>[    0.560000] HDMI Probe to add i2c driver for HDMI device

<1>[    0.565000] Current gpio can't be set to be sleep mode!

<1>[    0.570000] Current gpio has no sleep mode!

<6>[    0.575000] Device for HDMI will be Initializad

<6>[    0.790000] Init HDMI device OK

<6>[    0.790000] HDMI device add i2c driver OK!

<6>[    1.395000] Serial: 8250/16550 driver, 4 ports, IRQ sharing disabled

<6>[    1.405000] imapx200-uart.0: imapx200_serial0 at MMIO 0x20e20000 (irq = 51) is a IMAPX200

<6>[    1.410000] imapx200-uart.1: imapx200_serial1 at MMIO 0x20e21000 (irq = 23) is a IMAPX200

<6>[    1.415000] imapx200-uart.2: imapx200_serial2 at MMIO 0x20e22000 (irq = 13) is a IMAPX200

<6>[    1.420000] imapx200-uart.3: imapx200_serial3 at MMIO 0x20e23000 (irq = 33) is a IMAPX200

<6>[    1.445000] brd: module loaded

<6>[    1.455000] loop: module loaded

<6>[    1.465000] iMAPx200 NAND MTD Driver (c) 2009,2014 InfoTM

<6>[    1.470000] Method: IRQ(1), DMA(1), SECC(0), DEC.RDY, CRCD++

<4>[    1.475000] NAND ID: ad d7 94

<4>[    1.475000] Assigned as H27UBG8T2ATR

<6>[    1.480000] NAND device: Manufacturer ID: 0xad, Chip ID: 0xd7 (Hynix H27UBG8T2ATR)

<6>[    1.485000] iMAPx200 NAND NOR BBT (c) 2009,2014 InfoTM

<3>[    1.490000] iMAPx200 BBT: Reseting NOR flash...

<3>[    1.495000] iMAPx200 BBT: Maf: c2, Did: 22b9

<3>[    1.495000] iMAPx200 BBT: NOR based BBT found.

<3>[    1.500000] iMAPx200 BBT: Bad block 0xf7(MB) found.

<3>[    1.505000] iMAPx200 BBT: Bad block 0x103(MB) found.

<3>[    1.510000] iMAPx200 BBT: Bad block 0x104(MB) found.

<3>[    1.515000] iMAPx200 BBT: Bad block 0x11c(MB) found.

<3>[    1.520000] iMAPx200 BBT: Bad block 0x12b(MB) found.

<3>[    1.525000] iMAPx200 BBT: Bad block 0x12d(MB) found.

<3>[    1.530000] iMAPx200 BBT: Bad block 0x12e(MB) found.

<3>[    1.535000] iMAPx200 BBT: Bad block 0x12f(MB) found.

<3>[    1.540000] iMAPx200 BBT: Bad block 0x130(MB) found.

<3>[    1.545000] iMAPx200 BBT: Bad block 0x131(MB) found.

<3>[    1.550000] iMAPx200 BBT: Bad block 0x132(MB) found.

<3>[    1.555000] iMAPx200 BBT: Bad block 0x133(MB) found.

<3>[    1.560000] iMAPx200 BBT: Bad block 0x134(MB) found.

<3>[    1.565000] iMAPx200 BBT: Bad block 0x135(MB) found.

<3>[    1.570000] iMAPx200 BBT: Bad block 0x136(MB) found.

<3>[    1.575000] iMAPx200 BBT: Bad block 0x137(MB) found.

<3>[    1.580000] iMAPx200 BBT: Bad block 0x138(MB) found.

<3>[    1.585000] iMAPx200 BBT: Bad block 0x139(MB) found.

<3>[    1.590000] iMAPx200 BBT: Bad block 0x146(MB) found.

<3>[    1.595000] iMAPx200 BBT: Bad block 0x147(MB) found.

<3>[    1.600000] iMAPx200 BBT: Bad block 0x14f(MB) found.

<3>[    1.605000] iMAPx200 BBT: Bad block 0x155(MB) found.

<3>[    1.610000] iMAPx200 BBT: Bad block 0x156(MB) found.

<3>[    1.615000] iMAPx200 BBT: Bad block 0x159(MB) found.

<3>[    1.620000] iMAPx200 BBT: Bad block 0x15e(MB) found.

<3>[    1.625000] iMAPx200 BBT: Bad block 0x160(MB) found.

<3>[    1.630000] iMAPx200 BBT: Bad block 0x162(MB) found.

<3>[    1.635000] iMAPx200 BBT: Bad block 0x163(MB) found.

<3>[    1.640000] iMAPx200 BBT: Bad block 0x165(MB) found.

<3>[    1.645000] iMAPx200 BBT: Bad block 0x167(MB) found.

<3>[    1.650000] iMAPx200 BBT: Bad block 0x168(MB) found.

<3>[    1.655000] iMAPx200 BBT: Bad block 0x16a(MB) found.

<3>[    1.660000] iMAPx200 BBT: Bad block 0x16b(MB) found.

<3>[    1.665000] iMAPx200 BBT: Bad block 0x17b(MB) found.

<3>[    1.670000] iMAPx200 BBT: Bad block 0x17c(MB) found.

<3>[    1.675000] iMAPx200 BBT: Bad block 0x17d(MB) found.

<3>[    1.680000] iMAPx200 BBT: Bad block 0x17e(MB) found.

<3>[    1.685000] iMAPx200 BBT: Bad block 0x17f(MB) found.

<3>[    1.690000] iMAPx200 BBT: Bad block 0x180(MB) found.

<3>[    1.695000] iMAPx200 BBT: Bad block 0x181(MB) found.

<3>[    1.700000] iMAPx200 BBT: Bad block 0x182(MB) found.

<3>[    1.705000] iMAPx200 BBT: Bad block 0x184(MB) found.

<3>[    1.710000] iMAPx200 BBT: Bad block 0x18a(MB) found.

<3>[    1.715000] iMAPx200 BBT: Bad block 0x18c(MB) found.

<3>[    1.720000] iMAPx200 BBT: Bad block 0x18e(MB) found.

<3>[    1.725000] iMAPx200 BBT: Bad block 0x192(MB) found.

<3>[    1.730000] iMAPx200 BBT: Bad block 0x197(MB) found.

<3>[    1.735000] iMAPx200 BBT: Bad block 0x199(MB) found.

<3>[    1.740000] iMAPx200 BBT: Bad block 0x1cd(MB) found.

<3>[    1.745000] iMAPx200 BBT: Bad block 0x1e3(MB) found.

<3>[    1.750000] iMAPx200 BBT: Bad block 0x1e4(MB) found.

<3>[    1.755000] iMAPx200 BBT: Bad block 0x1e5(MB) found.

<3>[    1.760000] iMAPx200 BBT: Bad block 0x1e6(MB) found.

<3>[    1.765000] iMAPx200 BBT: Bad block 0x1e7(MB) found.

<3>[    1.770000] iMAPx200 BBT: Bad block 0x1e8(MB) found.

<3>[    1.775000] iMAPx200 BBT: Bad block 0x1e9(MB) found.

<3>[    1.780000] iMAPx200 BBT: Bad block 0x1ff(MB) found.

<3>[    1.785000] iMAPx200 BBT: Bad block 0x200(MB) found.

<3>[    1.790000] iMAPx200 BBT: Bad block 0x201(MB) found.

<3>[    1.795000] iMAPx200 BBT: Bad block 0x202(MB) found.

<3>[    1.800000] iMAPx200 BBT: Bad block 0x203(MB) found.

<3>[    1.805000] iMAPx200 BBT: Bad block 0x205(MB) found.

<3>[    1.810000] iMAPx200 BBT: Bad block 0x206(MB) found.

<3>[    1.815000] iMAPx200 BBT: Bad block 0x207(MB) found.

<3>[    1.820000] iMAPx200 BBT: Bad block 0x208(MB) found.

<3>[    1.825000] iMAPx200 BBT: Bad block 0x209(MB) found.

<3>[    1.830000] iMAPx200 BBT: Bad block 0x20e(MB) found.

<3>[    1.835000] iMAPx200 BBT: Bad block 0x210(MB) found.

<3>[    1.840000] iMAPx200 BBT: Bad block 0x211(MB) found.

<3>[    1.845000] iMAPx200 BBT: Bad block 0x214(MB) found.

<3>[    1.850000] iMAPx200 BBT: Bad block 0x216(MB) found.

<3>[    1.855000] iMAPx200 BBT: Bad block 0x217(MB) found.

<3>[    1.860000] iMAPx200 BBT: Bad block 0x219(MB) found.

<3>[    1.865000] iMAPx200 BBT: Bad block 0x21b(MB) found.

<3>[    1.870000] iMAPx200 BBT: Bad block 0x21c(MB) found.

<3>[    1.875000] iMAPx200 BBT: Bad block 0x21d(MB) found.

<3>[    1.880000] iMAPx200 BBT: Bad block 0x221(MB) found.

<3>[    1.885000] iMAPx200 BBT: Bad block 0x229(MB) found.

<3>[    1.890000] iMAPx200 BBT: Bad block 0x22a(MB) found.

<3>[    1.895000] iMAPx200 BBT: Bad block 0x262(MB) found.

<3>[    1.900000] iMAPx200 BBT: Bad block 0x272(MB) found.

<3>[    1.905000] iMAPx200 BBT: Bad block 0x284(MB) found.

<3>[    1.910000] iMAPx200 BBT: Bad block 0x29f(MB) found.

<3>[    1.915000] iMAPx200 BBT: Bad block 0x2d5(MB) found.

<3>[    1.920000] iMAPx200 BBT: Bad block 0x2fc(MB) found.

<3>[    1.925000] iMAPx200 BBT: Bad block 0x328(MB) found.

<3>[    1.930000] iMAPx200 BBT: Bad block 0x329(MB) found.

<3>[    1.935000] iMAPx200 BBT: Bad block 0x32b(MB) found.

<3>[    1.940000] iMAPx200 BBT: Bad block 0x32c(MB) found.

<3>[    1.945000] iMAPx200 BBT: Bad block 0x32d(MB) found.

<3>[    1.950000] iMAPx200 BBT: Bad block 0x32e(MB) found.

<3>[    1.955000] iMAPx200 BBT: Bad block 0x338(MB) found.

<3>[    1.960000] iMAPx200 BBT: Bad block 0x33a(MB) found.

<5>[    1.965000] 8 cmdlinepart partitions found on MTD device imapx200

<3>[    1.970000] iMAPx200 NAND: nr_part is 8

<3>[    1.975000] iMAPx200 NAND: Using cmdline based partition table.

<5>[    1.980000] Creating 8 MTD partitions on "imapx200":

<5>[    1.985000] 0x000001800000-0x000001a00000 : "ramdisk"

<5>[    1.995000] 0x000001a00000-0x000002000000 : "kernel"

<5>[    2.000000] 0x000002800000-0x00000a800000 : "resv"

<5>[    2.010000] 0x000012800000-0x00001e800000 : "system"

<5>[    2.020000] 0x00001e800000-0x000065600000 : "userdata"

<3>[    2.025000] iMAPx200 BBT: Bad block detected(MB): 0xf7

<3>[    2.030000] iMAPx200 BBT: Bad block detected(MB): 0x103

<3>[    2.035000] iMAPx200 BBT: Bad block detected(MB): 0x104

<3>[    2.040000] iMAPx200 BBT: Bad block detected(MB): 0x11c

<3>[    2.045000] iMAPx200 BBT: Bad block detected(MB): 0x12b

<3>[    2.050000] iMAPx200 BBT: Bad block detected(MB): 0x12d

<3>[    2.055000] iMAPx200 BBT: Bad block detected(MB): 0x12e

<3>[    2.060000] iMAPx200 BBT: Bad block detected(MB): 0x12f

<3>[    2.065000] iMAPx200 BBT: Bad block detected(MB): 0x130

<3>[    2.070000] iMAPx200 BBT: Bad block detected(MB): 0x131

<3>[    2.075000] iMAPx200 BBT: Bad block detected(MB): 0x132

<3>[    2.080000] iMAPx200 BBT: Bad block detected(MB): 0x133

<3>[    2.085000] iMAPx200 BBT: Bad block detected(MB): 0x134

<3>[    2.090000] iMAPx200 BBT: Bad block detected(MB): 0x135

<3>[    2.095000] iMAPx200 BBT: Bad block detected(MB): 0x136

<3>[    2.100000] iMAPx200 BBT: Bad block detected(MB): 0x137

<3>[    2.105000] iMAPx200 BBT: Bad block detected(MB): 0x138

<3>[    2.110000] iMAPx200 BBT: Bad block detected(MB): 0x139

<3>[    2.115000] iMAPx200 BBT: Bad block detected(MB): 0x146

<3>[    2.120000] iMAPx200 BBT: Bad block detected(MB): 0x147

<3>[    2.125000] iMAPx200 BBT: Bad block detected(MB): 0x14f

<3>[    2.130000] iMAPx200 BBT: Bad block detected(MB): 0x155

<3>[    2.135000] iMAPx200 BBT: Bad block detected(MB): 0x156

<3>[    2.140000] iMAPx200 BBT: Bad block detected(MB): 0x159

<3>[    2.145000] iMAPx200 BBT: Bad block detected(MB): 0x15e

<3>[    2.150000] iMAPx200 BBT: Bad block detected(MB): 0x160

<3>[    2.155000] iMAPx200 BBT: Bad block detected(MB): 0x162

<3>[    2.160000] iMAPx200 BBT: Bad block detected(MB): 0x163

<3>[    2.165000] iMAPx200 BBT: Bad block detected(MB): 0x165

<3>[    2.170000] iMAPx200 BBT: Bad block detected(MB): 0x167

<3>[    2.175000] iMAPx200 BBT: Bad block detected(MB): 0x168

<3>[    2.180000] iMAPx200 BBT: Bad block detected(MB): 0x16a

<3>[    2.185000] iMAPx200 BBT: Bad block detected(MB): 0x16b

<3>[    2.190000] iMAPx200 BBT: Bad block detected(MB): 0x17b

<3>[    2.195000] iMAPx200 BBT: Bad block detected(MB): 0x17c

<3>[    2.200000] iMAPx200 BBT: Bad block detected(MB): 0x17d

<3>[    2.205000] iMAPx200 BBT: Bad block detected(MB): 0x17e

<3>[    2.210000] iMAPx200 BBT: Bad block detected(MB): 0x17f

<3>[    2.215000] iMAPx200 BBT: Bad block detected(MB): 0x180

<3>[    2.220000] iMAPx200 BBT: Bad block detected(MB): 0x181

<3>[    2.225000] iMAPx200 BBT: Bad block detected(MB): 0x182

<3>[    2.230000] iMAPx200 BBT: Bad block detected(MB): 0x184

<3>[    2.235000] iMAPx200 BBT: Bad block detected(MB): 0x18a

<3>[    2.240000] iMAPx200 BBT: Bad block detected(MB): 0x18c

<3>[    2.245000] iMAPx200 BBT: Bad block detected(MB): 0x18e

<3>[    2.250000] iMAPx200 BBT: Bad block detected(MB): 0x192

<3>[    2.255000] iMAPx200 BBT: Bad block detected(MB): 0x197

<3>[    2.260000] iMAPx200 BBT: Bad block detected(MB): 0x199

<3>[    2.265000] iMAPx200 BBT: Bad block detected(MB): 0x1cd

<3>[    2.270000] iMAPx200 BBT: Bad block detected(MB): 0x1e3

<3>[    2.275000] iMAPx200 BBT: Bad block detected(MB): 0x1e4

<3>[    2.280000] iMAPx200 BBT: Bad block detected(MB): 0x1e5

<3>[    2.285000] iMAPx200 BBT: Bad block detected(MB): 0x1e6

<3>[    2.290000] iMAPx200 BBT: Bad block detected(MB): 0x1e7

<3>[    2.295000] iMAPx200 BBT: Bad block detected(MB): 0x1e8

<3>[    2.300000] iMAPx200 BBT: Bad block detected(MB): 0x1e9

<3>[    2.305000] iMAPx200 BBT: Bad block detected(MB): 0x1ff

<3>[    2.310000] iMAPx200 BBT: Bad block detected(MB): 0x200

<3>[    2.315000] iMAPx200 BBT: Bad block detected(MB): 0x201

<3>[    2.320000] iMAPx200 BBT: Bad block detected(MB): 0x202

<3>[    2.325000] iMAPx200 BBT: Bad block detected(MB): 0x203

<3>[    2.330000] iMAPx200 BBT: Bad block detected(MB): 0x205

<3>[    2.335000] iMAPx200 BBT: Bad block detected(MB): 0x206

<3>[    2.340000] iMAPx200 BBT: Bad block detected(MB): 0x207

<3>[    2.345000] iMAPx200 BBT: Bad block detected(MB): 0x208

<3>[    2.350000] iMAPx200 BBT: Bad block detected(MB): 0x209

<3>[    2.355000] iMAPx200 BBT: Bad block detected(MB): 0x20e

<3>[    2.360000] iMAPx200 BBT: Bad block detected(MB): 0x210

<3>[    2.365000] iMAPx200 BBT: Bad block detected(MB): 0x211

<3>[    2.370000] iMAPx200 BBT: Bad block detected(MB): 0x214

<3>[    2.375000] iMAPx200 BBT: Bad block detected(MB): 0x216

<3>[    2.380000] iMAPx200 BBT: Bad block detected(MB): 0x217

<3>[    2.385000] iMAPx200 BBT: Bad block detected(MB): 0x219

<3>[    2.390000] iMAPx200 BBT: Bad block detected(MB): 0x21b

<3>[    2.395000] iMAPx200 BBT: Bad block detected(MB): 0x21c

<3>[    2.400000] iMAPx200 BBT: Bad block detected(MB): 0x21d

<3>[    2.405000] iMAPx200 BBT: Bad block detected(MB): 0x221

<3>[    2.410000] iMAPx200 BBT: Bad block detected(MB): 0x229

<3>[    2.415000] iMAPx200 BBT: Bad block detected(MB): 0x22a

<3>[    2.420000] iMAPx200 BBT: Bad block detected(MB): 0x262

<3>[    2.425000] iMAPx200 BBT: Bad block detected(MB): 0x272

<3>[    2.430000] iMAPx200 BBT: Bad block detected(MB): 0x284

<3>[    2.435000] iMAPx200 BBT: Bad block detected(MB): 0x29f

<3>[    2.440000] iMAPx200 BBT: Bad block detected(MB): 0x2d5

<3>[    2.445000] iMAPx200 BBT: Bad block detected(MB): 0x2fc

<3>[    2.450000] iMAPx200 BBT: Bad block detected(MB): 0x328

<3>[    2.455000] iMAPx200 BBT: Bad block detected(MB): 0x329

<5>[    2.460000] 0x000065600000-0x000069600000 : "cache"

<3>[    2.465000] iMAPx200 BBT: Bad block detected(MB): 0x32b

<3>[    2.470000] iMAPx200 BBT: Bad block detected(MB): 0x32c

<3>[    2.475000] iMAPx200 BBT: Bad block detected(MB): 0x32d

<3>[    2.480000] iMAPx200 BBT: Bad block detected(MB): 0x32e

<3>[    2.485000] iMAPx200 BBT: Bad block detected(MB): 0x338

<3>[    2.490000] iMAPx200 BBT: Bad block detected(MB): 0x33a

<5>[    2.495000] 0x000069600000-0x0000ffe00000 : "Local-disk"

<5>[    2.505000] 0x0000ffe00000-0x0000fff00000 : "panic"

<4>[    2.510000] mtd: partition "panic" doesn't end on an erase block -- force read-only

<6>[    2.515000] imapx200_ssim0 imapx200_ssim0.0: bitbang at dc3ceb18

<6>[    2.520000] PPP generic driver version 2.4.2

<6>[    2.525000] PPP MPPE Compression module registered

<6>[    2.530000] NET: Registered protocol family 24

<6>[    2.535000] hso: drivers/net/usb/hso.c: 1.2 Option Wireless

<6>[    2.540000] usbcore: registered new interface driver hso

<6>[    2.545000] usbcore: registered new interface driver cdc_ether

<6>[    2.550000] usbcore: registered new interface driver net1080

<6>[    2.555000] usbcore: registered new interface driver cdc_subset

<6>[    2.560000] usbcore: registered new interface driver zaurus

<6>[    2.565000] usbcore: registered new interface driver asix

<5>[    2.570000] usbmon: debugfs is not available

<6>[    2.575000] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver

<6>[    2.580000] imapx200_usbhost20 imapx200_usbhost20: Infotm Ehci Controller

<6>[    2.585000] imapx200_usbhost20 imapx200_usbhost20: new USB bus registered, assigned bus number 1

<6>[    2.595000] imapx200_usbhost20 imapx200_usbhost20: irq 44, io mem 0x20c81000

<6>[    2.610000] imapx200_usbhost20 imapx200_usbhost20: USB 0.0 started, EHCI 1.00

<6>[    2.615000] hub 1-0:1.0: USB hub found

<6>[    2.620000] hub 1-0:1.0: 4 ports detected

<6>[    2.625000] ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver

<6>[    2.635000] imapx200_usbhost11 imapx200_usbhost11: Infotm Ohci Controller

<6>[    2.640000] imapx200_usbhost11 imapx200_usbhost11: new USB bus registered, assigned bus number 2

<6>[    2.645000] imapx200_usbhost11 imapx200_usbhost11: irq 26, io mem 0x20c80000

<6>[    2.710000] hub 2-0:1.0: USB hub found

<6>[    2.710000] hub 2-0:1.0: 4 ports detected

<6>[    2.720000] usbcore: registered new interface driver cdc_acm

<6>[    2.725000] cdc_acm: v0.26:USB Abstract Control Model driver for USB modems and ISDN adapters

<6>[    2.735000] usbcore: registered new interface driver cdc_wdm

<6>[    2.740000] Initializing USB Mass Storage driver...

<6>[    2.745000] usbcore: registered new interface driver usb-storage

<6>[    2.750000] USB Mass Storage support registered.

<6>[    2.755000] usbcore: registered new interface driver libusual

<6>[    2.760000] usbcore: registered new interface driver usbserial

<6>[    2.765000] usbserial: USB Serial Driver core

<6>[    2.770000] USB Serial support registered for GSM modem (1-port)

<6>[    2.780000] usbcore: registered new interface driver option

<6>[    2.785000] option: v0.7.2:USB Driver for GSM modems

<6>[    2.790000] USB Serial support registered for Qualcomm USB modem

<6>[    2.795000] usbcore: registered new interface driver qcserial

<6>[    2.800000] USB Serial support registered for Sierra USB modem

<6>[    2.810000] usbcore: registered new interface driver sierra

<6>[    2.815000] sierra: v.1.7.16:USB Driver for Sierra Wireless USB modems

<6>[    2.820000] iMAPx200 USB Device controller (c) 2009~2014

<3>[    2.835000] got and enabled clocks

<3>[    2.840000] allocate valid global buffer dc012000.

<3>[    2.845000] udc: irq no. 25

<3>[    2.845000] probe ok

<6>[    2.850000] android init

<6>[    2.850000] android_probe pdata: c0522f88

<3>[    2.855000] usb_gadget_register_driver() 'android_usb'

<3>[    2.860000] binding gadget driver 'android_usb'

<3>[    2.865000] ep0max=40

<3>[    2.865000] ix_set_selfpowered()

<6>[    2.870000] android_bind

<7>[    2.875000] android_bind_config

<4>[    2.875000] Gadget Android: controller 'iMAPx200-UDC' not recognized

<3>[    2.880000] ix_set_selfpowered()

<6>[    2.885000] android_usb gadget: android_usb ready

<3>[    2.890000] reg USB_BCWR: 0x00000000

<3>[    2.890000] reg USB_BCIER: 0x00000000

<3>[    2.895000] reg USB_BCIDR: 0x00000000

<3>[    2.900000] reg USB_BCISR: 0x00000000

<3>[    2.905000] reg USB_TBCR0: 0x00000000

<3>[    2.905000] reg USB_TBCR1: 0x00000010

<3>[    2.910000] reg USB_TBCR2: 0x00000000

<3>[    2.915000] reg USB_TBCR3: 0x00000000

<3>[    2.915000] reg USB_TBCR0: 0x00000000

<3>[    2.920000] reg USB_ACR: 0x00000000

<3>[    2.925000] reg USB_IER: 0x3f0f3c07

<1>[    2.930000] Error string, N

<6>[    2.930000] f_adb init

<6>[    2.935000] android_register_function adb

<6>[    2.935000] f_mass_storage init

<6>[    2.940000] fsg_probe pdev: c05236b0, pdata: (null)

<6>[    2.945000] android_register_function usb_mass_storage

<6>[    2.950000] adb_bind_config

<6>[    2.955000] android_usb gadget: Mass Storage Function, version: 2009/09/11

<6>[    2.960000] android_usb gadget: Number of LUNs=2

<6>[    2.960000]  lun0: LUN: removable file: (no medium)

<6>[    2.965000]  lun1: LUN: removable file: (no medium)

<6>[    2.975000] mice: PS/2 mouse device common for all mice

<1>[    2.980000] Error string, N

<3>[    2.985000] failed to get spken pin.

<3>[    2.985000] claim irq 30 OK, name sleep

<3>[    2.990000] claim irq 30 OK, name power

<3>[    2.995000] claim irq 47 OK, name menu

<1>[    3.000000] External interrupt should not be used by calling like this.

<3>[    3.005000] claim irq 5 OK, name back

<3>[    3.010000] claim irq 47 OK, name home

<1>[    3.010000] Error string, N

<3>[    3.015000] claim irq 47 OK, name volumeup

<3>[    3.020000] claim irq 47 OK, name volumedown

<1>[    3.025000] Error string, N

<6>[    3.025000] input: gpio-keys as /devices/platform/gpio-keys/input/input0

<3>[    3.030000] led0 is not defined.

<1>[    3.035000] External interrupt should not be used by calling like this.

<6>[    3.040000] ads7846 spi0.0: touchscreen, irq 1

<6>[    3.045000] input: ADS7846 Touchscreen as /devices/platform/imapx200_ssim0.0/spi0.0/input/input1

<6>[    3.055000] iMAPx200 RTCv2, (c) 2009, 2014 InfoTM Microelctronics Co., Ltd

<6>[    3.070000] using rtc device, imap, for alarms

<6>[    3.070000] imapx200_rtc imapx200_rtc: rtc core: registered imap as rtc0

<6>[    3.080000] i2c /dev entries driver

<6>[    3.085000] IR NEC protocol handler initialized

<6>[    3.090000] IR RC5(x) protocol handler initialized

<6>[    3.095000] IR RC6 protocol handler initialized

<6>[    3.100000] IR JVC protocol handler initialized

<6>[    3.105000] IR Sony protocol handler initialized

<6>[    3.110000] Linux video capture interface: v2.00

<6>[    3.115000] usbcore: registered new interface driver uvcvideo

<6>[    3.120000] USB Video Class driver (v0.1.0)

<4>[    3.130000] gt0308-ops-register

<6>[    3.130000] adding camif sensor: xhb:gt0308

<6>[    3.140000] device-mapper: uevent: version 1.0.3

<6>[    3.150000] device-mapper: ioctl: 4.17.0-ioctl (2010-03-05) initialised: [email protected]

<6>[    3.155000] sdhci: Secure Digital Host Controller Interface driver

<6>[    3.160000] sdhci: Copyright(c) Pierre Ossman

<6>[    3.160000] [SDHCI0]:infoTM sdhci host driver init.

<3>[    3.170000] [sdhci]-SDIO MAX CLOCK RATE = 86400000

<7>[    3.175000] Registered led device: mmc0::

<6>[    3.175000] mmc0: SDHCI controller on info_sdi0 [imapx200_sdi0.0] using ADMA

<6>[    3.180000] [SDHCI1]:infoTM sdhci host driver init.

<6>[    3.185000] channel 1 doesn't work right now

<3>[    3.190000] [sdhci]-SDIO MAX CLOCK RATE = 86400000

<7>[    3.195000] Registered led device: mmc1::

<6>[    3.195000] mmc1: SDHCI controller on info_sdi1 [imapx200_sdi1.1] using ADMA

<4>[    3.200000] wifi_switch module init

<1>[    3.205000] Error string, N

<1>[    3.205000] Error string, N

<1>[    3.210000] GPIO error, 0xffffffff.

<1>[    3.210000] GPIO error, 0xffffffff.

<3>[    3.215000] get wifi powers/switch pins failed.

<4>[    3.220000] switch-wifi: probe of switch-wifi.0 failed with error -25

<6>[    3.270000] usbcore: registered new interface driver usbhid

<6>[    3.275000] usbhid: USB HID core driver

<6>[    3.280000] logger: created 64K log 'log_main'

<6>[    3.285000] logger: created 256K log 'log_events'

<6>[    3.290000] logger: created 64K log 'log_radio'

<6>[    3.310000] logger: created 64K log 'log_system'

<6>[    3.345000] IX210 iDSP driver (c) 2009, 2014 InfoTM

<6>[    3.350000] IX210 iGPS driver (c) 2009, 2014 InfoTM

<4>[    3.355000] No device for DAI RT5621

<1>[    3.360000] Error string,

<3>[    3.365000] get alc5621 power pin failed. may be not configurated.

<7>[    3.370000] i2s clkdiv = 152, cdclkdiv = 0

<6>[    3.370000] RT5621 Audio Codec alsa 1.0.21 0.05

<6>[    3.375000] alsa version is 1.0.18, codec driver version is 0.04

<6>[    3.380000] asoc: RT5621 <-> imapx200-i2s mapping ok

<3>[    3.435000]  ------ monitor_connect_thread --------

<3>[    3.435000] ++++++ id low ++++++++

<1>[    3.440000] GPIO error, 0xffffffff.

<6>[    3.700000] ALSA device list:

<6>[    3.700000]   #0: imapx200 (RT5621)

<6>[    3.710000] TCP cubic registered

<6>[    3.710000] NET: Registered protocol family 17

<6>[    3.715000] VFP support v0.3: implementor 41 architecture 1 part 20 variant b rev 5

<6>[    3.725000] imapx200_rtc imapx200_rtc: setting system clock to 2011-12-17 23:08:06 UTC (1324163286)

<6>[    3.735000] input: bma150 as /devices/virtual/input/input2

<7>[    3.740000] FOUND calc 114583, divisor 36

<6>[    3.740000] Freeing init memory: 512K

<3>[    3.750000] init: /init.rc: 306: invalid option 'enabled'

<3>[    3.955000] ------ id low -------

<3>[    4.455000] b device votage OK

<3>[    4.455000] connected with host

<3>[    4.460000] usb connect

<3>[    4.460000] ~~~~~ device connect ~~~~

<3>[    4.630000] usb reset, speed=3

<3>[    4.720000] r:0x6rt:0x80v:0x100l:0x40i:0x0

<3>[    4.790000] usb reset, speed=3

<7>[    4.840000] FOUND calc 114583, divisor 36

<6>[    4.850000] yaffs: dev is 32505859 name is "mtdblock3" rw

<6>[    4.855000] yaffs: passed flags ""

<7>[    4.860000] yaffs: Attempting MTD mount of 31.3,"mtdblock3"

<3>[    4.925000] r:0x6rt:0x80v:0x100l:0x12i:0x0

<3>[    4.930000] r:0x6rt:0x80v:0x200l:0xffi:0x0

<3>[    4.935000] r:0x6rt:0x80v:0x303l:0xffi:0x409

<3>[    4.940000] r:0x6rt:0x80v:0x300l:0xffi:0x0

<3>[    4.945000] r:0x6rt:0x80v:0x302l:0xffi:0x409

<3>[    4.950000] r:0x6rt:0x80v:0x100l:0x12i:0x0

<3>[    4.955000] r:0x6rt:0x80v:0x200l:0x9i:0x0

<3>[    4.960000] r:0x6rt:0x80v:0x200l:0x20i:0x0

<3>[    4.965000] r:0x6rt:0x80v:0x300l:0x2i:0x0

<3>[    4.970000] r:0x6rt:0x80v:0x300l:0x4i:0x0

<3>[    4.970000] r:0x6rt:0x80v:0x303l:0x2i:0x409

<3>[    4.975000] r:0x6rt:0x80v:0x303l:0x1ai:0x409

<3>[    4.980000] __config_setup()

<6>[    4.980000] android_usb gadget: high speed config #1: android

<3>[    4.980000] #### udc: ix_vbus_draw ####

<3>[    4.985000] udc: ix_ep_enable, ep3

<3>[    4.985000] maxpacket:200

<3>[    4.985000] DescriptorType 5

<3>[    4.985000] write desc to ep3, desc=32000039

<3>[    4.990000] udc: ix_ep_enable, ep4

<3>[    4.995000] maxpacket:200

<3>[    4.995000] DescriptorType 5

<3>[    4.995000] write desc to ep4, desc=2000041

<3>[    5.030000] r:0xfert:0xa1v:0x0l:0x1i:0x0

<3>[    5.030000] Can not find queue for ep c0543090

<4>[    5.030000] android_usb gadget: error in submission: ep0 --> -22

<3>[    5.030000] Can not find queue for ep c0543090

<4>[    5.030000] android_usb gadget: error in submission: ep0 --> -22

<7>[    6.885000] yaffs_read_super: isCheckpointed 0

<7>[    6.915000] save exit: isCheckpointed 1

<6>[    6.915000] yaffs: dev is 32505860 name is "mtdblock4" rw

<6>[    6.920000] yaffs: passed flags ""

<7>[    6.925000] yaffs: Attempting MTD mount of 31.4,"mtdblock4"

<3>[    6.970000] iMAPx200 BBT: Bad block detected(MB): 0xf7

<7>[    6.975000] block 4 is bad

<3>[    6.975000] iMAPx200 BBT: Bad block detected(MB): 0x103

<7>[    6.980000] block 16 is bad

<3>[    6.980000] iMAPx200 BBT: Bad block detected(MB): 0x104

<7>[    6.985000] block 17 is bad

<3>[    6.985000] iMAPx200 BBT: Bad block detected(MB): 0x11c

<7>[    6.990000] block 41 is bad

<3>[    6.990000] iMAPx200 BBT: Bad block detected(MB): 0x12b

<7>[    6.995000] block 56 is bad

<3>[    6.995000] iMAPx200 BBT: Bad block detected(MB): 0x12d

<7>[    7.000000] block 58 is bad

<3>[    7.000000] iMAPx200 BBT: Bad block detected(MB): 0x12e

<7>[    7.005000] block 59 is bad

<3>[    7.005000] iMAPx200 BBT: Bad block detected(MB): 0x12f

<7>[    7.010000] block 60 is bad

<3>[    7.010000] iMAPx200 BBT: Bad block detected(MB): 0x130

<7>[    7.015000] block 61 is bad

<3>[    7.015000] iMAPx200 BBT: Bad block detected(MB): 0x131

<7>[    7.020000] block 62 is bad

<3>[    7.020000] iMAPx200 BBT: Bad block detected(MB): 0x132

<7>[    7.025000] block 63 is bad

<3>[    7.025000] iMAPx200 BBT: Bad block detected(MB): 0x133

<7>[    7.030000] block 64 is bad

<3>[    7.030000] iMAPx200 BBT: Bad block detected(MB): 0x134

<7>[    7.035000] block 65 is bad

<3>[    7.035000] iMAPx200 BBT: Bad block detected(MB): 0x135

<7>[    7.040000] block 66 is bad

<3>[    7.040000] iMAPx200 BBT: Bad block detected(MB): 0x136

<7>[    7.045000] block 67 is bad

<3>[    7.045000] iMAPx200 BBT: Bad block detected(MB): 0x137

<7>[    7.050000] block 68 is bad

<3>[    7.050000] iMAPx200 BBT: Bad block detected(MB): 0x138

<7>[    7.055000] block 69 is bad

<3>[    7.055000] iMAPx200 BBT: Bad block detected(MB): 0x139

<7>[    7.060000] block 70 is bad

<3>[    7.060000] iMAPx200 BBT: Bad block detected(MB): 0x146

<7>[    7.065000] block 83 is bad

<3>[    7.065000] iMAPx200 BBT: Bad block detected(MB): 0x147

<7>[    7.070000] block 84 is bad

<3>[    7.070000] iMAPx200 BBT: Bad block detected(MB): 0x14f

<7>[    7.075000] block 92 is bad

<3>[    7.080000] iMAPx200 BBT: Bad block detected(MB): 0x155

<7>[    7.085000] block 98 is bad

<3>[    7.085000] iMAPx200 BBT: Bad block detected(MB): 0x156

<7>[    7.090000] block 99 is bad

<3>[    7.090000] iMAPx200 BBT: Bad block detected(MB): 0x159

<7>[    7.095000] block 102 is bad

<3>[    7.095000] iMAPx200 BBT: Bad block detected(MB): 0x15e

<7>[    7.100000] block 107 is bad

<3>[    7.100000] iMAPx200 BBT: Bad block detected(MB): 0x160

<7>[    7.105000] block 109 is bad

<3>[    7.105000] iMAPx200 BBT: Bad block detected(MB): 0x162

<7>[    7.110000] block 111 is bad

<3>[    7.110000] iMAPx200 BBT: Bad block detected(MB): 0x163

<7>[    7.115000] block 112 is bad

<3>[    7.115000] iMAPx200 BBT: Bad block detected(MB): 0x165

<7>[    7.120000] block 114 is bad

<3>[    7.120000] iMAPx200 BBT: Bad block detected(MB): 0x167

<7>[    7.125000] block 116 is bad

<3>[    7.125000] iMAPx200 BBT: Bad block detected(MB): 0x168

<7>[    7.130000] block 117 is bad

<3>[    7.130000] iMAPx200 BBT: Bad block detected(MB): 0x16a

<7>[    7.135000] block 119 is bad

<3>[    7.135000] iMAPx200 BBT: Bad block detected(MB): 0x16b

<7>[    7.140000] block 120 is bad

<3>[    7.140000] iMAPx200 BBT: Bad block detected(MB): 0x17b

<7>[    7.145000] block 136 is bad

<3>[    7.145000] iMAPx200 BBT: Bad block detected(MB): 0x17c

<7>[    7.150000] block 137 is bad

<3>[    7.150000] iMAPx200 BBT: Bad block detected(MB): 0x17d

<7>[    7.155000] block 138 is bad

<3>[    7.155000] iMAPx200 BBT: Bad block detected(MB): 0x17e

<7>[    7.160000] block 139 is bad

<3>[    7.160000] iMAPx200 BBT: Bad block detected(MB): 0x17f

<7>[    7.165000] block 140 is bad

<3>[    7.165000] iMAPx200 BBT: Bad block detected(MB): 0x180

<7>[    7.170000] block 141 is bad

<3>[    7.170000] iMAPx200 BBT: Bad block detected(MB): 0x181

<7>[    7.175000] block 142 is bad

<3>[    7.175000] iMAPx200 BBT: Bad block detected(MB): 0x182

<7>[    7.180000] block 143 is bad

<3>[    7.180000] iMAPx200 BBT: Bad block detected(MB): 0x184

<7>[    7.185000] block 145 is bad

<3>[    7.185000] iMAPx200 BBT: Bad block detected(MB): 0x18a

<7>[    7.190000] block 151 is bad

<3>[    7.190000] iMAPx200 BBT: Bad block detected(MB): 0x18c

<7>[    7.195000] block 153 is bad

<3>[    7.195000] iMAPx200 BBT: Bad block detected(MB): 0x18e

<7>[    7.200000] block 155 is bad

<3>[    7.200000] iMAPx200 BBT: Bad block detected(MB): 0x192

<7>[    7.205000] block 159 is bad

<3>[    7.205000] iMAPx200 BBT: Bad block detected(MB): 0x197

<7>[    7.210000] block 164 is bad

<3>[    7.210000] iMAPx200 BBT: Bad block detected(MB): 0x199

<7>[    7.215000] block 166 is bad

<3>[    7.220000] iMAPx200 BBT: Bad block detected(MB): 0x1cd

<7>[    7.225000] block 218 is bad

<3>[    7.225000] iMAPx200 BBT: Bad block detected(MB): 0x1e3

<7>[    7.230000] block 240 is bad

<3>[    7.230000] iMAPx200 BBT: Bad block detected(MB): 0x1e4

<7>[    7.235000] block 241 is bad

<3>[    7.235000] iMAPx200 BBT: Bad block detected(MB): 0x1e5

<7>[    7.240000] block 242 is bad

<3>[    7.240000] iMAPx200 BBT: Bad block detected(MB): 0x1e6

<7>[    7.245000] block 243 is bad

<3>[    7.245000] iMAPx200 BBT: Bad block detected(MB): 0x1e7

<7>[    7.250000] block 244 is bad

<3>[    7.250000] iMAPx200 BBT: Bad block detected(MB): 0x1e8

<7>[    7.255000] block 245 is bad

<3>[    7.255000] iMAPx200 BBT: Bad block detected(MB): 0x1e9

<7>[    7.260000] block 246 is bad

<3>[    7.260000] iMAPx200 BBT: Bad block detected(MB): 0x1ff

<7>[    7.265000] block 268 is bad

<3>[    7.265000] iMAPx200 BBT: Bad block detected(MB): 0x200

<7>[    7.270000] block 269 is bad

<3>[    7.270000] iMAPx200 BBT: Bad block detected(MB): 0x201

<7>[    7.275000] block 270 is bad

<3>[    7.275000] iMAPx200 BBT: Bad block detected(MB): 0x202

<7>[    7.280000] block 271 is bad

<3>[    7.280000] iMAPx200 BBT: Bad block detected(MB): 0x203

<7>[    7.285000] block 272 is bad

<3>[    7.285000] iMAPx200 BBT: Bad block detected(MB): 0x205

<7>[    7.290000] block 274 is bad

<3>[    7.290000] iMAPx200 BBT: Bad block detected(MB): 0x206

<7>[    7.295000] block 275 is bad

<3>[    7.295000] iMAPx200 BBT: Bad block detected(MB): 0x207

<7>[    7.300000] block 276 is bad

<3>[    7.300000] iMAPx200 BBT: Bad block detected(MB): 0x208

<7>[    7.305000] block 277 is bad

<3>[    7.305000] iMAPx200 BBT: Bad block detected(MB): 0x209

<7>[    7.310000] block 278 is bad

<3>[    7.310000] iMAPx200 BBT: Bad block detected(MB): 0x20e

<7>[    7.315000] block 283 is bad

<3>[    7.315000] iMAPx200 BBT: Bad block detected(MB): 0x210

<7>[    7.325000] block 285 is bad

<3>[    7.325000] iMAPx200 BBT: Bad block detected(MB): 0x211

<7>[    7.330000] block 286 is bad

<3>[    7.330000] iMAPx200 BBT: Bad block detected(MB): 0x214

<7>[    7.335000] block 289 is bad

<3>[    7.335000] iMAPx200 BBT: Bad block detected(MB): 0x216

<7>[    7.340000] block 291 is bad

<3>[    7.340000] iMAPx200 BBT: Bad block detected(MB): 0x217

<7>[    7.345000] block 292 is bad

<3>[    7.345000] iMAPx200 BBT: Bad block detected(MB): 0x219

<7>[    7.350000] block 294 is bad

<3>[    7.350000] iMAPx200 BBT: Bad block detected(MB): 0x21b

<7>[    7.355000] block 296 is bad

<3>[    7.355000] iMAPx200 BBT: Bad block detected(MB): 0x21c

<7>[    7.360000] block 297 is bad

<3>[    7.360000] iMAPx200 BBT: Bad block detected(MB): 0x21d

<7>[    7.365000] block 298 is bad

<3>[    7.365000] iMAPx200 BBT: Bad block detected(MB): 0x221

<7>[    7.370000] block 302 is bad

<3>[    7.370000] iMAPx200 BBT: Bad block detected(MB): 0x229

<7>[    7.375000] block 310 is bad

<3>[    7.375000] iMAPx200 BBT: Bad block detected(MB): 0x22a

<7>[    7.380000] block 311 is bad

N

NEM3SIS

Member
Dec 17, 2011
23
8
Part 2 : Note - Those bad blocks look... bad.

Code:
<3>[    7.385000] iMAPx200 BBT: Bad block detected(MB): 0x262

<7>[    7.390000] block 367 is bad

<3>[    7.390000] iMAPx200 BBT: Bad block detected(MB): 0x272

<7>[    7.395000] block 383 is bad

<3>[    7.400000] iMAPx200 BBT: Bad block detected(MB): 0x284

<7>[    7.405000] block 401 is bad

<3>[    7.405000] iMAPx200 BBT: Bad block detected(MB): 0x29f

<7>[    7.410000] block 428 is bad

<3>[    7.415000] iMAPx200 BBT: Bad block detected(MB): 0x2d5

<7>[    7.420000] block 482 is bad

<3>[    7.420000] iMAPx200 BBT: Bad block detected(MB): 0x2fc

<7>[    7.425000] block 521 is bad

<3>[    7.430000] iMAPx200 BBT: Bad block detected(MB): 0x328

<7>[    7.435000] block 565 is bad

<3>[    7.435000] iMAPx200 BBT: Bad block detected(MB): 0x329

<7>[    7.440000] block 566 is bad

<7>[    7.445000] yaffs_read_super: isCheckpointed 0

<6>[    7.445000] yaffs: dev is 32505861 name is "mtdblock5" rw

<6>[    7.450000] yaffs: passed flags ""

<7>[    7.450000] yaffs: Attempting MTD mount of 31.5,"mtdblock5"

<3>[    7.455000] iMAPx200 BBT: Bad block detected(MB): 0x32b

<7>[    7.460000] block 1 is bad

<3>[    7.460000] iMAPx200 BBT: Bad block detected(MB): 0x32c

<7>[    7.465000] block 2 is bad

<3>[    7.465000] iMAPx200 BBT: Bad block detected(MB): 0x32d

<7>[    7.470000] block 3 is bad

<3>[    7.470000] iMAPx200 BBT: Bad block detected(MB): 0x32e

<7>[    7.475000] block 4 is bad

<3>[    7.475000] iMAPx200 BBT: Bad block detected(MB): 0x338

<7>[    7.480000] block 14 is bad

<3>[    7.480000] iMAPx200 BBT: Bad block detected(MB): 0x33a

<7>[    7.485000] block 16 is bad

<7>[    7.640000] yaffs tragedy: Bad object type, 1 != 3, for object 258 at chunk 5150 during scan

<7>[    7.760000] FOUND calc 114583, divisor 36

<3>[    7.815000] init: cannot find '/system/etc/install-recovery.sh', disabling 'flash_recovery'

<1>[    8.095000] shm_so_ioctl line 294: Shared memory allocated, 0x51688666.

<7>[    8.100000] [OPS DEBUG] Get into asysops device driver

<7>[    8.100000] [OPS DEBUG] Open asysops device node OK

<7>[    8.100000] [OPS DEBUG] Get asysops ioctl

<7>[    8.100000] [OPS DEBUG] ASYSOPS_CMD_GET_SHMEM

<7>[    8.100000] [OPS DEBUG] Normal exit asysops ioctl, 0

<7>[    8.105000] [OPS DEBUG] Get into asysops device driver

<7>[    8.105000] [OPS DEBUG] Open asysops device node OK

<7>[    8.105000] [OPS DEBUG] Get asysops ioctl

<7>[    8.105000] [OPS DEBUG] ASYSOPS_CMD_GET_SHMEM

<7>[    8.105000] [OPS DEBUG] Normal exit asysops ioctl, 0

<7>[    8.105000] [OPS DEBUG] Get into asysops device driver

<7>[    8.105000] [OPS DEBUG] Open asysops device node OK

<7>[    8.105000] [OPS DEBUG] Get asysops ioctl

<7>[    8.105000] [OPS DEBUG] ASYSOPS_CMD_GET_SHMEM

<7>[    8.105000] [OPS DEBUG] Normal exit asysops ioctl, 0

<7>[    8.105000] [OPS DEBUG] Get into asysops device driver

<7>[    8.105000] [OPS DEBUG] Open asysops device node OK

<7>[    8.105000] [OPS DEBUG] Get asysops ioctl

<7>[    8.105000] [OPS DEBUG] ASYSOPS_CMD_GET_SHMEM

<7>[    8.105000] [OPS DEBUG] Normal exit asysops ioctl, 0

<7>[    8.105000] [OPS DEBUG] Get into asysops device driver

<7>[    8.105000] [OPS DEBUG] Open asysops device node OK

<7>[    8.105000] [OPS DEBUG] Get asysops ioctl

<7>[    8.105000] [OPS DEBUG] ASYSOPS_CMD_GET_SHMEM

<7>[    8.105000] [OPS DEBUG] Normal exit asysops ioctl, 0

<7>[    8.105000] [OPS DEBUG] Get into asysops device driver

<7>[    8.105000] [OPS DEBUG] Open asysops device node OK

<7>[    8.105000] [OPS DEBUG] Get asysops ioctl

<7>[    8.105000] [OPS DEBUG] ASYSOPS_CMD_GET_SHMEM

<7>[    8.105000] [OPS DEBUG] Normal exit asysops ioctl, 0

<7>[    8.105000] [OPS DEBUG] Get into asysops device driver

<7>[    8.105000] [OPS DEBUG] Open asysops device node OK

<7>[    8.105000] [OPS DEBUG] Get asysops ioctl

<7>[    8.105000] [OPS DEBUG] ASYSOPS_CMD_GET_SHMEM

<7>[    8.105000] [OPS DEBUG] Normal exit asysops ioctl, 0

<7>[    8.105000] [OPS DEBUG] Get into asysops device driver

<7>[    8.105000] [OPS DEBUG] Open asysops device node OK

<7>[    8.105000] [OPS DEBUG] Get asysops ioctl

<7>[    8.105000] [OPS DEBUG] ASYSOPS_CMD_GET_SHMEM

<7>[    8.105000] [OPS DEBUG] Normal exit asysops ioctl, 0

<6>[    8.185000] warning: `usbdongled' uses 32-bit capabilities (legacy support in use)

<5>[    8.445000] UBI: attaching mtd6 to ubi0

<5>[    8.450000] UBI: physical eraseblock size:   2097152 bytes (2048 KiB)

<5>[    8.455000] UBI: logical eraseblock size:    2080768 bytes

<5>[    8.460000] UBI: smallest flash I/O unit:    8192

<5>[    8.465000] UBI: VID header offset:          8192 (aligned 8192)

<5>[    8.470000] UBI: data offset:                16384

<4>[    9.100000] Vivante GPU power is ON

<5>[   10.795000] UBI: max. sequence number:       53

<5>[   10.815000] UBI: attached mtd6 to ubi0

<5>[   10.820000] UBI: MTD device name:            "Local-disk"

<5>[   10.825000] UBI: MTD device size:            2408 MiB

<5>[   10.830000] UBI: number of good PEBs:        1204

<5>[   10.835000] UBI: number of bad PEBs:         0

<5>[   10.840000] UBI: number of corrupted PEBs:   0

<5>[   10.845000] UBI: max. allowed volumes:       128

<5>[   10.845000] UBI: wear-leveling threshold:    512

<5>[   10.850000] UBI: number of internal volumes: 1

<5>[   10.855000] UBI: number of user volumes:     1

<5>[   10.860000] UBI: available PEBs:             0

<5>[   10.865000] UBI: total number of reserved PEBs: 1204

<5>[   10.870000] UBI: number of PEBs reserved for bad PEB handling: 12

<5>[   10.875000] UBI: max/mean erase counter: 2/1

<5>[   10.880000] UBI: image sequence number:  899738211

<5>[   10.890000] UBI: background thread "ubi_bgt0d" started, PID 2149

<4>[   10.910000] FTL:create ftl index...

<3>[   11.565000] iMAPx200 NAND: SDMA write timeout

<4>[   12.425000] FTL:create index ok!

<4>[   12.430000] FTL:leb page num = 254, leb page size = 8192, full state = 65535

<7>[   14.355000] i2s clkdiv = 305, cdclkdiv = 18

<7>[   14.360000] ----src_addr0 is 5c18a000, src_addr1 is 5c18b000

<1>[  139.200000] shm_so_ioctl line 249: Shared memory reuse, 0x51688666.

<1>[  139.215000] shm_so_ioctl line 294: Shared memory allocated, 0x51888888.

<6>[  140.410000] request_suspend_state: wakeup (3->0) at 140416589002 (2011-12-17 23:10:23.189827000 UTC)

<7>[  144.050000] [OPS DEBUG] Get into asysops device driver

<7>[  144.050000] [OPS DEBUG] Open asysops device node OK

<7>[  144.050000] [OPS DEBUG] Get asysops ioctl

<7>[  144.050000] [OPS DEBUG] ASYSOPS_CMD_GET_SHMEM

<7>[  144.050000] [OPS DEBUG] Normal exit asysops ioctl, 0

<7>[  144.155000] [OPS DEBUG] Get into asysops device driver

<7>[  144.155000] [OPS DEBUG] Open asysops device node OK

<7>[  144.155000] [OPS DEBUG] Get asysops ioctl

<7>[  144.155000] [OPS DEBUG] ASYSOPS_CMD_GET_SHMEM

<7>[  144.155000] [OPS DEBUG] Normal exit asysops ioctl, 724249387

<1>[  146.435000] Current gpio can't be set to be sleep mode!

<1>[  146.440000] Current gpio has no sleep mode!

<6>[  146.440000] Function (c02f81e0) bind to DSPIPC interrupt.

<4>[  147.885000] __kread_file: file end before demonded bytes.

<6>[  147.905000] Using defaut DSP binary file.

<4>[  147.970000] __kread_file: file end before demonded bytes.

<6>[  148.005000] Using defaut aiding file.

<7>[  149.670000] [OPS DEBUG] Get into asysops device driver

<7>[  149.670000] [OPS DEBUG] Open asysops device node OK

<7>[  149.670000] [OPS DEBUG] Get asysops ioctl

<7>[  149.670000] [OPS DEBUG] ASYSOPS_CMD_GET_SHMEM

<7>[  149.670000] [OPS DEBUG] Normal exit asysops ioctl, 0

<7>[  149.700000] [OPS DEBUG] Get into asysops device driver

<7>[  149.700000] [OPS DEBUG] Open asysops device node OK

<7>[  149.700000] [OPS DEBUG] Get asysops ioctl

<7>[  149.700000] [OPS DEBUG] ASYSOPS_CMD_GET_SHMEM

<7>[  149.700000] [OPS DEBUG] Normal exit asysops ioctl, 724249387

<3>[  152.850000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  152.850000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  152.850000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  152.850000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  152.850000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  152.850000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  152.860000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  152.875000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  152.885000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  153.365000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  153.370000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  153.375000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  153.380000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  153.385000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  153.390000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  153.395000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  153.400000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  153.425000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  153.580000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  153.595000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  153.595000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  153.610000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  153.615000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  153.620000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  153.635000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  153.640000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  153.655000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  153.780000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  153.785000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  153.805000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  153.805000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  153.820000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  153.840000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  153.880000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  153.880000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  153.905000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  153.905000] UBI error: ubi_io_read_page: error -74 (ECC  error) while reading page from PEB 305:876544, read 8192 bytes

<4>[  153.910000] FTL:err = -74, block = 4, page = 105

<4>[  153.915000] FTL:432

<3>[  153.915000] end_request: I/O error, dev ubiblk0, sector 1152

<3>[  153.915000] Buffer I/O error on device ubiblk0, logical block 144

<3>[  153.990000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  154.005000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  154.010000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  154.015000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  154.015000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  154.025000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  154.030000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  154.035000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  154.040000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  154.100000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  154.105000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  154.110000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  154.115000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  154.120000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  154.125000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  154.130000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  154.140000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  154.145000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  154.185000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  154.200000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  154.205000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  154.205000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  154.225000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  154.230000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  154.240000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  154.240000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  154.260000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  154.430000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  154.435000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  154.435000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  154.450000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  154.460000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  154.465000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  154.480000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  154.485000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  154.485000] iMAPx200 NAND: Uncorrectable ECC error.

<3>[  154.490000] UBI error: ubi_io_read_page: error -74 (ECC  error) while reading page from PEB 305:876544, read 8192 bytes

<4>[  154.495000] FTL:err = -74, block = 4, page = 105

<4>[  154.500000] FTL:432

<3>[  154.500000] end_request: I/O error, dev ubiblk0, sector 1152

<3>[  154.500000] Buffer I/O error on device ubiblk0, logical block 144

<7>[  160.955000] [OPS DEBUG] Get into asysops device driver

<7>[  160.955000] [OPS DEBUG] Open asysops device node OK

<7>[  160.955000] [OPS DEBUG] Get asysops ioctl

<7>[  160.955000] [OPS DEBUG] ASYSOPS_CMD_GET_SHMEM

<7>[  160.955000] [OPS DEBUG] Normal exit asysops ioctl, 724249387

<7>[  160.960000] [OPS DEBUG] Get into asysops device driver

<7>[  160.960000] [OPS DEBUG] Open asysops device node OK

<7>[  160.960000] [OPS DEBUG] Get asysops ioctl

<7>[  160.960000] [OPS DEBUG] ASYSOPS_CMD_GET_SHMEM

<7>[  160.960000] [OPS DEBUG] Normal exit asysops ioctl, 724249387

<7>[  160.965000] [OPS DEBUG] Get into asysops device driver

<7>[  160.965000] [OPS DEBUG] Open asysops device node OK

<7>[  160.965000] [OPS DEBUG] Get asysops ioctl

<7>[  160.965000] [OPS DEBUG] ASYSOPS_CMD_GET_SHMEM

<7>[  160.965000] [OPS DEBUG] Normal exit asysops ioctl, 724249387

<7>[  160.965000] [OPS DEBUG] Get into asysops device driver

<7>[  160.965000] [OPS DEBUG] Open asysops device node OK

<7>[  160.965000] [OPS DEBUG] Get asysops ioctl

<7>[  160.965000] [OPS DEBUG] ASYSOPS_CMD_GET_SHMEM

<7>[  160.965000] [OPS DEBUG] Normal exit asysops ioctl, 0

<7>[  160.970000] [OPS DEBUG] Get into asysops device driver

<7>[  160.970000] [OPS DEBUG] Open asysops device node OK

<7>[  160.970000] [OPS DEBUG] Get asysops ioctl

<7>[  160.970000] [OPS DEBUG] ASYSOPS_CMD_GET_SHMEM

<7>[  160.970000] [OPS DEBUG] Normal exit asysops ioctl, 0

<7>[  160.975000] [OPS DEBUG] Get into asysops device driver

<7>[  160.975000] [OPS DEBUG] Open asysops device node OK

<7>[  160.975000] [OPS DEBUG] Get asysops ioctl

<7>[  160.975000] [OPS DEBUG] ASYSOPS_CMD_GET_SHMEM

<7>[  160.975000] [OPS DEBUG] Normal exit asysops ioctl, 0

<6>[  188.690000] enabling adb

<3>[  188.695000] ix_pullup()

<3>[  188.695000] ix_pullup: find otg pull up

<1>[  188.695000] Error string, N

<1>[  189.000000] GPIO error, 0xffffffff.

<3>[  189.510000] ep_disable: ep1

<3>[  189.510000] ep_disable: ep2

<3>[  189.515000] ix_dequeue: ix_dequeue

<3>[  189.515000] ep_disable: ep3

<3>[  189.520000] ep_disable: ep4

<3>[  189.525000] b device votage OK

<3>[  189.525000] connected with host

<3>[  189.530000] usb connect

<3>[  189.530000] ~~~~~ device connect ~~~~

<3>[  190.535000] ix_pullup()

<3>[  190.535000] ix_pullup: find otg pull up

<1>[  190.540000] Error string, N

<1>[  190.845000] GPIO error, 0xffffffff.

<3>[  190.845000] usb reset, speed=3

<3>[  191.035000] b device votage OK

<3>[  191.040000] connected with host

<3>[  191.040000] usb connect

<3>[  191.045000] ~~~~~ device connect ~~~~

<3>[  191.210000] usb reset, speed=3

<3>[  191.305000] r:0x6rt:0x80v:0x100l:0x40i:0x0

<6>[  191.360000] adb_open

<3>[  191.375000] usb reset, speed=3

<3>[  191.510000] r:0x6rt:0x80v:0x100l:0x12i:0x0

<3>[  191.515000] r:0x6rt:0x80v:0x200l:0xffi:0x0

<3>[  191.520000] r:0x6rt:0x80v:0x303l:0xffi:0x409

<3>[  191.520000] r:0x6rt:0x80v:0x300l:0xffi:0x0

<3>[  191.525000] r:0x6rt:0x80v:0x302l:0xffi:0x409

<3>[  191.530000] r:0x6rt:0x80v:0x100l:0x12i:0x0

<3>[  191.535000] r:0x6rt:0x80v:0x200l:0x9i:0x0

<3>[  191.540000] r:0x6rt:0x80v:0x200l:0x37i:0x0

<3>[  191.545000] __config_setup()

<6>[  191.545000] android_usb gadget: high speed config #1: android

<3>[  191.545000] udc: ix_ep_enable, ep1

<3>[  191.545000] maxpacket:200

<3>[  191.545000] DescriptorType 5

<3>[  191.545000] write desc to ep1, desc=12000019

<3>[  191.545000] udc: ix_ep_enable, ep2

<3>[  191.545000] maxpacket:200

<3>[  191.545000] DescriptorType 5

<3>[  191.545000] write desc to ep2, desc=2000021

<3>[  191.545000] #### udc: ix_vbus_draw ####

<3>[  191.545000] r:0x6rt:0x80v:0x302l:0x4i:0x409

<3>[  191.545000] Can not find queue for ep c0543090

<3>[  191.550000] udc: ix_ep_enable, ep3

<3>[  191.550000] r:0x6rt:0x80v:0x302l:0x8i:0x409

<3>[  191.555000] maxpacket:200

<3>[  191.555000] DescriptorType 5

<3>[  191.555000] write desc to ep3, desc=32000039

<3>[  191.555000] r:0x6rt:0x80v:0x304l:0x4i:0x409

<3>[  191.560000] udc: ix_ep_enable, ep4

<3>[  191.560000] r:0x6rt:0x80v:0x304l:0x1ai:0x409

<3>[  191.565000] maxpacket:200

<3>[  191.565000] DescriptorType 5

<3>[  191.565000] write desc to ep4, desc=2000041

<3>[  191.570000] r:0x6rt:0x80v:0x300l:0x2i:0x0

<3>[  191.575000] r:0x6rt:0x80v:0x300l:0x4i:0x0

<3>[  191.580000] r:0x6rt:0x80v:0x303l:0x2i:0x409

<3>[  191.585000] r:0x6rt:0x80v:0x303l:0x1ai:0x409

<3>[  191.655000] r:0xfert:0xa1v:0x0l:0x1i:0x1

<3>[  192.555000] r:0x6rt:0x80v:0x303l:0x40i:0x409

<6>[ 1119.430000] request_suspend_state: sleep (0->3) at 1119436589002 (2011-12-17 23:26:42.205643000 UTC)

<6>[ 1119.435000] imapfb_early_suspend!

<1>[ 1119.545000] Error string, N

<1>[ 1119.545000] Error string, N

<7>[ 1119.605000] save exit: isCheckpointed 1

<6>[ 1841.115000] request_suspend_state: wakeup (3->0) at 1841121589002 (2011-12-17 23:38:43.890836000 UTC)

<6>[ 1841.120000] imapfb_early_resume!

<1>[ 1841.120000] Error string, N

<1>[ 1841.125000] Error string, N

<3>[ 1841.230000] pwm resume !!

<6>[ 1862.840000] request_suspend_state: sleep (0->3) at 1862846589002 (2011-12-17 23:39:05.615564000 UTC)

<6>[ 1862.845000] imapfb_early_suspend!

<1>[ 1862.955000] Error string, N

<1>[ 1862.955000] Error string, N

<7>[ 1863.015000] save exit: isCheckpointed 1

<3>[ 2522.795000] ep_disable: ep1

<3>[ 2522.795000] ep_disable: ep2

<3>[ 2522.795000] udc,in while list

<3>[ 2522.795000] usb suspend

<6>[ 2522.800000] adb_release

<3>[ 2522.805000] ix_dequeue: ix_dequeue

<3>[ 2522.805000] ep_disable: ep3

<3>[ 2522.810000] ep_disable: ep4

<6>[ 2522.820000] binder: 2166:2294 BC_FREE_BUFFER u44312028 no match

<6>[ 2522.830000] adb_open

<7>[ 2522.935000] save exit: isCheckpointed 1

<6>[ 2522.935000] PM: Syncing filesystems ... done.

<4>[ 2522.955000] Freezing user space processes ... (elapsed 0.01 seconds) done.

<4>[ 2522.980000] Freezing remaining freezable tasks ... (elapsed 0.01 seconds) done.

<4>[ 2523.000000] Suspending console(s) (use no_console_suspend to debug)

<4>[ 2523.010000] Vivante GPU power is  OFF

<6>[ 2523.010000] alarm_suspend(dc3b5200, 2)

<6>[ 2523.010000] rtc alarm set at 1324167046, now 1324165806, rtc delta -1.787183000

<0>[ 2523.010000] Enter ads7846_suspend

<6>[ 2523.010000] Enter android_bat_suspend

<1>[ 2523.015000] Current gpio can't be set to be sleep mode!

<1>[ 2523.015000] Current gpio has no sleep mode!

<6>[ 2523.015000] Suspend HDMI

<6>[ 2523.020000] imapfb_suspend!

<1>[ 2523.125000] Error string, N

<1>[ 2523.125000] Error string, N

<6>[ 2523.165000] PM: suspend of devices complete after 155.000 msecs

<6>[ 2523.165000] PM: late suspend of devices complete after 0.001 msecs

<7>[ 2523.165000] imapx200_pm_enter(3)

<7>[ 2523.165000] imapx200_sleep_save_phys=0x40557af4

<6>[ 2523.165000] imapx200_sleep_save_phys=0x40557af4

<7>[ 2523.165000] sleep: irq wakeup masks: ffffffff,ffffffff

<6>[ 2523.165000] PM: early resume of devices complete after 0.001 msecs

<6>[ 2523.165000] imapfb_resume!

<1>[ 2523.215000] Error string, N

<1>[ 2523.215000] Error string, N

<3>[ 2523.320000] pwm resume !!

<4>[ 2523.320000] usb usb1: root hub lost power or was reset

<4>[ 2523.400000] usb usb2: root hub lost power or was reset

<6>[ 2523.400000] Resume HDMI

<3>[ 2523.400000] ix_gps_open: GPS node is already opened.

<6>[ 2523.400000] Resume DSP binary from DRAM.

<6>[ 2523.405000] Enter android_bat_resume

<7>[ 2523.405000] FOUND calc 114583, divisor 36

<3>[ 2523.405000] resume port3: mdelay.

<6>[ 2523.410000] wakeup wake lock: alarm

<6>[ 2523.425000] iic Resume hdmi

<1>[ 2523.425000] Current gpio can't be set to be sleep mode!

<1>[ 2523.425000] Current gpio has no sleep mode!

<0>[ 2523.635000] Enter ads7846_resume

<6>[ 2523.810000] alarm_resume(dc3b5200)

<4>[ 2523.810000] Vivante GPU power is ON

<4>[ 2523.810000] func rt5621_resume

<6>[ 2523.815000] PM: resume of devices complete after 654.397 msecs

<4>[ 2523.820000] Restarting tasks ...

<3>[ 2523.820000] b device votage OK

<3>[ 2523.825000] connected with host

<3>[ 2523.830000] usb connect

<3>[ 2523.830000] ~~~~~ device connect ~~~~

<4>[ 2523.855000] done.

<3>[ 2524.000000] usb reset, speed=3

<3>[ 2524.090000] r:0x6rt:0x80v:0x100l:0x40i:0x0

<6>[ 2524.125000] suspend: exit suspend, ret = 0 (2011-12-17 23:54:22.818512000 UTC)

<6>[ 2524.130000] request_suspend_state: wakeup (3->0) at 2524141653002 (2011-12-17 23:54:22.824602000 UTC)

<6>[ 2524.145000] imapfb_early_resume!

<1>[ 2524.145000] Error string, N

<1>[ 2524.150000] Error string, N

<3>[ 2524.150000] usb reset, speed=3

<3>[ 2524.255000] pwm resume !!

<3>[ 2524.285000] r:0x6rt:0x80v:0x100l:0x12i:0x0

<3>[ 2524.290000] r:0x6rt:0x80v:0x200l:0xffi:0x0

<3>[ 2524.295000] r:0x6rt:0x80v:0x303l:0xffi:0x409

<3>[ 2524.300000] r:0x6rt:0x80v:0x300l:0xffi:0x0

<3>[ 2524.305000] r:0x6rt:0x80v:0x302l:0xffi:0x409

<3>[ 2524.310000] r:0x6rt:0x80v:0x100l:0x12i:0x0

<3>[ 2524.310000] r:0x6rt:0x80v:0x200l:0x9i:0x0

<3>[ 2524.310000] r:0x6rt:0x80v:0x200l:0x37i:0x0

<3>[ 2524.310000] __config_setup()

<6>[ 2524.310000] android_usb gadget: high speed config #1: android

<3>[ 2524.310000] udc: ix_ep_enable, ep1

<3>[ 2524.310000] maxpacket:200

<3>[ 2524.310000] DescriptorType 5

<3>[ 2524.310000] write desc to ep1, desc=12000019

<3>[ 2524.310000] udc: ix_ep_enable, ep2

<3>[ 2524.310000] maxpacket:200

<3>[ 2524.310000] DescriptorType 5

<3>[ 2524.310000] write desc to ep2, desc=2000021

<3>[ 2524.310000] #### udc: ix_vbus_draw ####

<3>[ 2524.310000] udc: ix_ep_enable, ep3

<3>[ 2524.310000] maxpacket:200

<3>[ 2524.310000] DescriptorType 5

<3>[ 2524.310000] write desc to ep3, desc=32000039

<3>[ 2524.310000] udc: ix_ep_enable, ep4

<3>[ 2524.310000] maxpacket:200

<3>[ 2524.310000] DescriptorType 5

<3>[ 2524.310000] write desc to ep4, desc=2000041

<3>[ 2524.310000] r:0x6rt:0x80v:0x302l:0x4i:0x409

<3>[ 2524.310000] Can not find queue for ep c0543090

<3>[ 2524.310000] r:0x6rt:0x80v:0x302l:0x8i:0x409

<3>[ 2524.315000] r:0x6rt:0x80v:0x304l:0x4i:0x409

<3>[ 2524.315000] r:0x6rt:0x80v:0x304l:0x1ai:0x409

<3>[ 2524.320000] r:0x6rt:0x80v:0x300l:0x2i:0x0

<3>[ 2524.320000] r:0x6rt:0x80v:0x300l:0x4i:0x0

<3>[ 2524.325000] r:0x6rt:0x80v:0x303l:0x2i:0x409

<3>[ 2524.330000] r:0x6rt:0x80v:0x303l:0x1ai:0x409

<3>[ 2524.400000] r:0xfert:0xa1v:0x0l:0x1i:0x1

<3>[ 2524.495000] r:0x6rt:0x80v:0x303l:0x40i:0x409

<6>[ 2525.410000] request_suspend_state: sleep (0->3) at 2525421653002 (2011-12-17 23:54:24.100638000 UTC)

<6>[ 2525.415000] imapfb_early_suspend!

<1>[ 2525.525000] Error string, N

<1>[ 2525.525000] Error string, N

<7>[ 2525.680000] save exit: isCheckpointed 1

<6>[ 2527.625000] request_suspend_state: wakeup (3->0) at 2527636653002 (2011-12-17 23:54:26.317577000 UTC)

<6>[ 2527.625000] imapfb_early_resume!

<1>[ 2527.625000] Error string, N

<1>[ 2527.625000] Error string, N

<3>[ 2527.730000] pwm resume !!

<3>[ 2583.650000] r:0x6rt:0x80v:0x303l:0x40i:0x409

<7>[ 2588.555000] save exit: isCheckpointed 1

<7>[ 2588.610000] save exit: isCheckpointed 1

<7>[ 2606.955000] save exit: isCheckpointed 1

<6>[ 2610.935000] disabling adb

<3>[ 2610.935000] init: untracked pid 2815 exited

<3>[ 2610.945000] ix_pullup()

<3>[ 2610.945000] ix_pullup: find otg pull up

<1>[ 2610.950000] Error string, N

<3>[ 2610.955000] init: untracked pid 2775 exited

<1>[ 2611.255000] GPIO error, 0xffffffff.

<3>[ 2611.765000] ep_disable: ep1

<3>[ 2611.765000] ep_disable: ep2

<3>[ 2611.765000] udc,in while list

<3>[ 2611.770000] ix_dequeue: ix_dequeue

<3>[ 2611.775000] ep_disable: ep3

<3>[ 2611.775000] ep_disable: ep4

<3>[ 2611.840000] b device votage OK

<3>[ 2611.840000] connected with host

<3>[ 2611.845000] usb connect

<3>[ 2611.845000] ~~~~~ device connect ~~~~

<3>[ 2612.790000] ix_pullup()

<3>[ 2612.790000] ix_pullup: find otg pull up

<1>[ 2612.795000] Error string, N

<1>[ 2613.100000] GPIO error, 0xffffffff.

<3>[ 2613.100000] usb reset, speed=3

<3>[ 2613.350000] b device votage OK

<3>[ 2613.350000] connected with host

<3>[ 2613.355000] usb connect

<3>[ 2613.355000] ~~~~~ device connect ~~~~

<3>[ 2613.525000] usb reset, speed=3

<6>[ 2613.615000] adb_release

<3>[ 2613.615000] init: untracked pid 2759 exited

<3>[ 2613.615000] r:0x6rt:0x80v:0x100l:0x40i:0x0

<6>[ 2613.620000] enabling adb

<3>[ 2613.625000] ix_pullup()

<3>[ 2613.630000] ix_pullup: find otg pull up

<1>[ 2613.635000] Error string, N

<3>[ 2613.685000] usb reset, speed=3

<3>[ 2613.820000] r:0x6rt:0x80v:0x100l:0x12i:0x0

<3>[ 2613.825000] r:0x6rt:0x80v:0x200l:0xffi:0x0

<3>[ 2613.830000] r:0x6rt:0x80v:0x303l:0xffi:0x409

<3>[ 2613.835000] r:0x6rt:0x80v:0x300l:0xffi:0x0

<3>[ 2613.840000] r:0x6rt:0x80v:0x302l:0xffi:0x409

<3>[ 2613.845000] r:0x6rt:0x80v:0x100l:0x12i:0x0

<3>[ 2613.850000] r:0x6rt:0x80v:0x200l:0x9i:0x0

<3>[ 2613.850000] r:0x6rt:0x80v:0x200l:0x37i:0x0

<3>[ 2613.855000] __config_setup()

<6>[ 2613.855000] android_usb gadget: high speed config #1: android

<3>[ 2613.855000] udc: ix_ep_enable, ep1

<3>[ 2613.855000] maxpacket:200

<3>[ 2613.855000] DescriptorType 5

<3>[ 2613.855000] write desc to ep1, desc=12000019

<3>[ 2613.855000] udc: ix_ep_enable, ep2

<3>[ 2613.855000] maxpacket:200

<3>[ 2613.855000] DescriptorType 5

<3>[ 2613.855000] write desc to ep2, desc=2000021

<3>[ 2613.855000] #### udc: ix_vbus_draw ####

<3>[ 2613.855000] r:0x6rt:0x80v:0x302l:0x4i:0x409

<3>[ 2613.855000] Can not find queue for ep c0543090

<3>[ 2613.860000] udc: ix_ep_enable, ep3

<3>[ 2613.860000] r:0x6rt:0x80v:0x302l:0x8i:0x409

<3>[ 2613.865000] maxpacket:200

<3>[ 2613.865000] DescriptorType 5

<3>[ 2613.865000] write desc to ep3, desc=32000039

<3>[ 2613.865000] r:0x6rt:0x80v:0x304l:0x4i:0x409

<3>[ 2613.870000] udc: ix_ep_enable, ep4

<3>[ 2613.870000] r:0x6rt:0x80v:0x304l:0x1ai:0x409

<3>[ 2613.875000] maxpacket:200

<3>[ 2613.875000] DescriptorType 5

<3>[ 2613.875000] write desc to ep4, desc=2000041

<3>[ 2613.875000] r:0x6rt:0x80v:0x300l:0x2i:0x0

<3>[ 2613.880000] r:0x6rt:0x80v:0x300l:0x4i:0x0

<3>[ 2613.885000] r:0x6rt:0x80v:0x303l:0x2i:0x409

<3>[ 2613.890000] r:0x6rt:0x80v:0x303l:0x1ai:0x409

<1>[ 2613.940000] GPIO error, 0xffffffff.

<3>[ 2614.450000] ep_disable: ep1

<3>[ 2614.450000] ep_disable: ep2

<3>[ 2614.455000] ix_dequeue: ix_dequeue

<3>[ 2614.455000] ep_disable: ep3

<3>[ 2614.460000] ep_disable: ep4

<3>[ 2614.880000] b device votage OK

<3>[ 2614.880000] connected with host

<3>[ 2614.885000] usb connect

<3>[ 2614.885000] ~~~~~ device connect ~~~~

<3>[ 2615.475000] ix_pullup()

<3>[ 2615.475000] ix_pullup: find otg pull up

<1>[ 2615.480000] Error string, N

<1>[ 2615.785000] GPIO error, 0xffffffff.

<3>[ 2615.785000] usb reset, speed=3

<3>[ 2615.890000] b device votage OK

<3>[ 2615.890000] connected with host

<3>[ 2615.895000] usb connect

<3>[ 2615.895000] ~~~~~ device connect ~~~~

<3>[ 2616.065000] usb reset, speed=3

<3>[ 2616.155000] r:0x6rt:0x80v:0x100l:0x40i:0x0

<3>[ 2616.225000] usb reset, speed=3

<6>[ 2616.300000] adb_open

<3>[ 2616.360000] r:0x6rt:0x80v:0x100l:0x12i:0x0

<3>[ 2616.365000] r:0x6rt:0x80v:0x200l:0xffi:0x0

<3>[ 2616.370000] r:0x6rt:0x80v:0x303l:0xffi:0x409

<3>[ 2616.375000] r:0x6rt:0x80v:0x300l:0xffi:0x0

<3>[ 2616.380000] r:0x6rt:0x80v:0x302l:0xffi:0x409

<3>[ 2616.545000] r:0x6rt:0x80v:0x100l:0x12i:0x0

<3>[ 2616.550000] r:0x6rt:0x80v:0x200l:0x9i:0x0

<3>[ 2616.555000] r:0x6rt:0x80v:0x200l:0x37i:0x0

<3>[ 2616.555000] __config_setup()

<6>[ 2616.555000] android_usb gadget: high speed config #1: android

<3>[ 2616.555000] udc: ix_ep_enable, ep1

<3>[ 2616.555000] maxpacket:200

<3>[ 2616.555000] DescriptorType 5

<3>[ 2616.555000] write desc to ep1, desc=12000019

<3>[ 2616.555000] udc: ix_ep_enable, ep2

<3>[ 2616.555000] maxpacket:200

<3>[ 2616.555000] DescriptorType 5

<3>[ 2616.555000] write desc to ep2, desc=2000021

<3>[ 2616.555000] #### udc: ix_vbus_draw ####

<3>[ 2616.555000] r:0x6rt:0x80v:0x302l:0x4i:0x409

<3>[ 2616.555000] Can not find queue for ep c0543090

<3>[ 2616.560000] udc: ix_ep_enable, ep3

<3>[ 2616.560000] r:0x6rt:0x80v:0x302l:0x8i:0x409

<3>[ 2616.565000] maxpacket:200

<3>[ 2616.565000] DescriptorType 5

<3>[ 2616.565000] write desc to ep3, desc=32000039

<3>[ 2616.570000] r:0x6rt:0x80v:0x304l:0x4i:0x409

<3>[ 2616.575000] udc: ix_ep_enable, ep4

<3>[ 2616.575000] r:0x6rt:0x80v:0x304l:0x1ai:0x409

<3>[ 2616.580000] maxpacket:200

<3>[ 2616.580000] DescriptorType 5

<3>[ 2616.580000] write desc to ep4, desc=2000041

<3>[ 2616.580000] r:0x6rt:0x80v:0x300l:0x2i:0x0

<3>[ 2616.585000] r:0x6rt:0x80v:0x300l:0x4i:0x0

<3>[ 2616.590000] r:0x6rt:0x80v:0x303l:0x2i:0x409

<3>[ 2616.595000] r:0x6rt:0x80v:0x303l:0x1ai:0x409

<3>[ 2616.670000] r:0xfert:0xa1v:0x0l:0x1i:0x1

<3>[ 2617.550000] r:0x6rt:0x80v:0x303l:0x40i:0x409

<7>[ 2620.660000] save exit: isCheckpointed 1

<3>[ 2692.220000] ep_disable: ep1

<3>[ 2692.220000] ep_disable: ep2

<3>[ 2692.220000] udc,in while list

<3>[ 2692.220000] usb suspend

<6>[ 2692.225000] adb_release

<3>[ 2692.230000] ix_dequeue: ix_dequeue

<3>[ 2692.230000] ep_disable: ep3

<3>[ 2692.235000] ep_disable: ep4

<6>[ 2692.255000] adb_open

<3>[ 2692.400000] b device votage OK

<3>[ 2692.400000] connected with host

<3>[ 2692.405000] usb connect

<3>[ 2692.405000] ~~~~~ device connect ~~~~

<3>[ 2692.685000] usb bcsr disconnect

<3>[ 2692.685000] no irq stat detected.

<6>[ 3297.215000] request_suspend_state: sleep (0->3) at 3297226653002 (2011-12-18 00:07:15.907719000 UTC)

<6>[ 3297.220000] imapfb_early_suspend!

<1>[ 3297.330000] Error string, N

<1>[ 3297.330000] Error string, N

<7>[ 3297.395000] save exit: isCheckpointed 1

<6>[ 3297.650000] PM: Syncing filesystems ... done.

<4>[ 3297.670000] Freezing user space processes ... (elapsed 0.01 seconds) done.

<4>[ 3297.690000] Freezing remaining freezable tasks ... (elapsed 0.01 seconds) done.

<4>[ 3297.710000] Suspending console(s) (use no_console_suspend to debug)

<4>[ 3297.725000] Vivante GPU power is  OFF

<6>[ 3297.725000] alarm_suspend(dc3b5200, 2)

<6>[ 3297.725000] rtc alarm set at 1324167045, now 1324166836, rtc delta 0.417001000

<0>[ 3297.725000] Enter ads7846_suspend

<6>[ 3297.725000] iic Suspend hdmi

<1>[ 3297.725000] Current gpio can't be set to be sleep mode!

<1>[ 3297.725000] Current gpio has no sleep mode!

<6>[ 3297.725000] Enter android_bat_suspend

<1>[ 3297.730000] Current gpio can't be set to be sleep mode!

<1>[ 3297.730000] Current gpio has no sleep mode!

<6>[ 3297.730000] Suspend HDMI

<6>[ 3297.730000] imapfb_suspend!

<1>[ 3297.835000] Error string, N

<1>[ 3297.835000] Error string, N

<6>[ 3297.875000] PM: suspend of devices complete after 155.000 msecs

<6>[ 3297.875000] PM: late suspend of devices complete after 0.001 msecs

<7>[ 3297.875000] imapx200_pm_enter(3)

<7>[ 3297.875000] imapx200_sleep_save_phys=0x40557af4

<6>[ 3297.875000] imapx200_sleep_save_phys=0x40557af4

<7>[ 3297.875000] sleep: irq wakeup masks: ffffffff,ffffffff

<6>[ 3297.875000] PM: early resume of devices complete after 0.001 msecs

<6>[ 3297.875000] imapfb_resume!

<1>[ 3297.925000] Error string, N

<1>[ 3297.925000] Error string, N

<3>[ 3298.030000] pwm resume !!

<4>[ 3298.030000] usb usb1: root hub lost power or was reset

<4>[ 3298.110000] usb usb2: root hub lost power or was reset

<6>[ 3298.110000] Resume HDMI

<3>[ 3298.110000] ix_gps_open: GPS node is already opened.

<6>[ 3298.110000] Resume DSP binary from DRAM.

<6>[ 3298.115000] Enter android_bat_resume

<7>[ 3298.115000] FOUND calc 114583, divisor 36

<3>[ 3298.115000] resume port3: mdelay.

<6>[ 3298.120000] wakeup wake lock: alarm

<6>[ 3298.135000] iic Resume hdmi

<1>[ 3298.135000] Current gpio can't be set to be sleep mode!

<1>[ 3298.135000] Current gpio has no sleep mode!

<0>[ 3298.345000] Enter ads7846_resume

<6>[ 3298.525000] alarm_resume(dc3b5200)

<4>[ 3298.525000] Vivante GPU power is ON

<4>[ 3298.525000] func rt5621_resume

<6>[ 3298.530000] PM: resume of devices complete after 659.407 msecs

<4>[ 3298.535000] Restarting tasks ...

<3>[ 3298.540000] b device votage OK

<3>[ 3298.545000] connected with host

<3>[ 3298.545000] usb connect

<3>[ 3298.550000] ~~~~~ device connect ~~~~

<4>[ 3298.570000] done.

<3>[ 3298.715000] usb reset, speed=3

<3>[ 3298.810000] r:0x6rt:0x80v:0x100l:0x40i:0x0

<6>[ 3298.860000] suspend: exit suspend, ret = 0 (2011-12-18 00:46:52.837644001 UTC)

<3>[ 3298.880000] usb reset, speed=3

<3>[ 3299.015000] r:0x6rt:0x80v:0x100l:0x12i:0x0

<3>[ 3299.020000] r:0x6rt:0x80v:0x200l:0xffi:0x0

<3>[ 3299.025000] r:0x6rt:0x80v:0x303l:0xffi:0x409

<3>[ 3299.030000] r:0x6rt:0x80v:0x300l:0xffi:0x0

<3>[ 3299.035000] r:0x6rt:0x80v:0x302l:0xffi:0x409

<3>[ 3299.040000] r:0x6rt:0x80v:0x100l:0x12i:0x0

<3>[ 3299.045000] r:0x6rt:0x80v:0x200l:0x9i:0x0

<3>[ 3299.045000] r:0x6rt:0x80v:0x200l:0x37i:0x0

<3>[ 3299.050000] __config_setup()

<6>[ 3299.050000] android_usb gadget: high speed config #1: android

<3>[ 3299.050000] udc: ix_ep_enable, ep1

<3>[ 3299.050000] maxpacket:200

<3>[ 3299.050000] DescriptorType 5

<3>[ 3299.050000] write desc to ep1, desc=12000019

<3>[ 3299.050000] udc: ix_ep_enable, ep2

<3>[ 3299.050000] maxpacket:200

<3>[ 3299.050000] DescriptorType 5

<3>[ 3299.050000] write desc to ep2, desc=2000021

<3>[ 3299.050000] #### udc: ix_vbus_draw ####

<3>[ 3299.050000] r:0x6rt:0x80v:0x302l:0x4i:0x409

<3>[ 3299.050000] Can not find queue for ep c0543090

<3>[ 3299.055000] udc: ix_ep_enable, ep3

<3>[ 3299.055000] r:0x6rt:0x80v:0x302l:0x8i:0x409

<3>[ 3299.060000] maxpacket:200

<3>[ 3299.060000] DescriptorType 5

<3>[ 3299.060000] write desc to ep3, desc=32000039

<3>[ 3299.065000] r:0x6rt:0x80v:0x304l:0x4i:0x409

<3>[ 3299.070000] udc: ix_ep_enable, ep4

<3>[ 3299.070000] r:0x6rt:0x80v:0x304l:0x1ai:0x409

<3>[ 3299.075000] maxpacket:200

<3>[ 3299.075000] DescriptorType 5

<3>[ 3299.075000] write desc to ep4, desc=2000041

<3>[ 3299.075000] r:0x6rt:0x80v:0x300l:0x2i:0x0

<3>[ 3299.080000] r:0x6rt:0x80v:0x300l:0x4i:0x0

<3>[ 3299.085000] r:0x6rt:0x80v:0x303l:0x2i:0x409

<3>[ 3299.090000] r:0x6rt:0x80v:0x303l:0x1ai:0x409

<3>[ 3299.165000] r:0xfert:0xa1v:0x0l:0x1i:0x1

<3>[ 3299.475000] r:0x6rt:0x80v:0x303l:0x40i:0x409

<6>[ 3300.155000] request_suspend_state: wakeup (3->0) at 3300171724003 (2011-12-18 00:46:54.133422001 UTC)

<6>[ 3300.160000] imapfb_early_resume!

<1>[ 3300.165000] Error string, N

<1>[ 3300.165000] Error string, N

<3>[ 3300.275000] pwm resume !!

<6>[ 3301.085000] request_suspend_state: sleep (0->3) at 3301101724003 (2011-12-18 00:46:55.060741001 UTC)

<6>[ 3301.090000] imapfb_early_suspend!

<1>[ 3301.200000] Error string, N

<1>[ 3301.200000] Error string, N

<7>[ 3301.280000] save exit: isCheckpointed 1

<6>[ 3301.770000] request_suspend_state: wakeup (3->0) at 3301786724003 (2011-12-18 00:46:55.746443001 UTC)

<6>[ 3301.775000] imapfb_early_resume!

<1>[ 3301.775000] Error string, N

<1>[ 3301.780000] Error string, N

<3>[ 3301.885000] pwm resume !!

<6>[ 3309.125000] request_suspend_state: sleep (0->3) at 3309141724003 (2011-12-18 00:47:03.100662001 UTC)

<6>[ 3309.135000] imapfb_early_suspend!

<1>[ 3309.240000] Error string, N

<1>[ 3309.240000] Error string, N

<7>[ 3309.355000] save exit: isCheckpointed 1

<7>[ 3309.390000] save exit: isCheckpointed 1

<3>[ 3319.065000] init: untracked pid 2960 exited

<3>[ 5680.820000] ep_disable: ep1

<3>[ 5680.820000] ep_disable: ep2

<3>[ 5680.820000] udc,in while list

<3>[ 5680.820000] usb suspend

<6>[ 5680.825000] adb_release

<3>[ 5680.825000] ix_dequeue: ix_dequeue

<3>[ 5680.830000] ep_disable: ep3

<3>[ 5680.835000] ep_disable: ep4

<6>[ 5680.835000] adb_open

<7>[ 5680.950000] save exit: isCheckpointed 1

<6>[ 5680.955000] PM: Syncing filesystems ... done.

<4>[ 5680.965000] Freezing user space processes ... (elapsed 0.01 seconds) done.

<4>[ 5680.985000] Freezing remaining freezable tasks ... (elapsed 0.01 seconds) done.

<4>[ 5681.005000] Suspending console(s) (use no_console_suspend to debug)

<4>[ 5681.015000] Vivante GPU power is  OFF

<6>[ 5681.015000] alarm_suspend(dc3b5200, 2)

<6>[ 5681.015000] rtc alarm set at 1324172813, now 1324171595, rtc delta -1.992173001

<0>[ 5681.015000] Enter ads7846_suspend

<6>[ 5681.015000] iic Suspend hdmi

<1>[ 5681.015000] Current gpio can't be set to be sleep mode!

<1>[ 5681.015000] Current gpio has no sleep mode!

<6>[ 5681.015000] Enter android_bat_suspend

<1>[ 5681.020000] Current gpio can't be set to be sleep mode!

<1>[ 5681.020000] Current gpio has no sleep mode!

<6>[ 5681.020000] Suspend HDMI

<6>[ 5681.020000] imapfb_suspend!

<1>[ 5681.125000] Error string, N

<1>[ 5681.125000] Error string, N

<6>[ 5681.165000] PM: suspend of devices complete after 150.000 msecs

<6>[ 5681.165000] PM: late suspend of devices complete after 0.001 msecs

<7>[ 5681.165000] imapx200_pm_enter(3)

<7>[ 5681.165000] imapx200_sleep_save_phys=0x40557af4

<6>[ 5681.165000] imapx200_sleep_save_phys=0x40557af4

<7>[ 5681.165000] sleep: irq wakeup masks: ffffffff,ffffffff

<6>[ 5681.165000] PM: early resume of devices complete after 0.001 msecs

<6>[ 5681.165000] imapfb_resume!

<1>[ 5681.215000] Error string, N

<1>[ 5681.215000] Error string, N

<6>[ 5681.255000] wakeup wake lock: event0-2166

<3>[ 5681.320000] pwm resume !!

<4>[ 5681.320000] usb usb1: root hub lost power or was reset

<4>[ 5681.400000] usb usb2: root hub lost power or was reset

<6>[ 5681.400000] Resume HDMI

<3>[ 5681.400000] ix_gps_open: GPS node is already opened.

<6>[ 5681.400000] Resume DSP binary from DRAM.

<6>[ 5681.405000] Enter android_bat_resume

<7>[ 5681.405000] FOUND calc 114583, divisor 36

<3>[ 5681.405000] resume port3: mdelay.

<6>[ 5681.425000] iic Resume hdmi

<1>[ 5681.425000] Current gpio can't be set to be sleep mode!

<1>[ 5681.425000] Current gpio has no sleep mode!

<0>[ 5681.635000] Enter ads7846_resume

<6>[ 5681.810000] alarm_resume(dc3b5200)

<4>[ 5681.810000] Vivante GPU power is ON

<4>[ 5681.810000] func rt5621_resume

<6>[ 5681.815000] PM: resume of devices complete after 654.396 msecs

<4>[ 5681.820000] Restarting tasks ...

<3>[ 5681.825000] b device votage OK

<3>[ 5681.830000] connected with host

<3>[ 5681.830000] usb connect

<3>[ 5681.835000] ~~~~~ device connect ~~~~

<6>[ 5681.860000] request_suspend_state: wakeup (3->0) at 5681881789003 (2011-12-18 03:17:35.553708000 UTC)

<4>[ 5681.870000] done.

<3>[ 5682.000000] usb reset, speed=3

<3>[ 5682.090000] r:0x6rt:0x80v:0x100l:0x40i:0x0

<6>[ 5682.140000] suspend: exit suspend, ret = 0 (2011-12-18 03:17:35.831070000 UTC)

<6>[ 5682.145000] imapfb_early_resume!

<1>[ 5682.150000] Error string, N

<1>[ 5682.150000] Error string, N

<3>[ 5682.160000] usb reset, speed=3

<3>[ 5682.260000] pwm resume !!

<3>[ 5682.295000] r:0x6rt:0x80v:0x100l:0x12i:0x0

<3>[ 5682.300000] r:0x6rt:0x80v:0x200l:0xffi:0x0

<3>[ 5682.305000] r:0x6rt:0x80v:0x303l:0xffi:0x409

<3>[ 5682.310000] r:0x6rt:0x80v:0x300l:0xffi:0x0

<3>[ 5682.315000] r:0x6rt:0x80v:0x302l:0xffi:0x409

<3>[ 5682.320000] r:0x6rt:0x80v:0x100l:0x12i:0x0

<3>[ 5682.325000] r:0x6rt:0x80v:0x200l:0x9i:0x0

<3>[ 5682.330000] r:0x6rt:0x80v:0x200l:0x37i:0x0

<3>[ 5682.330000] __config_setup()

<6>[ 5682.330000] android_usb gadget: high speed config #1: android

<3>[ 5682.330000] udc: ix_ep_enable, ep1

<3>[ 5682.330000] maxpacket:200

<3>[ 5682.330000] DescriptorType 5

<3>[ 5682.330000] write desc to ep1, desc=12000019

<3>[ 5682.330000] udc: ix_ep_enable, ep2

<3>[ 5682.330000] maxpacket:200

<3>[ 5682.330000] DescriptorType 5

<3>[ 5682.330000] write desc to ep2, desc=2000021

<3>[ 5682.330000] #### udc: ix_vbus_draw ####

<3>[ 5682.330000] r:0x6rt:0x80v:0x302l:0x4i:0x409

<3>[ 5682.330000] Can not find queue for ep c0543090

<3>[ 5682.335000] udc: ix_ep_enable, ep3

<3>[ 5682.335000] r:0x6rt:0x80v:0x302l:0x8i:0x409

<3>[ 5682.340000] maxpacket:200

<3>[ 5682.340000] DescriptorType 5

<3>[ 5682.340000] write desc to ep3, desc=32000039

<3>[ 5682.345000] r:0x6rt:0x80v:0x304l:0x4i:0x409

<3>[ 5682.350000] udc: ix_ep_enable, ep4

<3>[ 5682.350000] r:0x6rt:0x80v:0x304l:0x1ai:0x409

<3>[ 5682.355000] maxpacket:200

<3>[ 5682.355000] DescriptorType 5

<3>[ 5682.355000] write desc to ep4, desc=2000041

<3>[ 5682.355000] r:0x6rt:0x80v:0x300l:0x2i:0x0

<3>[ 5682.365000] r:0x6rt:0x80v:0x300l:0x4i:0x0

<3>[ 5682.365000] r:0x6rt:0x80v:0x303l:0x2i:0x409

<3>[ 5682.370000] r:0x6rt:0x80v:0x303l:0x1ai:0x409

<3>[ 5682.445000] r:0xfert:0xa1v:0x0l:0x1i:0x1

<6>[ 5682.495000] request_suspend_state: sleep (0->3) at 5682516789003 (2011-12-18 03:17:36.185797000 UTC)

<6>[ 5682.500000] imapfb_early_suspend!

<1>[ 5682.610000] Error string, N

<1>[ 5682.610000] Error string, N

<7>[ 5682.710000] save exit: isCheckpointed 1

cfrockit

cfrockit

Senior Member
Dec 26, 2010
627
191
Why so many "Bad block" entries?

Might want to dump mtd2 "resv" partition for inspection of recovery image if it exists.

Sent from my MiniTab using Android Tablet Forum

Last edited:
J

JSHawk26

Member
Dec 19, 2011
1
0
My girlfriend just bought this tablet thinking that it was a good deal. I've been thoroughly frustrated with and annoyed by it, in my attempt to make it at least semi-functional. Anyone find any firmware upgrades? I still can't get rid of a lot of the Chinese characters in settings. Suggestions would be PRAISED AND WORSHIPED. Also, anyone know return information on this crap? Thanks,

JHawK

You must log in or register to reply here.

Similar threads

N
Factory reset on "superpad" i7 7"
Replies
11
Views
28K
Tomski
T
synaptyc
TecPad S701 7 inch Touch Screen Tablet PC Android 2.2
Replies
8
Views
11K
Luanatjl
L
C
Looking for a tablet alarm clock/ip cam viewer for dirt cheap, help!
Replies
1
Views
3K
coersum
C
J
question regarding buy and info about 7 Inch Superpad i7
Replies
3
Views
3K
jenova
J
cfrockit
AIRIS OnePAD 700 7" iMAPx210 supported in Spain
2 3
Replies
35
Views
39K
siz
siz
Top
